The SINUS PLUS 1500 24V voltage converter is used to supply electrical equipment requiring 230V AC voltage from batteries and car installations with 12V or 24V DC voltage. The device can also be used as an emergency power source for devices requiring continuous power supply, such as furnaces and CO pumps.

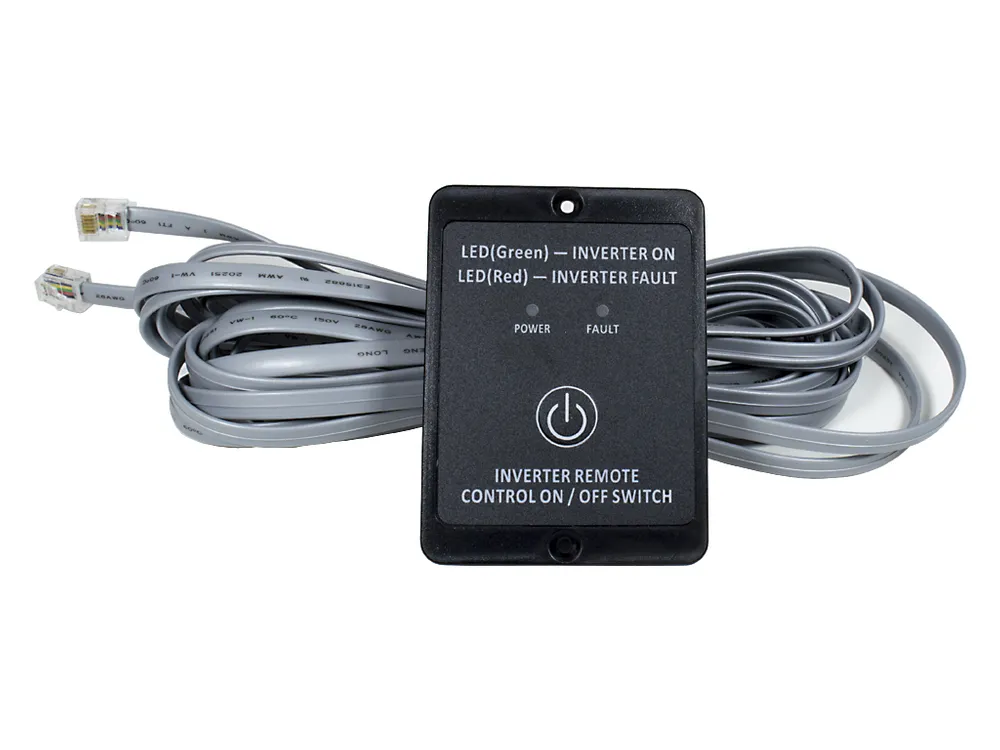

The PLUS version additionally offers a control panel with cable, which can be connected to the inverter and managed remotely using the button on the panel. There are also 2 LEDs on the panel, which inform the user about the inverter status (ON/OFF, error)
The distinguishing feature of sinus inverters from classic AC/DC straight inverters is the generation at the output sine waveform alternating voltage, identical to that of the power supply. Thanks to the sine waveform, the inverter enables the power supply of equipment equipped with electric motors and transformers, such as power tools, pumps and low-power household appliances.
|Total power||1500 W|
|Rated power||1000 W|
|Input voltage range||21 - 28 VDC|
|Output voltage range||220 - 240 VAC|
|Output voltage frequency||50 Hz (+- 5 %)|
|Unloaded current||300 mA|
|Efficiency||>= 92 %|
|Protection against under-voltage||Beep, red light, automatic shutdown
Yes, at a load greater than 120 % the device shall automatically switch off.
