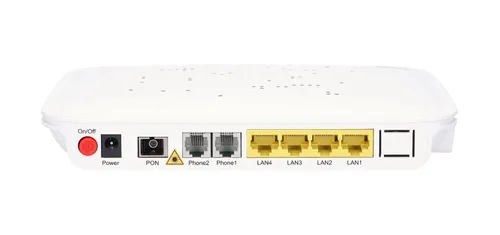

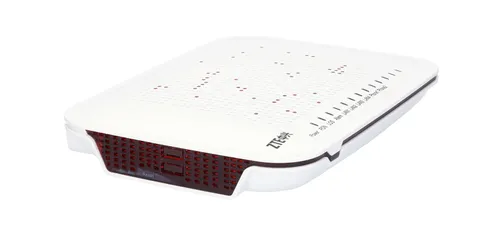

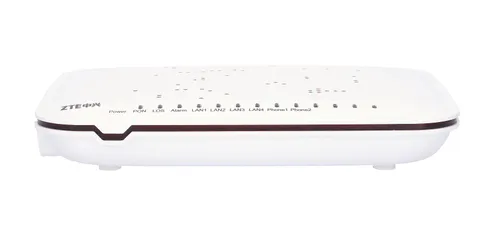

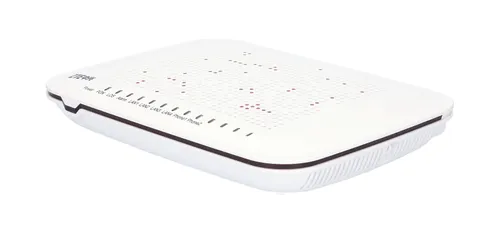

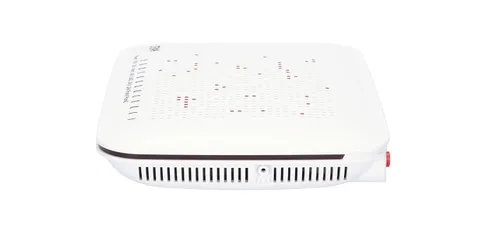

The F620 ONU V3 terminal will meet the task of providing a broadband Internet network with very high speed and efficiency in the use of FTTH. It is perfect for voice (VoIP), video streaming (IPTV) and Internet browsing applications. Additionally F620 V3 allows you to connect 2 phones via RJ-11 connectors.
Thanks to the use of two connectors type RJ-11 it will be possible to connect two telephone devices at the same time, which will separate the private line from the company one.
With Gigabit Ethernet capabilities, each of the devices connected to one of the 4 RJ-45 ports in ZTE F620 V3 will be able to maintain a fast connection with a transfer rate reaching 1 Gb/s.
The GPON interface will provide the possibility of using a fiber optic link with a maximum speed over a distance of up to 20 km.
|Optical port||1 x GPON interface (SC / APC)|
|Transmission range||20 km|
|Transmission speed||Download: 2,488 Gb/s
Transmission: 1,244 Gb/s
|User interface||4 x 10/100/1000Base-T, half/full duplex, automatic MDI/MDIX, automatic negotiation
2 x POTS (VoIP) interface
|Wavelength||Reception: 1480-1500 nm
Transmission: 1290-1330 nm
|Receiver sensitivity||-28 dBm|
|Transmitter optical power||0.5 to 5 dBm|
|Dimensions||180 x 38 x 127 mm|
|Working conditions||Temperature: 0°C to 40°C
Humidity: 5% to 40%
|Power supply||12 V DC|
|Installation||Standing / To the wall|
|Spare battery||3 AH / 6 AH (optional)|
|GPON||8 x T-CONT
32 x GEM port
|MAC address plate||1K|
|Functions L3||DHCP Client/Server
|Multicast||IGMP v1/v2 Snooping/Proxy
MLD v1 Snooping
|Multicast group per user port||256|
|QoS||Flow classification based on physical movement
VLAN priority level
Support for Gigabit Ethernet for F620 V3 means that one gigabit Ethernet port supports data transfer rates up to 1 Gb/s.
ZTE F620 V3 supports Fast Ethernet on three Ethernet ports and the maximum data transfer rate is 100 Mb/s.
