The Powerline Zyxel PLA5405 adapter will allow you to effectively and without loss of quality increase the range of your home network - at speeds up to 1300 Mb/s.
The PLA5405 adapter is very easy to configure and MIMO technology ensures stable operation - even with many devices in the network.
The network can work much better with the PLA5405 adapter. It eliminates long media caching time. 4K video streaming and online games will run smoothly. The built-in Gigabit Ethernet socket will provide enormous data transfer speeds.

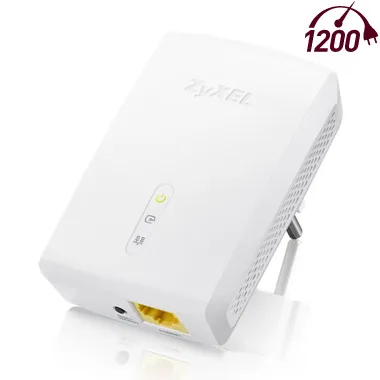

The Zyxel PLA5405 adapter has been made in a compact, modern style to suit any interior.
The LED LEDs on the front of the device will indicate how the network works and with what quality the connection with the second adapter has been established. To connect these devices it is enough to press the encryption button on both of them.
|Standards||Compatible with HomePlug AV2
IEEE 1901 and HomePlug AV standards
|Transmission speed||Transmission: up to 1300 Mb/s
Reception: up to 1300 Mbps
|Access methods||CSMA/CD channel access diagrams|
|Home-Plug modulation||Modulation of the OFDM symbol
Carrier modulation schemes QPSK, BPSK, ROBO
|Reach||Maximum range up to 300 metres - via an electrical line
|Safeguards||128-bit AES encryption|
|Quality of Service (QoS)||Support up to level 4 of QoS|
|Frequency band||2 MHz to 86 MHz|
|System requirements||Ethernet: RJ-45
Operating System: Microsoft Windows XP/Vista/8
|Interfaces||1 x port 10/100/1000 Mb/s RJ-45 with automatic MDI/MDIX support
-Powerline connection quality: green (best), orange (great), red (good)
|Power supply||100-240 V AC, 50/60 Hz|
|Current consumption||Up to 4W|
|Dimensions of the device||81 x 55.8 x 27.9 mm (3.19 x 2.20 x 1.10")|
|Packaging dimensions||155 x 135 x 75 mm (6.10 x 5.31 x 2.95")|
|Weight||118 g (0.26 lb)
391 g (0.86 lb) per package
|Package contents||2 x Powerline Ethernet adapter
2 x Ethernet cable
Quick Start Guide
|Working conditions||Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (non-condensing)
|Storage conditions||The temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95% (non-condensing)
|Certificates||Security: CE-LVD, BSMI
EMC: CE, FCC, ICES, BSMI
To configure Zyxel PLA5405 3 steps are enough:
