Zyxel PLA5456 Twin Pack | Powerline | 2x RJ45 1000Mb/s, 1x Powe
Zyxel PLA5456 Twin Pack | Powerline | 2x RJ45 1000Mb/s, 1x Power socket

Zyxel PLA5456 Twin Pack | Powerline | 2x RJ45 1000Mb/s, 1x Power socket

CODE: C1423232 / EAN: 4718937588305
90,30 GBP with VAT
Added to cart
-
+
PCS
AVAILABILITY:
local_shipping SHIPPING: 24h
Number of LAN ports: 2x 10/100/1000BaseTX (RJ45)
Throughput through the electric network: 1800Mb/s
more SHOW MORE PARAMETERS

ABOUT PRODUCT

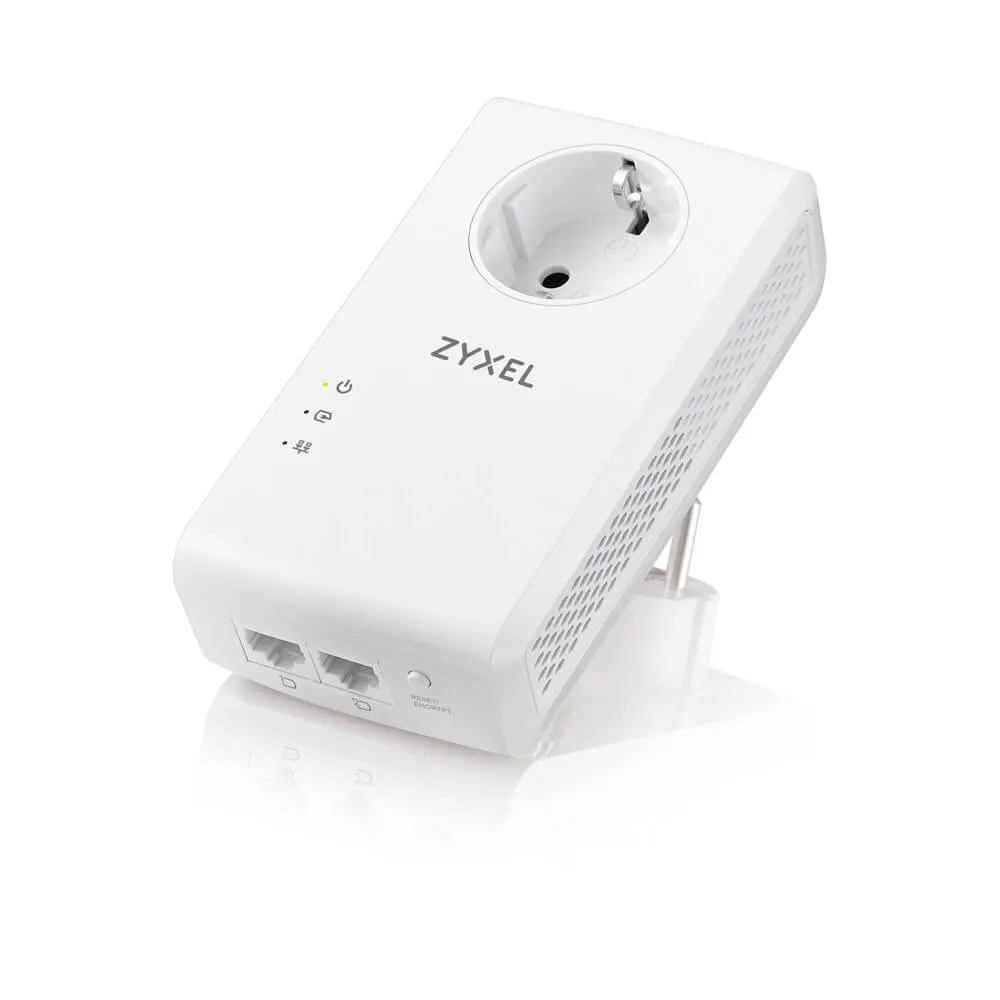

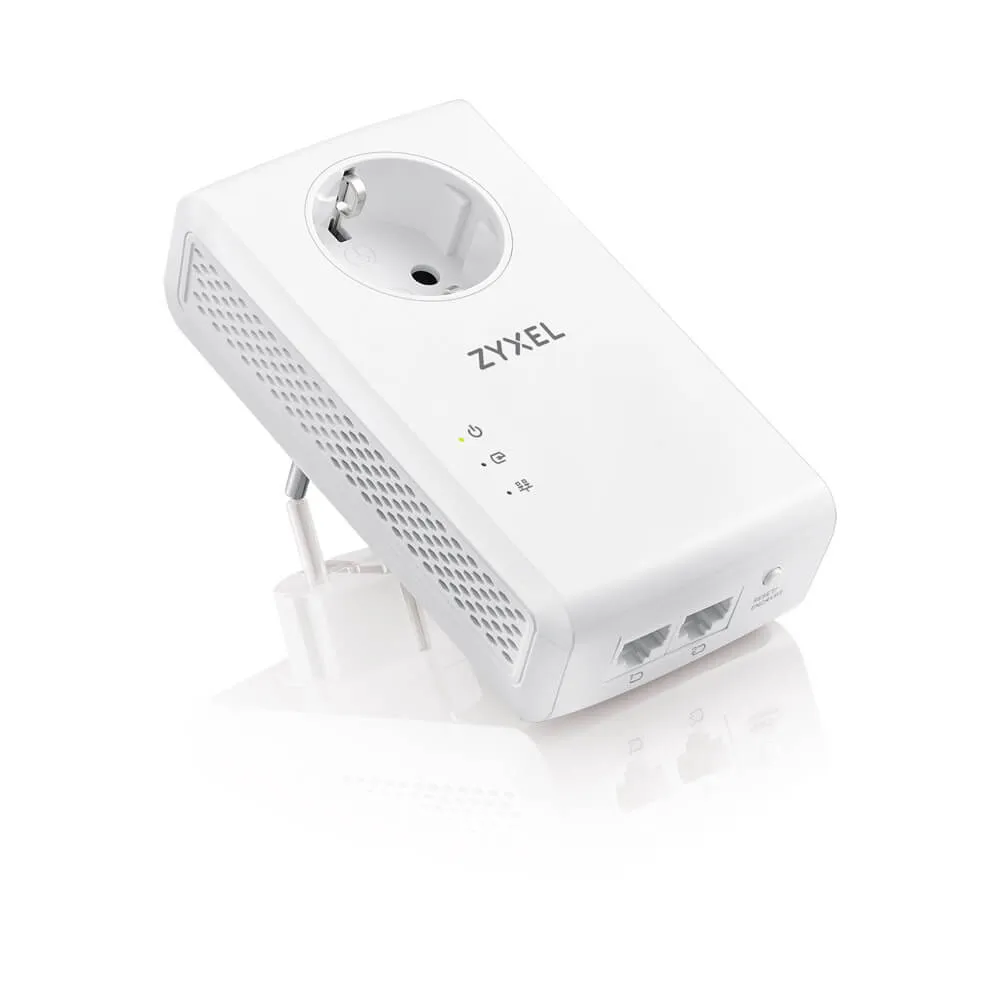

Zyxel PLA5456 - Gigabit Powerline adapter

The PLA5456 adapter allows you to connect devices that require high data throughput, and thanks to the performance of HomePlug AV2 to 1800 Mb/s it provides an effective connection, suitable for video streaming in 4K quality or online games.

Communication through an electrical socket

Fast data transfer in the PLA5456 adapter can be easily achieved by connecting one of the adapters to a router or gateway connected to the Internet and the other to devices to be connected with HomePlug AV2 technology. The adapters have Gigabit Ethernet connectors to create a complete cable network.

For demanding

Zyxel PLA5456 with HomePlug AV2 and MIMO technologies provides the efficiency of direct connection to the router, while increasing the range of connection over the electrical network, even on two floors. Applications such as radio, movie and video Netflix 4K streams will therefore not be a problem.

Easy to set up

The PLA5456 adapter, along with Plug-and-Play technology, is easy to install even for non-advanced users. Just plug the adapters into electrical sockets and then use the sync button on both of them to get a 128-bit AES encrypted connection.

Convenience

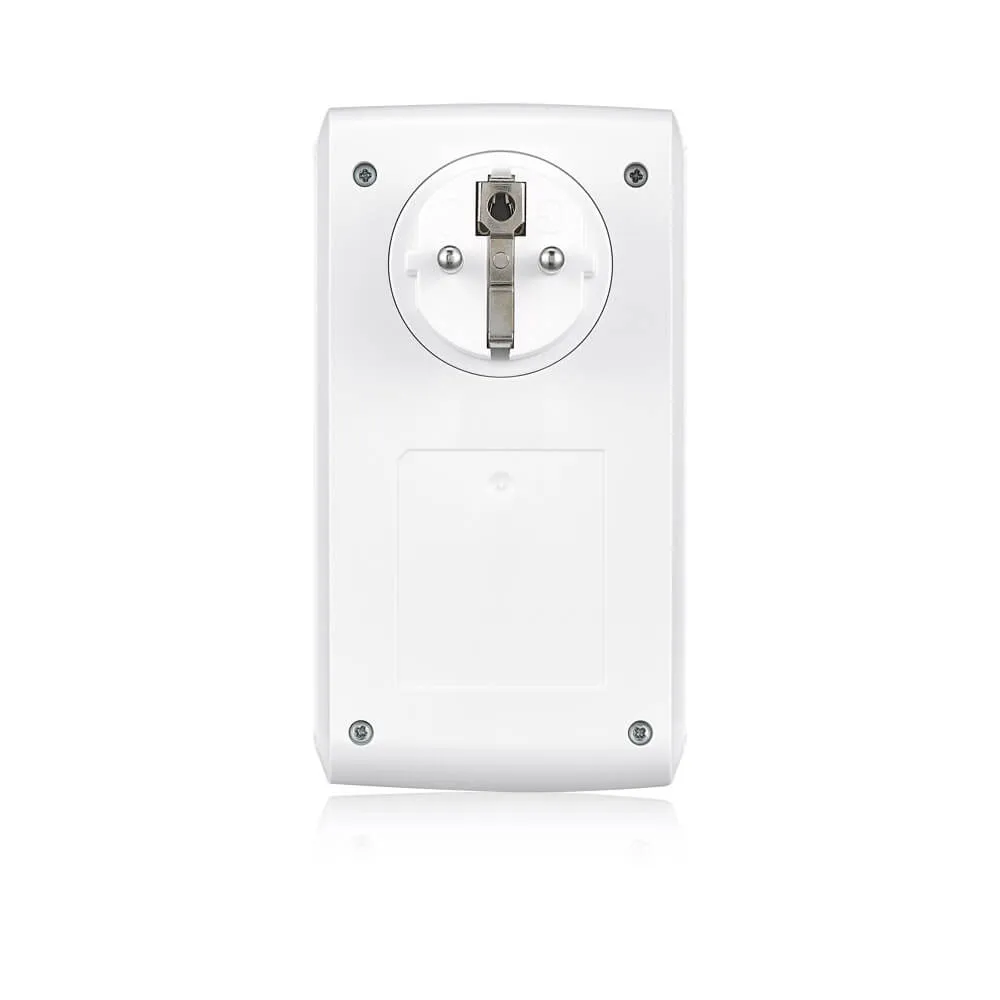

Zyxel PLA5456 has been designed in such a way that it does not block the electrical outlet and allows you to connect another device to yourself. The built-in filter ensures high quality of the network and protects against interference from other electrical devices.

Zyxel ONE Connect

Thanks to Zyxel ONE Connect it is possible to detect network devices in ONE Connect application on mobile devices.

SPECIFICATION

Features / filters
Number of LAN ports 2x 10/100/1000BaseTX (RJ45)
Throughput through the electric network 1800Mb/s

System specification
Standards Compatible with HomePlug AV2
IEEE 1901 and HomePlug AV standards
Transmission speed Transmission: up to 1800 Mb/s
Reception: up to 1800 Mbps
Access methods CSMA/CD channel access diagrams
Home-Plug modulation Modulation of the OFDM symbol
QAM 4096/1024/256/64/16
Carrier modulation schemes QPSK, BPSK, ROBO
Reach Maximum range up to 300 metres through an electrical line
Safeguards 128-bit AES encryption
Quality of Service (QoS) Support up to level 4 QoS
Frequency band 2 MHz to 86 MHz
IGMP IGMP v1/v2/v3
System requirements Ethernet: RJ-45
Operating System: Microsoft Windows XP/Vista/8
Hardware specification
Interfaces 2 x port 10/100/1000 Mb/s RJ-45 with automatic MDI/MDIX support

LEDs:
- Powerline connection quality: green (best), orange (great), red (good)
- Ethernet connection/activity
Buttons Encryption/reset
Power supply 100-240 V AC, 50/60 Hz
Current consumption Up to 6 W
Type of socket EU:
- Type F (CEE 7/4)/type F (CEE 7/4)
- maximum power rating: 16 A, 250 V~
- DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU

UK:
- Type G (BS 1363)/type G (BS 1363)
- Maximum power rating: 13 A 250 V~
- UK, CY, HK

US:
- Type B (NEMA 5-15)/type B (NEMA 5/15)
- Maximum power rating: 15 A 120 V~

CH:
- type J CEE 7/16 / type J CEE 7/16
- Maximum power rating: 10 A 250 V
Physical specification
Dimensions of the device 133.5 x 71.1 x 38.6 mm (5.25 x 2.79 x 1.51")
Packaging dimensions 231 x 185 x 95 mm (9.09 x 7.28 x 3.74")
Weight 230 g (0.5 lb)
788 g (1.71 lb) in pack with 2 adapters
Package contents 2 x Powerline Ethernet adapter
2 x Ethernet cable
Quick Start Guide
Guarantee card
Environmental specification
Working conditions Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90%, non-condensing
Storage conditions The temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 10% to 95%, non-condensing
Certificates Security: CE-LVD, BSMI
EMC: CE, FCC, ICES, BSMI

SUPPORT

Product registration on the manufacturer's website

Downloads:

Operating instructions Download

FAQ

How to configure the Zyxel PLA5456 Powerline adapter?

To configure Zyxel PLA5456 3 steps are enough:

  1. Connect the adapter to the socket and the router.
  2. Plugging a second adapter into an outlet in another part of the building.
  3. Connecting the adapters by using the encryption button, so the network will be additionally secured.

How does HomePlug AV2 work?

HomePlug technology allows you to extend your network coverage at full capacity, eliminating the need for a less stable wireless connection or additional cables.

What does MIMO technology give HomePlug?

The powerline Zyxel PLA5456 technology MIMO used in the powerline adapter allows for automatic detection of the best connection through the electrical network with one of the available cables.
