Extralink SC/UPC | Pigtail set | Single mode, 900um, G.652D, 1,5m, 12 pcs, 12 colours
CODE: EX.10123 / EAN: 5903148910123
Contact
Account
Favorite
Cart

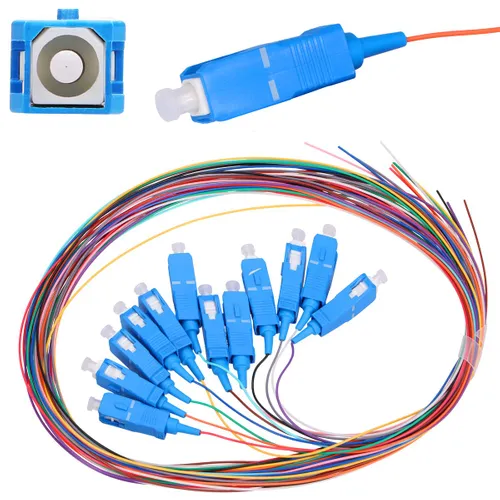

Pigtail Extralink with SC/UPC connector is made on a single-mode G.652D fiber, which is dedicated for FTTx technology. This fiber is characterized by reduced bending radius, without increasing attenuation. This is a very important feature during the construction of FTTx networks due to the large number of changes of optical line direction and because of the small size of cabinets and distribution boxes. Pigtail is used in client cable terminations in the customer's sockets and in end switchgear element.
| Features / filters | |
| Fiber standard | G.652.D |
| Length | 1.5m |
| Pigtail / splitter connector | SC/UPC |
| Cable diameter | 0.9 |
| Cable length | 1.5 |
| Cable type | FTTH |
| Certification | CE, RoHs |
| Connector 1 | SC/UPC |
| Connector 1 gender | Male |
| Connector 2 | No |
| Connector 2 gender | No |
| Connector material | Ceramic |
| Fiber mode structure | Single-mode |
| Fibre optic type | G.652D |
| Insertion loss | 0.15 |
| Jacket material | Polyvinyl chloride (PVC) |
| Operating temperature (T-T) | -40 - 85 |
| Plug and Play | Yes |
| Product colour | Multicolour |
| Quantity per pack | 12 |
| Return loss | 60 |
| Basic parameters | |
| Minimum bending radius | 10 mm |
| Random average IL attenuation | 0.15 dB |
| Reflectance RL APC | >60 dB |
| Fibre strength | >9 N |
| Operating temperature | -40 ~ +85 °C |
| Fibre diameter | 0.9mm |
| Coating | PVC |
