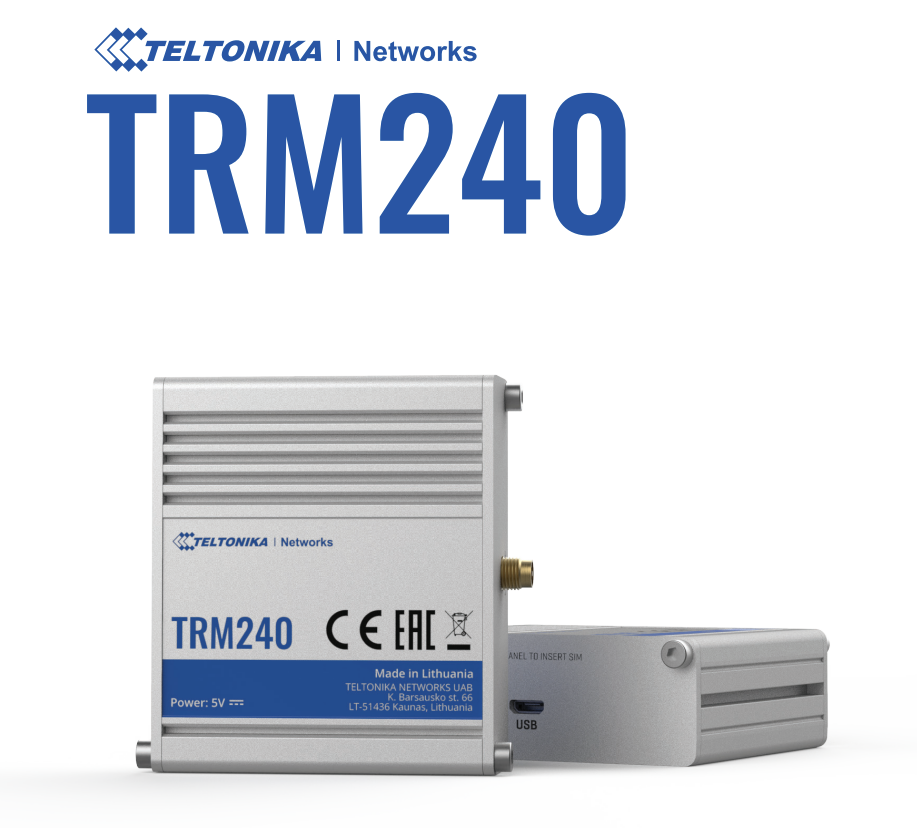

Teltonika's TRM240 industrial LTE Cat 1 cellular modem with rugged aluminum housing is a compact and easy-to-use connectivity device that can provide cellular functions to equipment in all market segments.
Teltonika's TRM240 is backward-compatible with 3G and 2G, so it is the optimal choice when it comes to expanding large-scale connectivity in industrial or public infrastructure. It offers length and stability of operation and low power consumption, important for IIoT projects.
The TRM240 is equipped with a USB interface for power and communication.
| Features / filters | |
| Antenna type | Internal |
| Certification | CE, EAC |
| Depth | 64.5 |
| Height | 25 |
| LED indicators | Yes |
| Manual | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Product colour | Aluminium, Blue |
| Quick start guide | Yes |
| Supported protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
| USB connector type | Micro-USB |
| USB ports quantity | 1 |
| Weight | 131 |
| Width | 74.5 |
| Technical data | |
| Mobile network | LTE (Cat1) / 3G / 2G |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA |
| Operating voltage | 5V - power supply via microUSB |
| Energy consumption | 3.2 W Max |
| Configuration interface | microUSB |
| LED indicators | Power, network and LTE status LEDs |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Housing material | Aluminum housing |
| Degree of protection | IP30 |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
| Weight | 131 g |
| Software | |
| Management software | Windows Connection Manager (NDIS driver) |
| Serial USB driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x |
| RIL controller | Android 4.x/5.x/6.x/7.x/8.x |
| NDIS controller | Windows 7/8/8.1/10 |
| Gobinet controller | Linux 2.6/3.x/4.1~4.14 |
| qmi wwan driver for Linux | 3.x (3.4 or later)/4.1~4.14 |
| Protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
| Interfaces | |
| Management interface | AT commands (3GPP TS27.007, 3GPP TS27.005) Hayes AT command set Enhanced AT commands |
