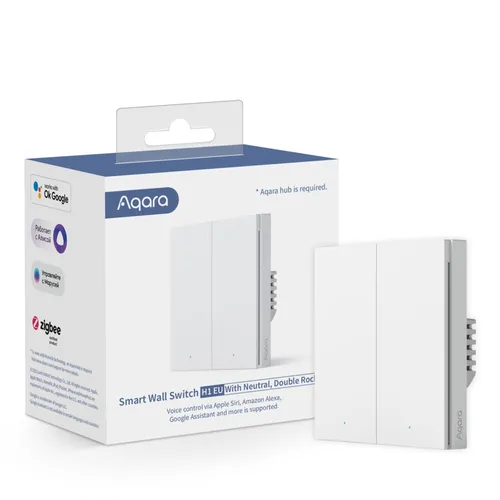

Aqara Wall Double Switch H1 | Switch module | with Neutral, Zigbee 3.0, EU, WS-EUK04






The upgraded Aqara Wall Double Switch H1 smart switch is mounted in place of a standard round outlet. The "neutral wire" version of the switch requires a connection to the neutral wire and offers enhanced functionality: electricity consumption statistics, status memory and overload protection.
Now it's really easy to make all the lighting in your home smart. Simply replace conventional switches with Aqara switches and control your lighting remotely using the Aqara Home app or with automated scripts. The switch can switch loads up to 8 Amps.
Features / filters | |
AC input frequency | 50/60 |
Buttons quantity | 2 |
Control type | Tilt |
Depth | 37.5 |
Easy to install | Yes |
Height | 85.8 |
Housing material | Polycarbonate (PC) |
Illuminated on/off switch | Yes |
Installation type | Screws |
Instruction sheet | Yes |
Learn button | Yes |
LED colour | Blue |
LED indicators | Stand-by, Status |
Mounting type | Wall |
On/off switch | Yes |
Operating temperature (T-T) | 0 - 40 |
Power source | AC |
Product colour | White |
Quantity per pack | 1 |
Rated current | 8 |
Storage temperature (T-T) | 0 - 95 |
Suitable for indoor use | Yes |
Suitable for outdoor use | No |
Width | 86 |
Wireless technology | ZigBee |
Basic general data | |
Brand | Xiaomi |
Manufacturer | Aqara |
Model | Wall Double Switch H1 |
Model code | WS-EUK04 |
Type | Switch with Neutral |
Colour | White |
Dimensions | 86 x 86 x 42.8 mm |
Communication protocol | Zigbee 3.0 |
Supply voltage | 100 - 250VAC, 50/60 Hz |
Minimum / maximum load | 3W / 2000W |
Operating temperature | 0°C... 40°C |
Operating humidity | 5 - 95% RH |
