![Cambium CNPILOT E400 | Access point | AC MIMO, 2,4GHz, 5GHz, 1x RJ45 1000Mb/s Ilość portów LAN1x [10/100/1000M (RJ45)]](https://www.batna24.com/img2/500/292811_2.webp?20989284221)
Access Point 802.11ac dual band AP for indoor use is an inexpensive high-end solution for schools, indoor public spaces, shopping malls, hotels, resorts, cafes, multi-apartment units (MDUs) or any other place that requires a reliable and high quality wireless internet connection.

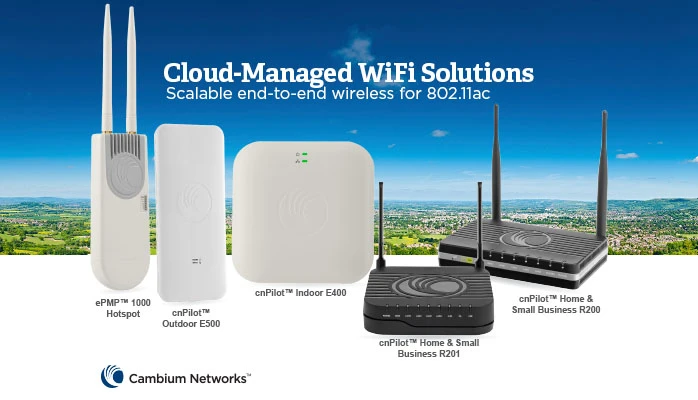

The use of multiple Cambium Network cnPilot E400 devices for indoor use in combination with the cnPilot E500 for outdoor use offers a convenient way to extend Wi-Fi coverage without the need for cables.
The maximum transmitting power of E400 is 25 dB. The device is DFS certified to use additional, proprietary 5 GHz channels, offering greater flexibility than ever before in range and capacity. Bandwidth management through "Airtime Fairness" improves performance with automatic channel scanning (ACS), higher speed client devices and band steering. All these options make your network adapt to the dynamics of changing client device behavior.
Earn on Wi-Fi. Controller-driven guest access supports welcome hosting with social login support, thus providing valuable demographic data. The presented Access Point E400 thanks to its functions and the possibility to create vouchers with limited data and time vouchers for users is ideal for hotels, cafes, campsites or offices.
Cambium CnPilot E400 supports roaming for up to 1000 customers without interference and without the need for a network controller! Hotspot portals on the server offer 'controller-less simplicity'.
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Operating frequency | Dual Band (2.4GHz, 5GHz) |
| Wireless network standards | IEEE 802.11ac |
| Type of device power supply | PoE 802.3af/at |
| TECHNICAL SPECIFICATION | |
| Stream | 2x2 MIMO |
| Simultaneous customers | 256 |
| Type | Dual-band 2.4 GHz & 5 GHz 802.11ac Indoor APs |
| Maximum data rate | +1.167 Gpbs |
| Reach | 180 m (650 Ft) |
| SSID | 16 SSIDs on 2 radios |
| Antenna gain | Omni, integrated, 5 dBi gain |
| Polarisation | Double |
| Antenna range | Omni (360°) |
| Multi-Hop Mesh | Yes. Supported on AP Indoor & Outdoor Mesh auto-recovery service |
| Ethernet ports | One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps) |
| Blockade | Kensington keyhole |
| Power supply | 802.3af standard injector (included) or PoE injector |
| Power consumption | 13 W (max.) |
| Dimensions (CM) | 18 cm x 18 cm x 3 cm |
| Weight | 350 g |
| Temperature | 0°C to 50°C |
| Certificates | fcc 80211ac, CE UL2043 Plenum rated fcc 80211ac EN 60601-1-2 (Medical EMC) |
| Max. power TX | 25 dBm |
| Controller mode | Autonomous Controller-less cnMaestro Cloud Managed cnMaestro On-premise |
| Secure WLAN | WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames) |
| WI-FI FUNCTIONS | |
| Captive Portal | cnMaestro Controller Stand-alone AP based 3rd party hotspot redirection DNS login |
| Hotspot portals 2.0/Passpoint | Yes |
| Authentication | Secure Web page, RADIUS based 802.1x including EAP-SIM/AKA EAP-PEAP, EAP-TTLS, and EAP-TLS MAC authentication (local database or external RADIUS server) |
| Calculation | Yeah. RADIUS operation. |
| SSID Schedule | Enable SSID ONOFF in day/week mode |
| Guest access | Yes. Includes 'Active Directory' support. |
| VLAN | Dynamic VLAN assignment from RADIUS server. VLAN to SSID (per user) |
| Limitation of data | Limiting the speed of customer traffic based on the SSID |
| QoS for subscribers | WMM |
| Customer isolation | Yes |
| Controller-Less Fast Roaming | Yes. 802.11r, Opportunistic Key Caching supports, improved roaming |
| Airtime Fairness | Yes |
| ACS: automatic channel selection | Yes, set at the beginning or run periodically |
| NAT | Yes |
| System dam | Yes |
| Bandwidth management | Yes |
| ACL, DNS-ACL | Yes. L2, L3 or DNS-based access control |
| DHCP server | Yes |
| Tunnelling | L2TP L2oGRE PPPoE |
| Tools | Packet capture Wireless Sniffer IP connectivity Tec support Wi-Fi analyzer |
| Services | NTP Server Configuration Syslog servers SNMP traps support DNS proxies Ssid onoff |
| APIs | API presence location |
| Certificates | FCC, ETSI, CE EN 60601-1-2 (medical EMC) UL2043 Plenum rated |
| WI-FI cnMAESTRO CONTROLER | |
| Cloud & On-Premises | Available in the cloud or for download as a VMware® image (On-premises) |
| General Manager | Management of cnPilot and ePMP and PMP 450 |
| Problem-solving | Single screen, wireless preview, shows Wireless backhaul, AP and clients |
| Monitoring | In-depth monitoring, good visibility, alarms and event management - critical/important/less important, statistics, graphics, tables Alarm traffic light display |
| Monitoring of key statistics | 7-day |
| Portal Hosting | Segmentation by SSID |
| Vouchers | Guest access portals with coupons for 1000 client devices |
| Social logins | Facebook, Google |
| Grouping | Group sets up access points for convenient management |
| Customer insight | Shows the history of the client |
| Many admins | A lot on account |
| Software update | Multiple Wi-Fi devices can be updated at the same time |
| DeviceInventory | Inventory tracking andreporting |
| Frictionless On-Boarding | Secure large scale bulk onboarding Zero touch bulk configuration and provisioning |

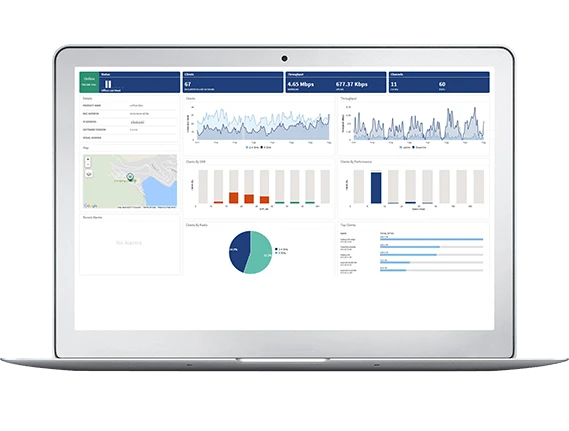

Cambium Networks offers the cnMaestro management system in three configurations. Each configuration has the same user interface (UI) and the same features.
Log in to the cnPilot Wi-Fi administration panel. Go to the Configure-WLAN tab to configure hotspot networks. Then go to Basic tab to configure and enable SSID, and then go to Radius Server tab to configure the radio server.
Select "Configure >> WLAN >> Radio" and select "2.4 GHz and 5 GHz". Select "Configure >> WLAN>>Band Steering" and select "Normal" mode, it will be disabled by default. Select "Configure >> WLAN>>Band Steering" and select "Aggressive" mode, it will be disabled by default.
