Cambium cnWave Universal Pole Mount Bracket | Mounting bracket | for 1-3" diameter poles, C000000L137A

CODE: C000000L137A

Cambium cnWave Universal Pole Mount Bracket | Mounting bracket | for 1-3" diameter poles, C000000L137A

CODE: C000000L137A
27,56 GBP without VAT (net)
Show more parameters

About product

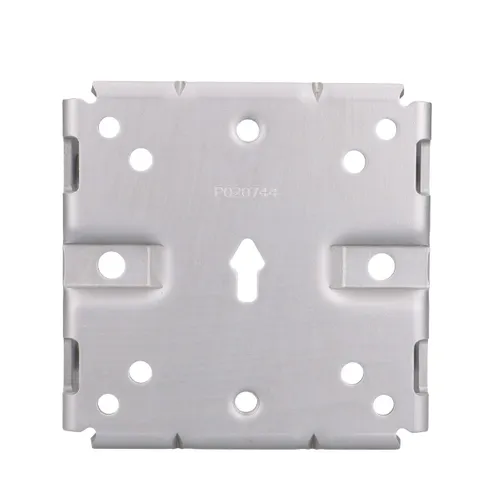

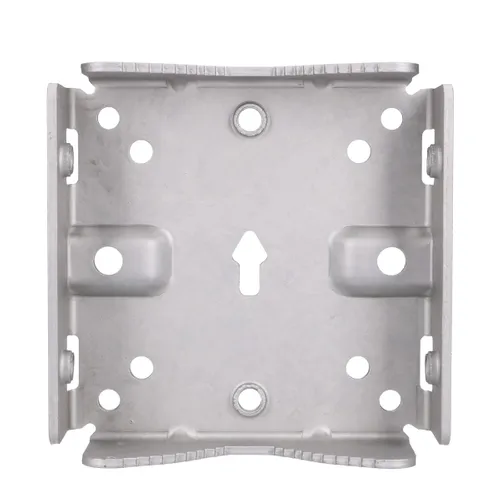

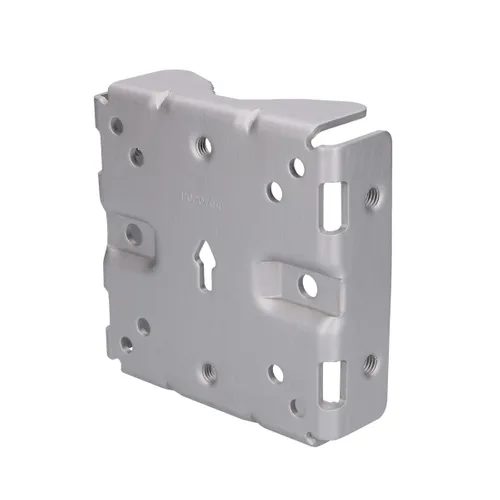

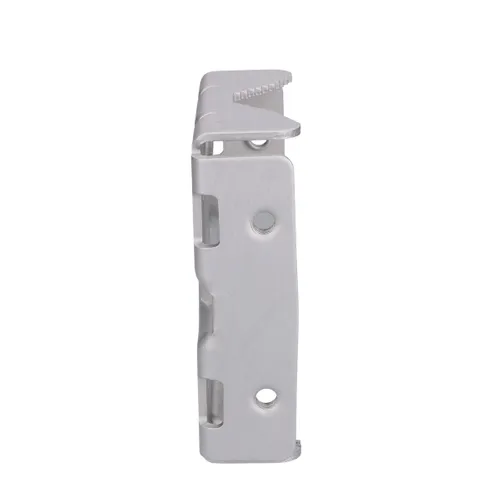

Universal bracket for mounting on a pole with a diameter of 1" - 3" (25 - 75mm)

60GHz cnWave V5000, PTP550, PTP550E, PTP670, PTP48700, PTP78700, PMP450i Connectorized

Specification

Technical data
Model C000000L137A
Supported mast diameter 1" - 3" (25 - 75mm)

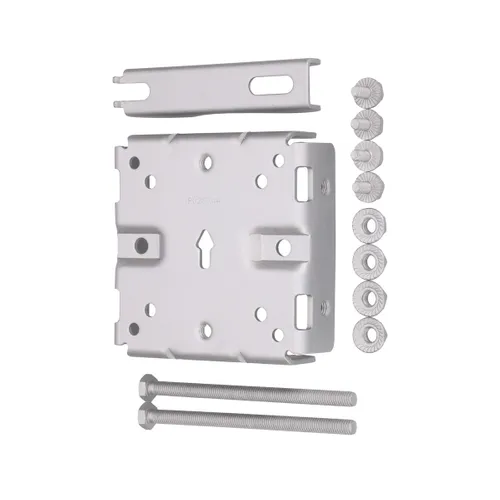

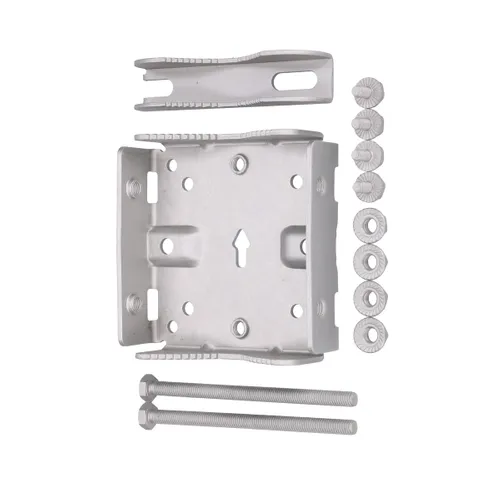

Set Clamps: pole mounting base,
Clamp: single-jawed,
Screw: with flange head w/ socket M6X1mmX12mm (quantity 4),
Bolt: M8X120 (quantity 2),
Nut: flanged hex nut M8 (quantity 4).
Supported products 60GHz cnWave V5000, PTP550, PTP550E, PTP670, PTP48700, PTP78700, PMP450i Connectorized
Design Q235 Carbon steel with geometric finish
Operating temperature -40°C to 80°C
27,56 GBP without VAT (net)
