The Cambium ePMP™ 6 GHz 2x2 25 dBi Dish Antenna is a dish antenna designed specifically for the 6 GHz band to provide high performance and scalability for point-to-multipoint (PMP) wireless networks. This antenna is ideal for network operators who want to take advantage of the wide spectrum and low interference in the 6 GHz band.
These antennas are designed specifically for the 6 GHz band. In addition to frequency coverage, a key advantage is to concentrate more gain in the main beam while minimizing side lobes in the propagation pattern.

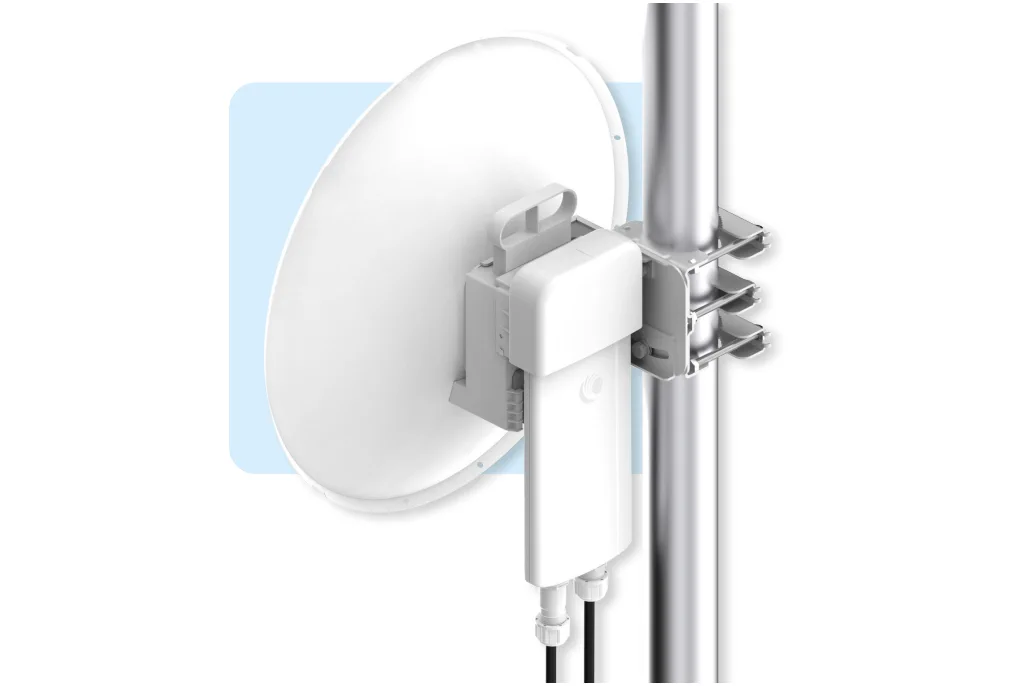

The antenna operates in the 6 GHz band and provides 7º beam coverage. To simplify installation, the antenna comes with the mounting bracket needed for pole mounting and the cables needed to directly connect the antenna to the Force 4600C subscriber module.
Technical data | |
Frequency range | 5.150 to 7.125 GHz |
Profit | 25 dBi |
Gain with range amplifier | 28 dBi |

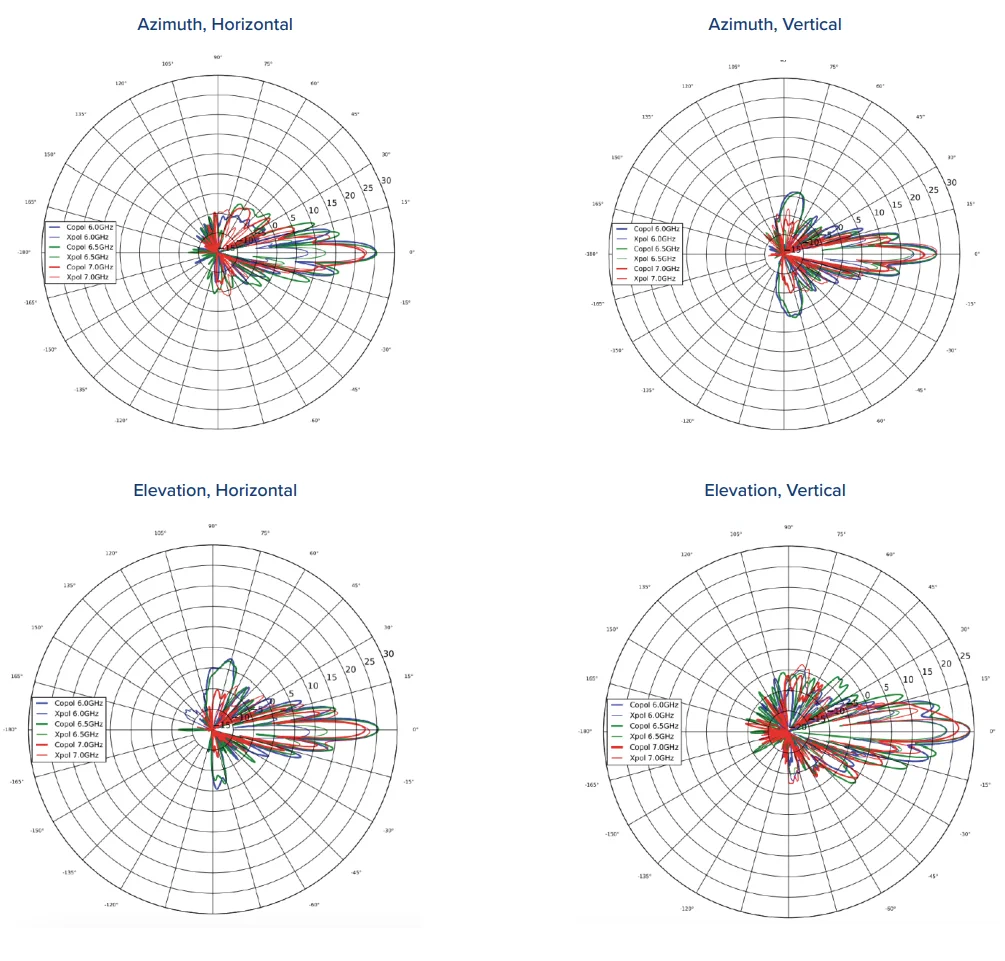

3 dB beamwidth - azimuth | 7º |
3 dB beamwidth - elevation | 6º |
Port to Port isolation | > 35 dB |
Front-to-Back Ratio | > 35 dB |
Maximum input power | 5 W |
Input impedance | 50 ohms |
Connectors | 2 x RP SMA |
Dimensions (H x W x D) | 590 x 525 x 280 mm |
Weight | 5.5 kg |
Degree of tightness | IP67 |
Mounting accessories | Mounting kit for masts from 1.25" to 3.0" (30-75 mm) in diameter Hardware for connecting the Force 4600C to the back of the antenna body |
