Canadian Solar HiKu CS3W-400P | Solar panel | 400W, Polycrystalline

CODE: CS3W-400P

Canadian Solar HiKu CS3W-400P | Solar panel | 400W, Polycrystalline

CODE: CS3W-400P
166,80 GBP without VAT (net)
Out of stock
Power (W): 400
Show more parameters
Power (W):
395
400
405
410
415

About product

Canadian Solar photovoltaic panels

CANADIAN SOLAR INC. is committed to providing customers around the world with high-quality solar products, solar system solutions and services. It is the No. 1 supplier in terms of quality and performance/price ratio according to the IHS Module Customer Insight Survey. Canadian Solar is a leading designer and manufacturer of over 36 GW solar modules, implemented worldwide since 2001.

canadian solar

More power

  • 24 % more power than conventional modules
  • Up to 4,5 % lower LCOE
  • Up to 2.7 % lower system cost
  • Low NMOT: 42 ± 3 °C
  • Low temperature coefficient (Pmax): -0,37 % / °C
  • Better shade tolerance
canadian solar

More reliable

  • Lower internal current, lower hot spot temperature
  • Reduce the risk of cell breakage in a small area, increase module reliability
  • Heavy snow load up to 5400 Pa, wind load up to 3600 Pa

Specification

Features / filters
Power (W) 400

Electrical data | STC [1]
Nominal Maximum Power (Pmax) 400 W
Opt. Operating voltage (Vmp) 38.7 V
Opt. Current (Imp) 10.34 A
Open circuit voltage (Voc) 47.2 V
Short circuit current (Isc) 10.90 A
Module efficiency 18.11%
Operating temperature range -40°C ~ +85°C
Max. System voltage 1500V (IEC/UL) or 1000V (IEC/UL)
Fire performance of the module TYPE 1 (UL 1703) or CLASS C (IEC 61730)
Max. classification of series fuses 20 A
Application classification Class A
Power tolerance 0 ~ + 5 W
Electrical data | NMOT [2]
Nominal Maximum Power (Pmax) 297 W
Opt. Operating voltage (Vmp) 36.0 V
Opt. Current (Imp) 8.27 A
Open circuit voltage (Voc) 44.3 V
Short circuit current (Isc) 8.79 A

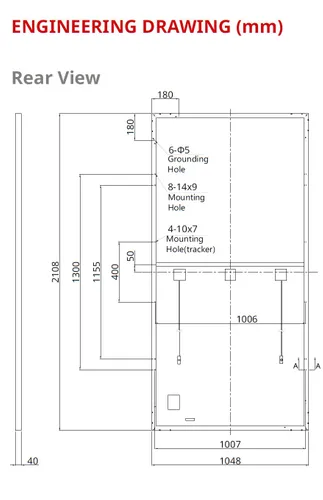

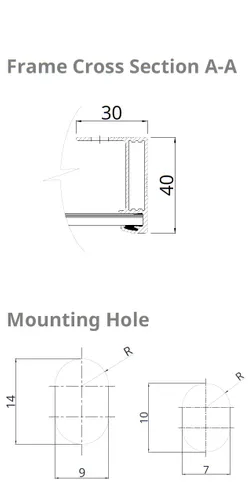

Mechanical data
Cell type Polycrystalline
Cell system 144 [2 X (12 X 6) ]
Dimensions 2108 X 1048 X 40 mm (83.0 X 41.3 X 1.57 in)
Weight 24.9 kg (54.9 lbs)
Outer casing 3.2 mm toughened glass
Frame Anodized aluminium alloy, reinforced with crossbar
J-Box IP68, 3 bypass LEDs
Cable 4 mm2 (IEC), 12 AWG (UL)
Cable length (including connector) Vertical: 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-); horizontal: 1400 mm (55.1 in); pitch-finger joint: 1670 mm (65.7 in) [3].
The link T4 series or H4 UTX or MC4-EVO2
Quantity per pallet 27 pieces
Quantity per container (40' HQ) 594 pieces
TEMPERATURE CHARACTERISTICS
Temperature coefficient (Pmax) -0.37 % / °C
Temperature coefficient (Voc) -0.29 % / °C
Temperature coefficient (Isc) 0.05 % / °C
Nominal operating temperature of the module 42 ± 3°C

[1] Under standard test conditions (STC) with 1000 W/m2 irradiance, AM 1.5 spectrum and cell temperature of 25°C. [2] Under Nominal Module Operating Temperature (NMOT), 800 W/m2 irradiance, AM Spectrum 1.5, ambient temperature 20°C, wind speed 1 m/s. [3] Please contact your local Canadian Solar sales and technical representatives for details.
