Cisco, one of the world's largest network equipment companies, has an entire series of CBS110 unmanaged switches that are designed for businesses with basic networking needs. They can be used to reduce network infrastructure costs in cases where no complex configuration is required. For example, in video surveillance networks, server management, thin clients and a large number of other similar devices deployed compactly on a single subnet.

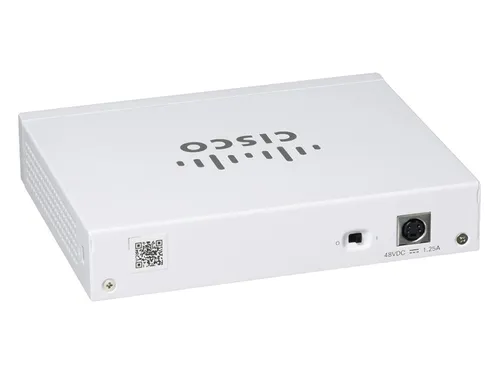

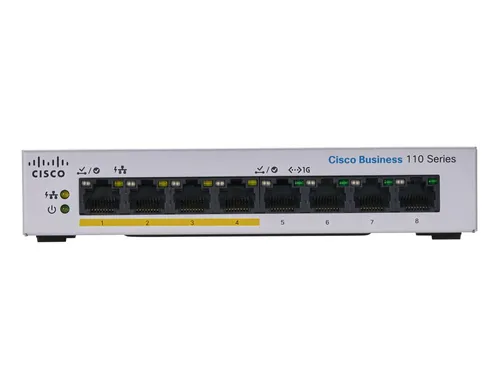

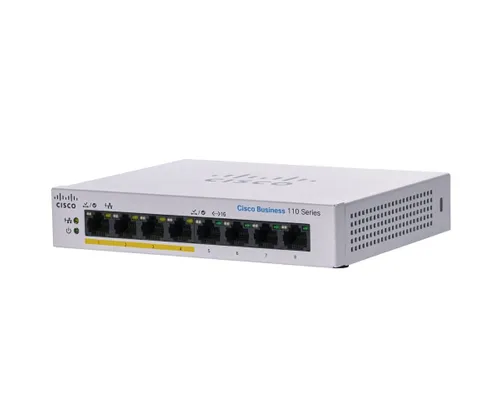

TheCisco CBS110-8PP-D-EU is part of the Cisco Business 110 line of switches designed specifically for small businesses. This affordable switch can help you create a powerful enterprise-class network. The switch has 8 10/100/1000 Base-TX ports. Four PoE ports with a total "budget" of 32 watts. The use of these ports allows you to connect IP telephony, video cameras, etc. An external power supply (adapter) is used to connect the switch to the network. The switch can be placed on a desk, mounted on a wall or in a server or telecommunications rack.
The CBS110-8PP-D-EU is reliable, affordable and plug-and-forget, meaning it requires no configuration, software installation or special knowledge on the part of the user. The integrated controller automatically detects the type of devices being connected and selects the best mode for each port. This makes the switch the best choice for small businesses that don't have their own IT department.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Number of LAN ports | 8x [10/100/1000M (RJ45)] |
Number of PoE ports | 4x [802.3af/at (1G)] |
Built-in modem | None |
Management | No |
Power (W) | 32 |
Switching layer | 2 |
Type of case | Desktop |
Basic general data | |
Manufacturer | Cisco |
Model | CBS110-8PP-D |
Performance characteristics | |
Throughput in millions of packets per second (mpps) (64-byte packets) | 11.9 mpps |
Gigabit per second (Gbps) switching capacity | 16 Gbps |
General features | |
Blocking a Line Header (HOL) | Prevention of HOL blockage |
MAC table | 8K addresses |
Jumbo frame | 9216 bytes |
Quality of Service (QoS) | 802.1p priority-based, 4 hardware queues, priority queuing and weighted rotation (WRR) |
Loop detection | Helps detect loops in the network to avoid broadcast storms |
Cable diagnostics | Quickly identify and resolve network cable faults and/or short circuits |
Media-dependent interface | Automatic media dependent interface (MDI) and MDI-X crossover |
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
Hardware features | |
Ports | 8 10/100/1000 Gigabit Ethernet RJ45 ports |
Power over Ethernet (PoE) 802.3af | 8 ports x 32W |
LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE,. * If present |
Wiring type | Category 5e or better |
Mounting options | Desk, wall or rack mountable |
Physical security lock | Kensington lock slot |
Packet buffer | 2 Mbit |
Environmental features | |
Device dimensions (W x D x H) | 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in) |
Unit weight | 0,55 kg (1,2 lb) |
Power supply | 110-240 VAC, 50-60 Hz, internal, universal |
Power consumption (worst case) | 110V=5,1W 220V=38,2W |
Power consumption (with PoE) | 110V=38,02W 220V=38,2W |
Heat dissipation (BTU/hour) | 130.34 |
Ecological (energy efficiency) | Supports IEEE 802.3az on all Gigabit Ethernet copper ports |
Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE Mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 158°F (-20° to 70°C) |
Humidity during operation | 10% to 90%, relative, non-condensing |
Storage Humidity | 5% to 90%, relative, non-condensing |
Acoustic noise and mean time between failures (MTBF) | 465,437 hours |
Yes, the Cisco CBS110-8PP-D has 8 outputs powered by PoE.
