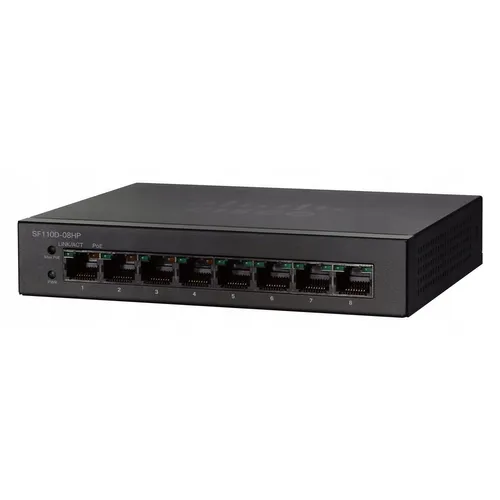

The SF110D-08HP is an eight-port switch with a maximum throughput of 100Mbps per port. The switch belongs to 110 Cisco Small Business series and is dedicated for use in small offices or homes. This model additionally has 4 RJ45 ports, which support power transmission via Ethernet cable - compliant with PoE 802.3af standard. The total power to be supplied via PoE is 32W.
The switch does not need to be configured, it is ready to use after taking it out of the package. The device has many technologies that work automatically, including built-in QoS (Quality of Service) functions that automatically give higher priority to video and audio data.
The switch is designed to reduce energy consumption, offering low power consumption without loss of efficiency. Fanless design makes it work quietly and discreetly. In addition, each port of the switch independently sets the optimum speed and automatically determines whether it is to operate in half-duplex or full-duplex mode.
Increase the speed and efficiency of your office network at low cost, without wasting time on set-up. With Cisco switches you can easily build a highly reliable network to connect computers, printers, copiers and other office equipment. A powerful and reliable business-class office network that works right out of the box with unmanaged Cisco® 110 switches.
Cisco 110 series switches guarantee small businesses basic network connectivity and reliability. These switches provide all functions, expandability - without installation software and without the need for configuration. Simply connect the switch, computers and other business equipment and get down to work.
The Cisco 110 series is part of Cisco Small Business network solutions. It is a line of unmanaged switches that provide Fast Ethernet and Gigabit Ethernet (SG series) connectivity. Available in models for desktop or rack mounting. These switches are designed to fit basic network needs and to optimize energy efficiency. They use less energy and provide the robust, reliable connectivity required by businesses. The 110 Series Switches are a business-class network solution, at an affordable price, and guarantee Cisco's proven reliability.
● Ease of use: the switches work right out of the box, without the need to install software or configure. Each switch port is independently set to the optimum speed and automatically decides whether to operate in half-duplex or full-duplex mode. Cisco switches support all devices on the network and provide: - support 10Mbps, 100Mbps and up to 1Gbps (SG series) devices on the same network; - automatic detection of the network cable used; - compatibility with network devices of other manufacturers.
Easy installation: Cisco 110 series switches are designed for small office spaces. They are available in both compact Desktop and rack-mounted enclosures. The Desktop models offer wall mounting options.
● High Performance: Cisco has the performance required for business applications, including bandwidth-hungry video services. These products avoid network latency. They support Gigabit Ethernet (SG series) speed, unlocking new levels of bandwidth and performance in your business network and allowing you to transfer large files in seconds.
Reduced energy consumption: the 110 series switches are designed to save energy by optimising energy consumption - without sacrificing efficiency. In addition, they support the Energy Efficient Ethernet standard (IEEE 802.3az), which reduces energy consumption by monitoring traffic on the active link, putting it into a dormant state when not in use. Most switches do not have fans, so they run quietly while reducing energy costs.
● High technology support: all switches are equipped with advanced traffic control features to ensure maximum performance. The integrated QoS intelligence in all models automatically prioritizes delay-sensitive services such as voice or video services - to increase network performance. The detection of loops that may have been created inadvertently avoids device collisions and consequent network shutdown. Cable diagnostics help to quickly identify and resolve network cabling problems. Fast store-and-forward switching identifies damaged packets and prevents them from passing through the network. All these functions work automatically, without the need for management or configuration.
● Faultlessness: high quality workmanship and reliability are the features you should expect from Cisco equipment. The equipment has been rigorously tested to ensure optimal uptime and performance. Due to their reliability, these products have a limited hardware warranty for life.
Power over Ethernet (PoE): The 110 series offers models with PoE ports - both Fast Ethernet and Gigabit Ethernet. This feature simplifies the deployment of IP telephony, wireless systems, video surveillance and other solutions, enabling you to connect and power your network endpoints with a single Ethernet cable. There is no need to install separate power supplies for network devices, so advanced communication technologies can be deployed faster and cheaper.
Features / filters | |
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 8x 10/100BaseTX (RJ45) |
Number of PoE ports | 4x [802.3af/at (100M)] |
Number of WAN ports | Not applicable |
10G support | No |
Auto MDI/MDI-X | Yes |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Built-in modem | None |
Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B |
Copper ethernet cabling technology | 100BASE-TX,10BASE-T |
DC input voltage | 48 |
Depth | 129 |
Fast Ethernet (copper) ports quantity | 8 |
Flow control support | Yes |
Full duplex | Yes |
Harmonized System (HS) code | 85176990 |
Head-of-line (HOL) blocking | Yes |
Height | 30 |
Input current | 1.25 |
Input voltage | 48 |
Jumbo frames support | Yes |
LED indicators | Yes |
Management | No |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
Number of queues | 4 |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Power (W) | 32 |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 4 |
Power supply included | Yes |
Product colour | Black |
Quality of Service (QoS) support | Yes |
Quick start guide | Yes |
Rack mounting | No |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -20 - 70 |
Switch layer | L2 |
Switch type | Unmanaged |
Switching capacity | 1.6 |
Switching layer | 2 |
Type of case | Desktop |
Web-based management | No |
Weight | 490 |
Width | 160 |
Basic technical parameters | |
Cabling | Category 5e or higher |
Supported standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
LED lights | System/PWR, link/activity, 100M,*PoE, *mMax PoE, cable diagnostics, loop detection, *gigabit,* mini-GBIC*. *if the switch is equipped with this port |
Physical interfaces | |
Ports | 8 ports RJ-45 10BASE-T/100BASE-TX |
Power supply | DC 48V. 1.25A |
Socket | Kensington Castle Nest |
Physical dimensions (W x D x H) | 160 x 30 x 128.5 mm |
Weight | 0.545 kg |
Power over Ethernet (PoE) | 4 PoE ports with 802.3af PoE standard support, 32W PoE power |
Fan | None |
Performance | |
Switching capacity | 1.6 Gb/s |
Capacity | 1.2 mpps (based on 64-byte packages) |
Functions | |
Head-of-line (HOL) | Prevention of HOL blocking |
Jumbo frame | 9216 bytes |
Quality of service (QoS) | 802.1p, 4 queues, priority and CSF |
Loop detection | Helps to detect loops in the network |
Cable diagnostics | Quickly identify and resolve problems with network cables and/or short circuits. |
Installation and protection | |
Mounting options | Desktop |
Physical security lock | Kensington Castle Nest |
Environmental features | |
Certificates of conformity | UL (UL 60950), CSA (CSA 22.2), CE, FCC Part 15 (CFR 47) Class A, FCC Class B* *Selected models |
Operating temperature | 32°F to 104°F (0° to 40°C) |
Storage temperature | -4°F to 158°F (-20° to 70°C) |
Ambient humidity | 10% to 90%, relative, non-condensing |
Humidity during storage | 5% to 90%, relative, non-condensing |
System memory | 128-MB RAM 128-MB Flash |
Package contents | - 110 Series Cisco Switch 110 - Power cable / mains adapter - Operating instructions - Mounting accessories |
