Extralink | Cable drum jacks | hydraulic, load capacity up to 5T
CODE: EX.33029 / EAN: 5905090333029

EN

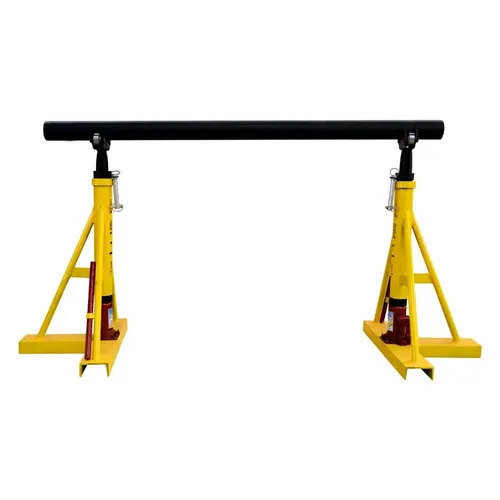

Extralink hydraulic cable drum lifters are professional tools designed for efficient and safe manipulation of heavy cable drums. The use of hydraulic cylinders makes it much easier to lift and stabilize the drum, which is crucial during installation or storage work. The robust design provides the necessary stability even when fully loaded, streamlining the process of uncoiling and coiling cables.
The Extralink lift kit is characterized by its versatility, allowing it to handle drums with diameters from 700 mm to 2200 mm. The maximum width of the drum that can be placed on the attached axle is 1500 mm. The jacks are designed to work with a 75mm diameter axle, and have a maximum load capacity of 5t.
Technical data | |
Drum diameter | 700mm - 2200mm |
Maximum drum width | 1500mm |
Beam diameter | 75mm |
Weight | 120kg |
