Extralink Doris | Fiber optic distribution box | 12 core

CODE: EX.0332 / EAN: 5902560360332

Extralink Doris | Fiber optic distribution box | 12 core

CODE: EX.0332 / EAN: 5902560360332
4,47 GBP without VAT (net)
Out of stock
Number of fibres supported (max): 12
Number of splice trays supported (max): 12
Product colour: Grey
Show more parameters

About product

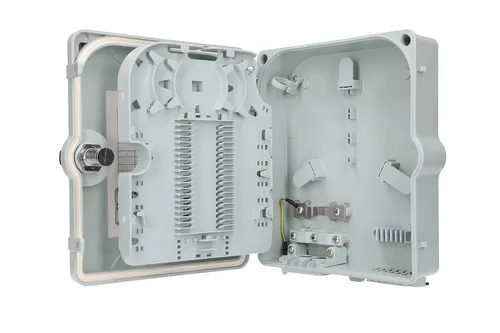

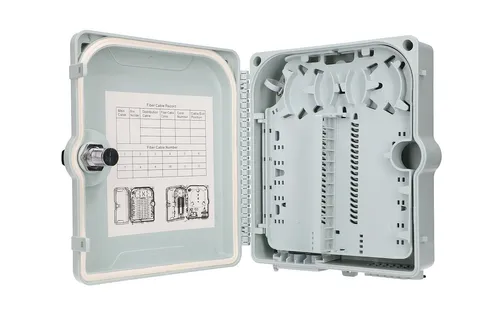

EXTRALINK DORIS 12 CORE fiber optic box

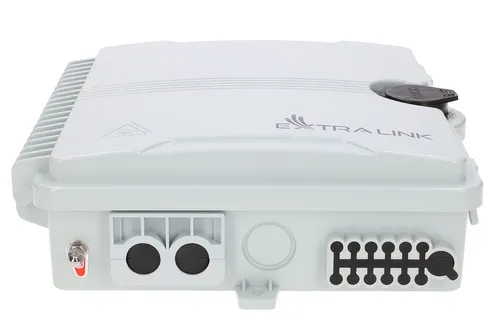

EXTRALINK Doris 12 CORE serves as an end point of the bus cable for connection to the drop cable in the FTTx communication network system. This box enables the securing of connections and distribution of client cables. The box has two midspan inputs and one input with a cable gland.

extralink fiona 24 core fiber optic box

Features:

  • Total enclosed structure
  • Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65
  • Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
  • Cables, pigtails, crossover cables run on their own path without disturbing each other
  • Installation of the SC-type adapter
  • Easy maintenance
  • The control panel can be inverted, the power cable can be placed in an articulated manner
  • Maximum capacity is 24 fibres
cheap 24 core fiber optic box

Technical data on lightning resistance

The earthing device is insulated with a housing, the insulation resistance is not less than 1000 M/500V (DC); IR 1000M/500V. The static voltage between the earthing device and the housing is not less than 3000V(DC)/min, without any puncture; U3000V

24 core fibre optic cans
which can of fiber optic

Specification

Features / filters
Housing material Acrylonitrile butadiene styrene (ABS)
Number of fibres supported (max) 12
Number of splice trays supported (max) 12
Product colour Grey
Wall mountable Yes

Basic technical parameters
Max. number of fibres 12
Type Closure
Colour Grey
Dimensions 225*200*65mm
Loss (insertion loss) 0.2dB
Loss of UPC 50dB
Loss of APC 60dB
Durability of input and output 1000 times
Operating temperature -40~+85
Operating humidity 85%(+30)
Atmospheric pressure 70KPa~106Kpa
