Extralink Pilot 4.5mm 50m | Cable pulling rod | glass fibre FRP, d. 4.5mm, l. 50m, yellow
CODE: EX.16026 / EAN: 5903148916026
EN

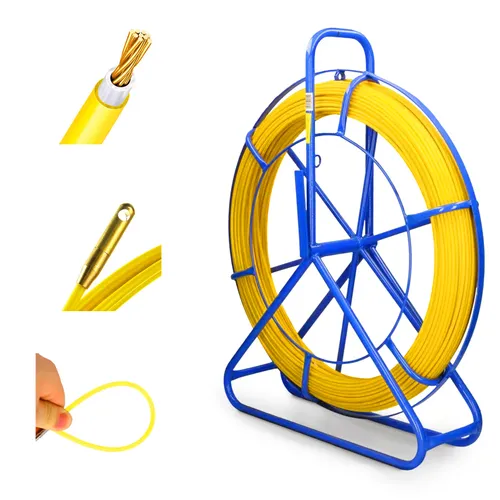

Pilot for cable pulling made of FRP glass fibre with a diameter of 4.5 mm and length of 50 meters placed on a special stand facilitating its unrolling. Fiber of high elasticity and resistance to bending and tearing, covered with yellow plastic PE acting as a protection and providing good sliding properties. Fiber rack powder coated in blue, equipped with a manual brake blocking the drum and a special "eyelet" to guide the fiber. The rack construction ensures functional transport, storage and use. The end of the fiber ended with guiding head
Features / filters | |
Bending radius (min) | 4.5 |
Number of wheels | 1 |
Product colour | Blue, Yellow |
Rod length | 50 |
Rod material | Fibreglass |
Technical data | |
Manufacturer | Extralink |
Model | Pilot 4.5mm 50m |
Model code | EX.16026 |
Dimensions | 56 cm x 18 cm x 68 cm |
Outside diameter (with protector) | 4.5 mm |
Length | 50 m |
Weight (with frame) | approx. 8 kg |
