Extralink POE-48-24W-G | PoE Power supply | 48V, 0.5A, 24W, Gigabit, AC cable included

EN
The Extralink PoE power adapter (power adapter) supplies power through selected strands of twisted-pair cable to network devices such as media converters, access points, cameras, etc. The 48V 0.5A PoE power adapter enables Gigabit Ethernet network data transmission while providing power over a single cable. This model allows transmission at Gigagbit Ethernet speeds, is a Passive PoE solution and is not compliant with the IEEE 8023af/at standard. Unlike power supplies with a 5.5/2.1mm jack connector, the presented device allows you to directly power Gigabit PoE devices without additional network accessories.

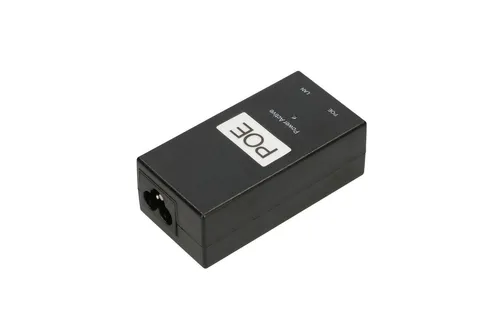

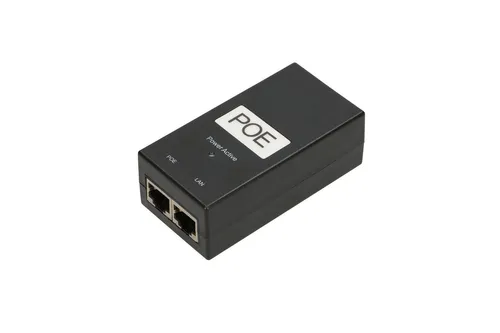

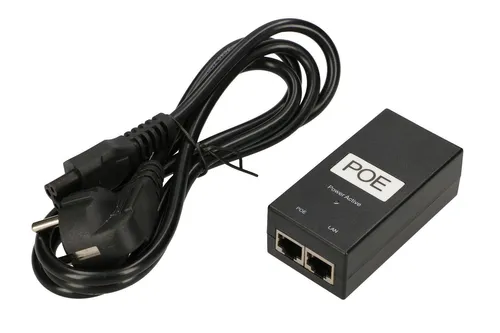

The power supply with two RJ45 ports is equipped with a 1.2-meter long power cable terminated with a cloverleaf connector. One port is connected to the device to be powered, and the other socket is used to connect a switch or router with a patchcord. The device can be mounted in residential or tele-technical rooms or in racks.
The LED indicates the correct operation of the device. If one of the protections, short-circuit or overload, is triggered, the power supply cuts off the voltage to the device. After the failure ceases, the voltage is restored automatically.
Features / filters | |
Built-in display | No |
Built-in fan | No |
Cables included | AC |
Cooling type | Passive |
Detachable power connectors | Yes |
Easy to install | Yes |
Ethernet LAN | Yes |
Input frequency | 50/60 |
Input voltage | 230 |
LED indicators | Yes |
Output current | 0.5 |
Output power | 24 |
Output voltage | 48 |
Power adapter included | Yes |
Power current type | AC-to-DC |
Power protection features | Overload, Short circuit |
Power supply type | Auto/Indoor |
Product colour | Black |
Purpose | PoE adapter |
Quantity per pack | 1 |
RJ-45 ports quantity | 2 |
Standard | 802.3af/at |

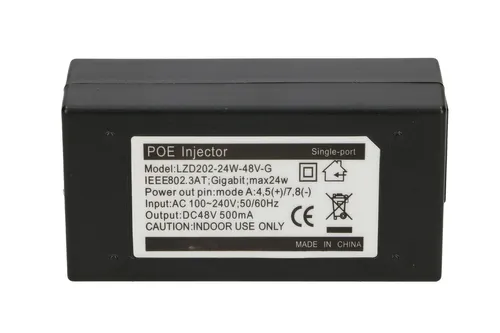

Pin outs | 4,5 ( ); 7,8 (-) |
