Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1310/1550nm, single mode, 3km, SC, DOM, pair, dedicated for HP/Aruba
CODE: EX.15074 / EAN: 5903148915074
Contact
Account
Favorite
Cart

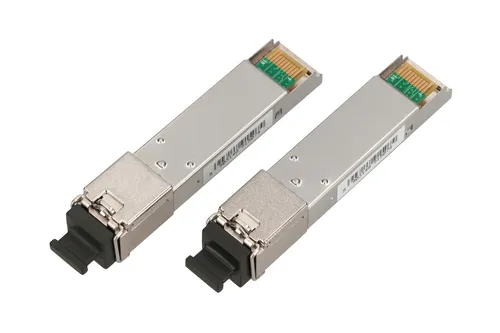

The Extralink SFP 1.25G 1310/1550NM fiber optic module is a single-mode SFP insert designed for data transmission at a speed up to 1.25 Gbps, which provides a transmission range of up to 3 km. It has an LC output connector. Presented Extralink SFP 1.25G 1310/1550NM module is dedicated for HP/Arub devices.
The SFP single-mode module is compatible with SONET OC-24-LR-1 and the EU directive RoHS. Digital diagnostic monitoring allows for external and internal calibration. The device supports WDM signal multiplication technology. SFP 1.25G cartridge can be used in Gigabit Ethernet, fiber optic channels, switch-to-switch, switched backplane applications, router/server interfaces and other optical transmission systems.
| Features / filters | |
| Output connector | SC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | 1-3km |
| Certification | FCC |
| Fiber optic connector | SC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum operating temperature | 70 |
| Maximum transfer distance | 3000 |
| Number of products included | 2 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1310/1550 nm, 1550, |
| Wavelength-division multiplexing (WDM) | Yes |
