Huawei H807GPBH | GPON Board | 8x GPON 2.5G, SFP C+
CODE: H807GPBH 8XGPON 2.5G INCL. SFP
EN

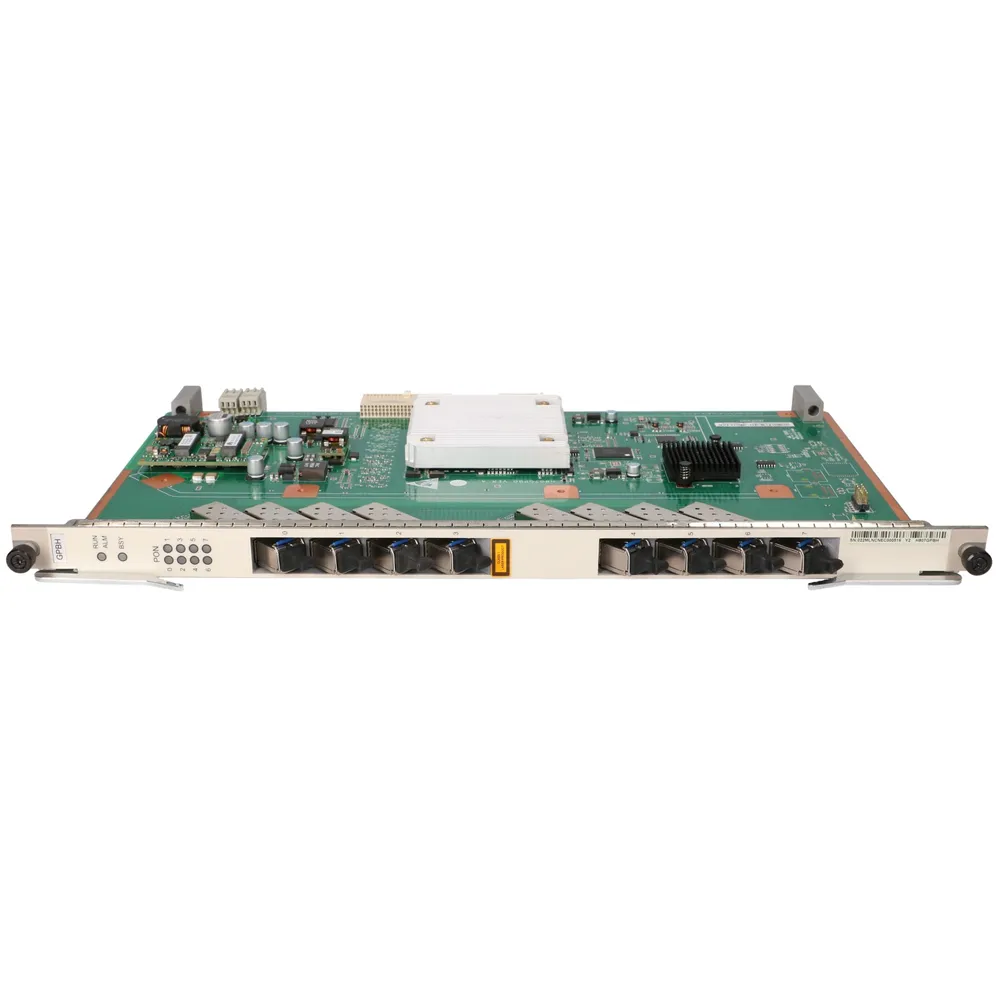

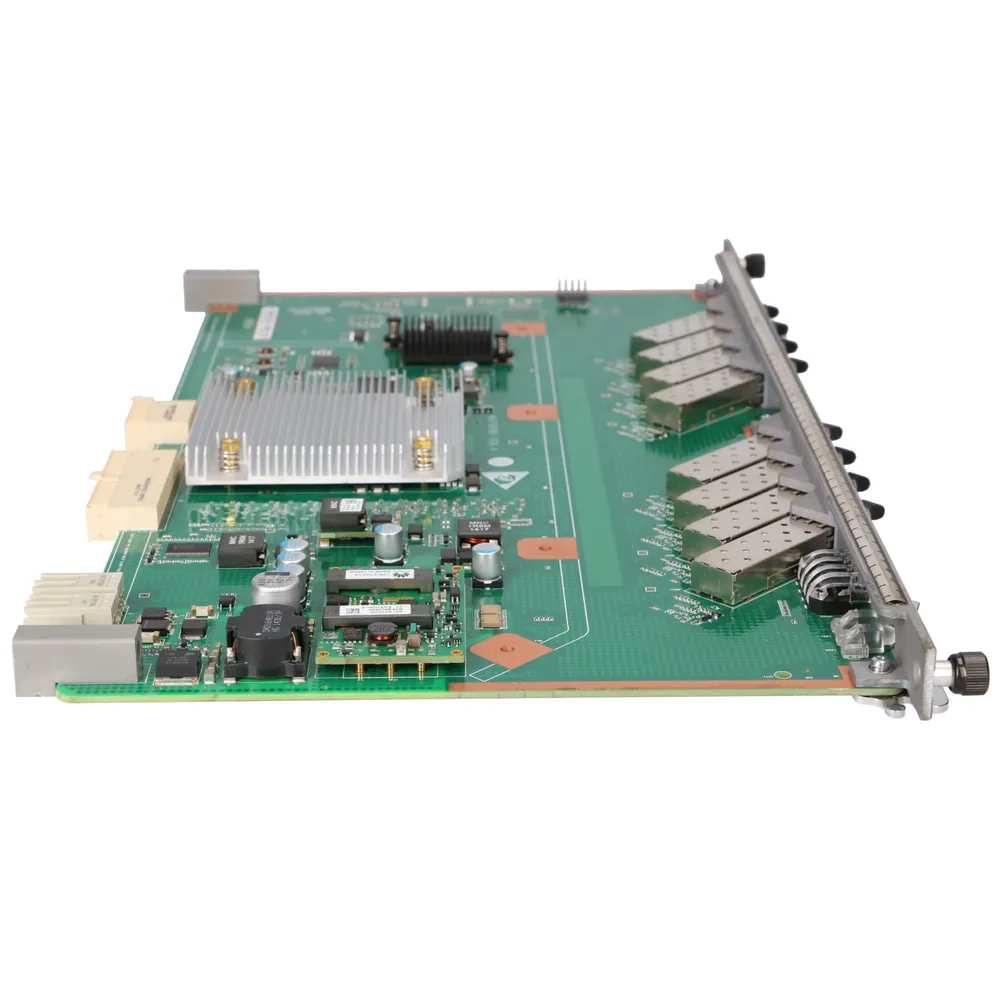

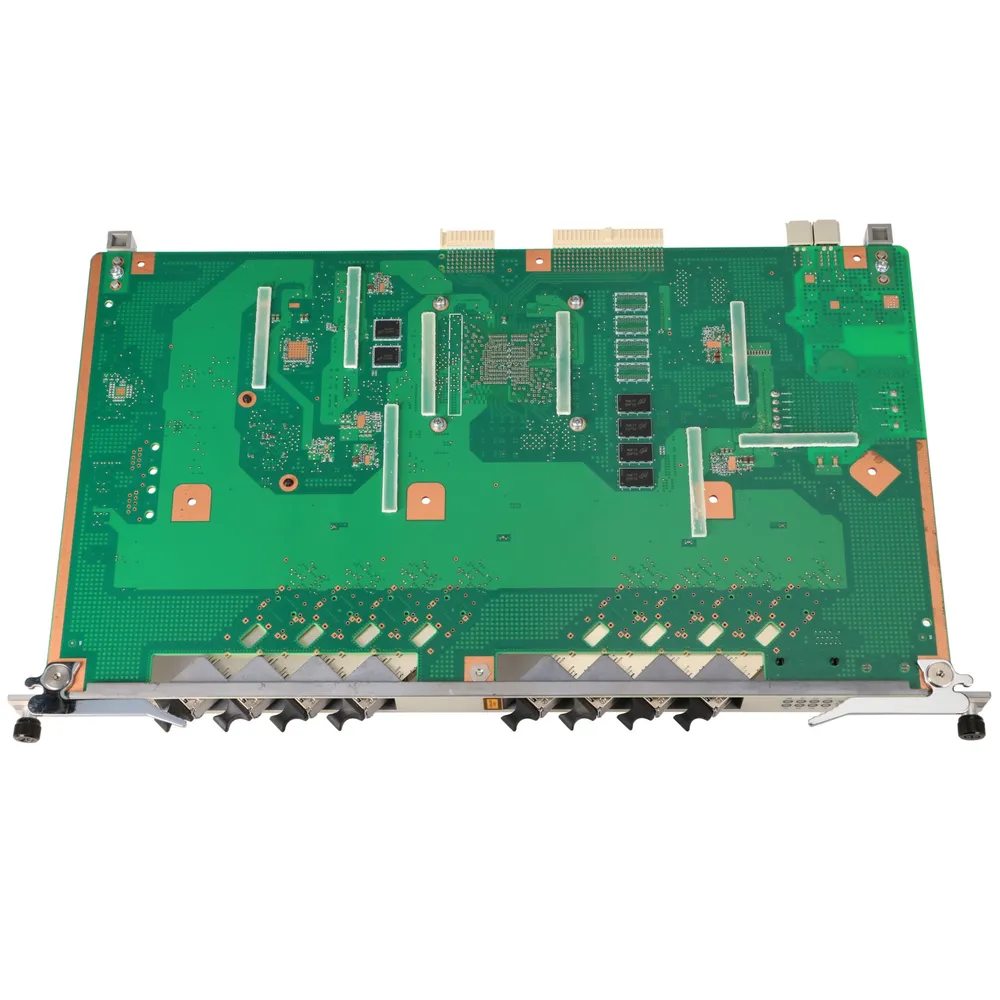

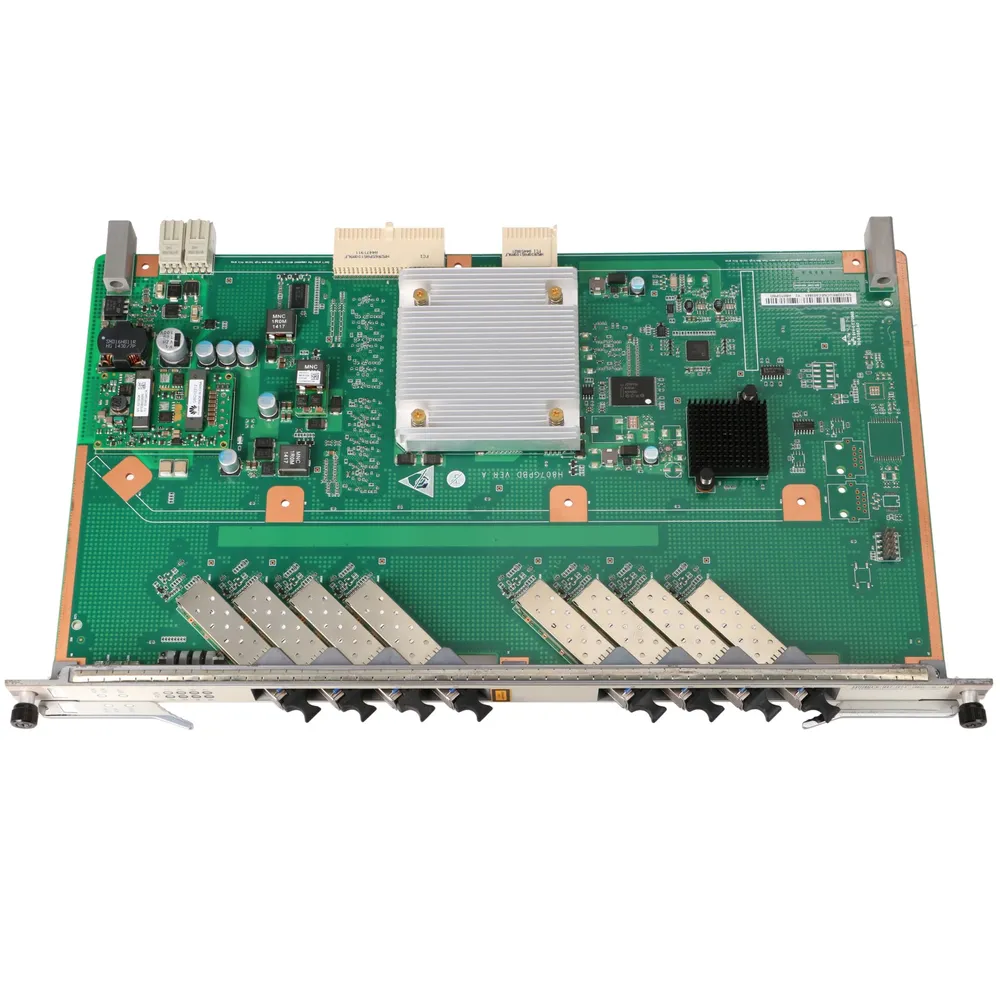

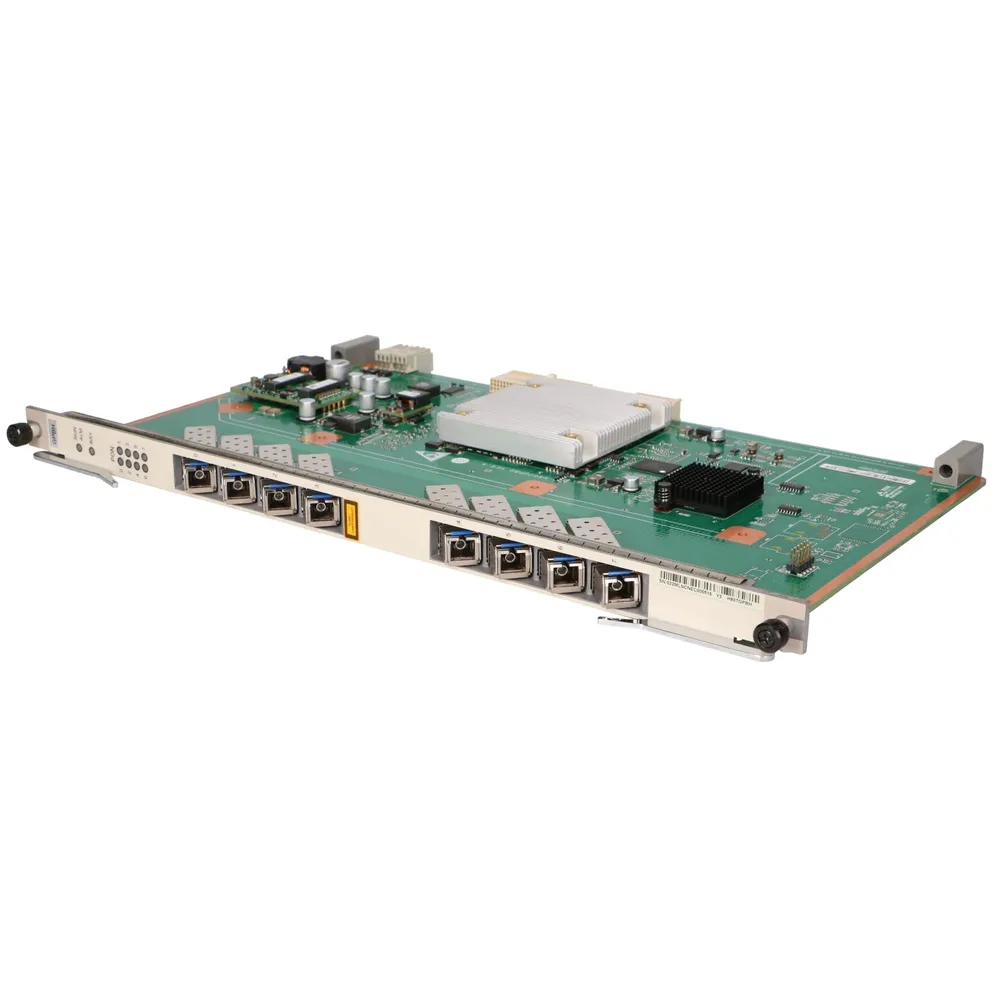

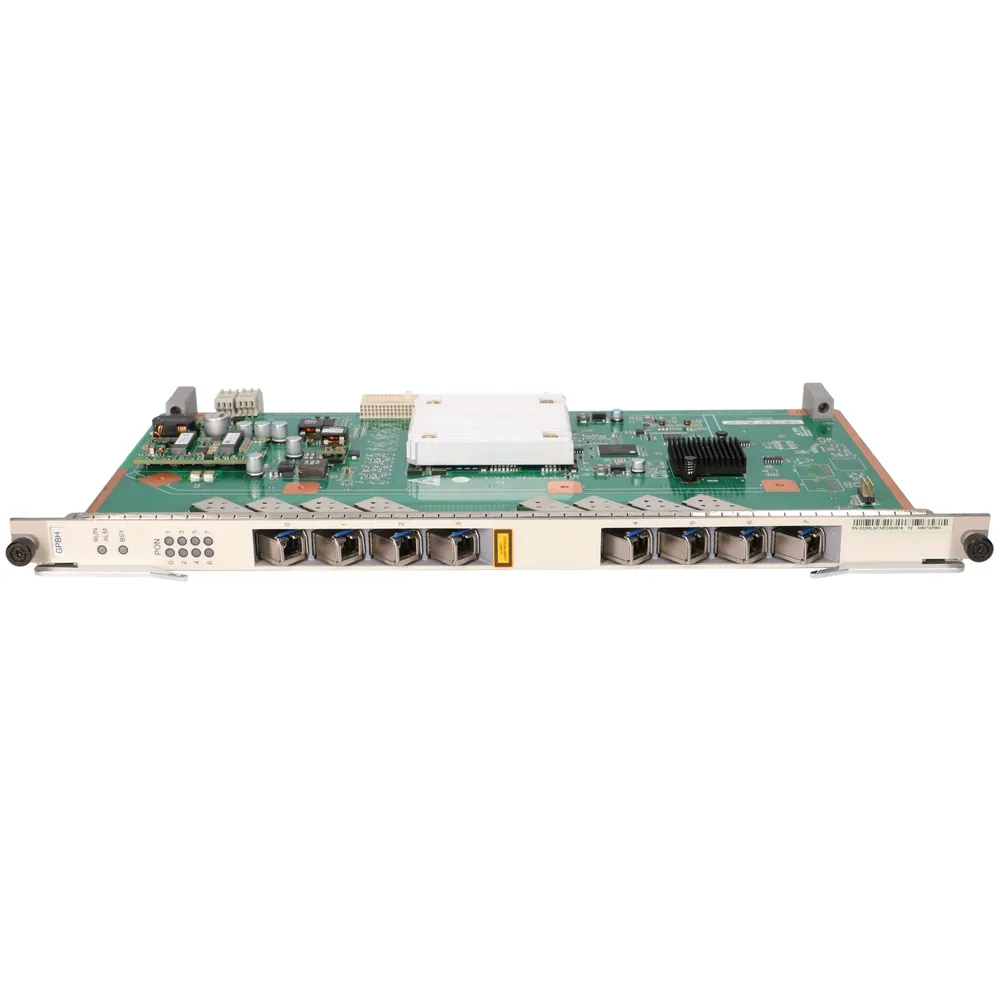

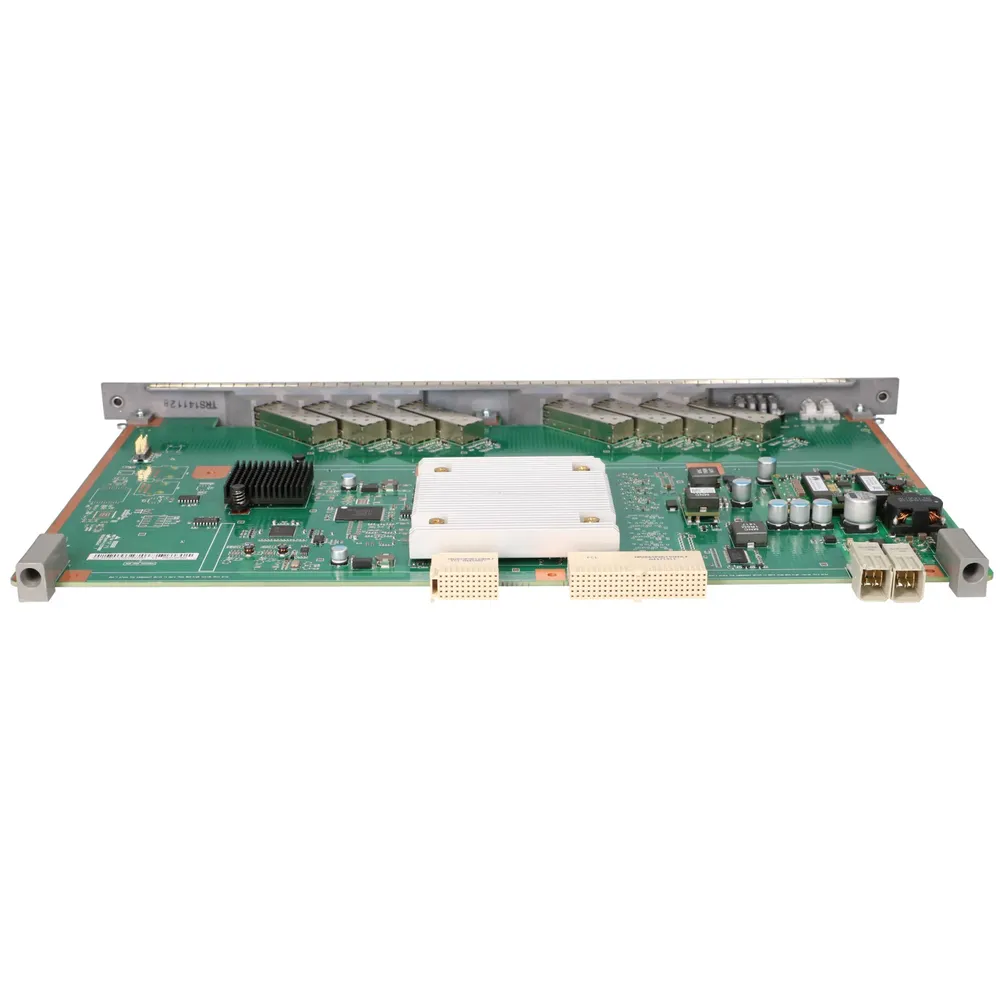

Huawei H807GPBH is a GPON board designed for OLT terminals of MA56XX series (MA5608T / MA5683T / MA5680T).
GPON technology allows to connect up to 1024 subscribers. Maximum split per port is 1:128. Throughput per port is 2.5 / 1.25 Gbps.
Technical data | |
Number of slots / ports | 8 |
Maximum power consumption | ~46W |
Maximum frame size | 2004 bytes |
Dimensions [mm]. | 395.4 x 237 x 22.9 |
Permissible operating temperature | -25'C to 65'C |
