Huawei HG8240H | ONT | EchoLife, 1x GPON, 4x RJ45 1000Mb/s, 2x RJ11

CODE: HUAWEI HG8240H

Huawei HG8240H | ONT | EchoLife, 1x GPON, 4x RJ45 1000Mb/s, 2x RJ11

CODE: HUAWEI HG8240H
29,48 EUR without VAT (net)
AVAILABILITY:
Any customs costs and VAT are to be borne by the buyer in the country of receipt.
Number of LAN ports: 4x 10/100/1000BaseTX (RJ45)
PON standard: GPON
Wireless network standards: None
USB port: None
Show more parameters
Subscribe to the NEWSLETTER and receive 5EUR* for shopping
Save
* Offer valid for orders from 45EUR |Regulation|

Promotions

New products

Discounts

ABOUT PRODUCT

Huawei EchoLife HG8240H 4 GE + 2 POTS GPON ONT

EchoLife HG8240H is an indoor optical network terminal (ONT) for offices and home users (SOHO).
The optical network terminal (ONT) installed on the user side in FTTH solutions, using GPON technology, provides access to large data transmission networks in both homes and offices.
HG8240H terminal is equipped with four GE ports and two POTS ports. It guarantees a fast data channel through fiber optic fiber with an upstream rate of 1.244 Gbit/s and a transmission speed of up to 2.488 Gbit/s. You can enjoy high quality data transmission services. HD video, high-speed Internet access and voice services - everything works smoothly and without problems.
Terminal authentication in the network is based on the serial number, password or serial number + password. The software can be configured and updated locally through a graphical interface in a web browser.
Remote management and updating via OMCI is also possible. Installation and configuration of the terminal is quick and easy. Just one click of NMS in the Huawei management system. Terminal HG8240H also uses IPv6, supports IPv4/IPv6 dual stack and DS-Lite.

HG8240H

Main features of HG8240H:

  • 4 Gigabit Ethernet ports
  • 2 telephone ports (POTS)
  • SIP and H.248 audio protocols
  • Multicast routing
  • Remote and local configuration possible (OMCI/Graphical interface)
  • IPv4/ IPv6 dual stack
  • NAT, transmission at 900 Mbps

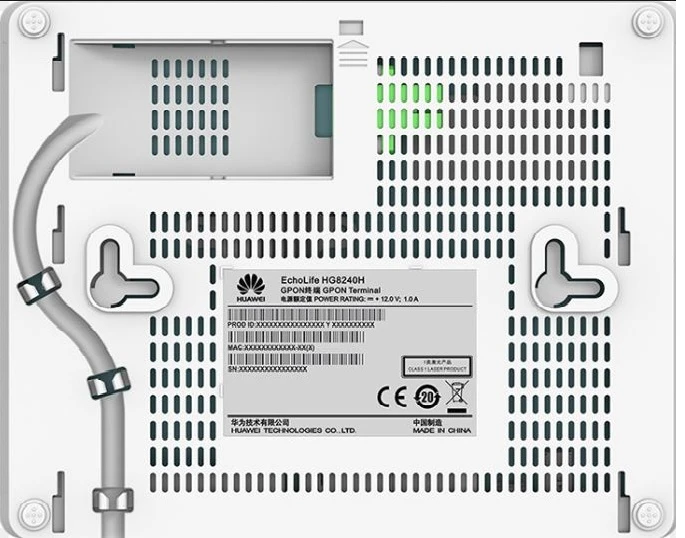

rear of HG8240H

Features:

  • Plug and play: Configurations are automatically provided by the network management system, so there is no need to run on-site.
  • Remote Diagnosis: POTS ports support loop tests and call simulation tests, implementing remote error localization. It supports remote batch updates, and up to 2000 devices can be updated on an hourly basis.
  • Link monitoring: OAM Ethernet based on IEEE 802.1ag, which implements comprehensive link detection (E2E) and network isolation.
  • Energy saving: SOC chips are highly integrated. Each chip integrates PON, voice, gateway and LSW modules for up to 25% energy savings.

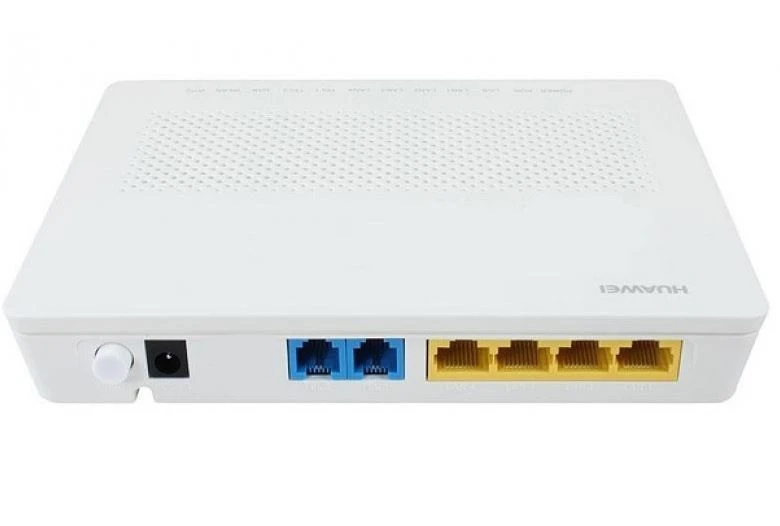

cable connections

SPECIFICATION

Features / filters
Number of LAN ports 4x 10/100/1000BaseTX (RJ45)
PON standard GPON
Wireless network standards None
USB port None
VoIP ports 2x POTS

Technical specification HG8240H

Interfaces
GPON Class B+
Sensitive reception: -27 dBm
Wavelength: US 1310 nm, DS 1490 nm
Authentication via serial number, password or serial number + password
Flexible mapping between the GEM port and the TCONT port
Ethernet 4 ports 10/100/1000BASE-T (RJ45)
POTS 2 x SIP port
H.248
Connection type GPON (SC/ UPC)
Physical characteristics
Dimensions 176 mm x 138.5 mm x 28 mm
Weight 240 g
Permissible operating temperature 0 to 40 degrees C
Permissible air humidity 5% - 95% RH, non-condensing
Power input 100 - 240 V AC, 50 - 60 Hz
System power supply 11 - 14 V DC, 1 A
Static power consumption 4 W
Maximum power consumption 7.8 W
LEDs POWER/ PON/ FATE/ LAN/ TEL
Functionality
Multicast features IGMP Snooping v2/ v3
Dynamically controlled multicast
Safeguards Filtering of MAC addresses
Protection against DoS attacks
Management Local configuration and software update via web browser
Automatic remote service provisioning, device management and software updates via OMCI
Information on the optical module
Loop line test and circuit test
Intelligent monitoring
IPv6 IPv4/ IPv6 dual stack
DS-Lite
Ethernet Features VLAN filtering, VLAN transparent transmission
VLAN N:1 aggregation
VLAN 1:1 switch

SUPPORT

Downloads:

Technical specification HG8240H Download
