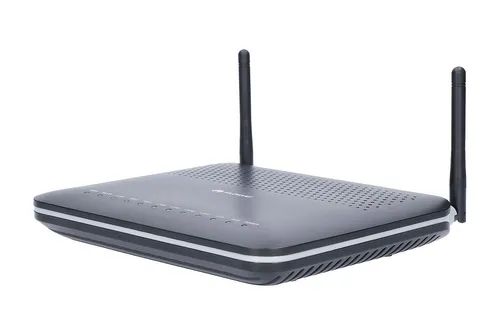

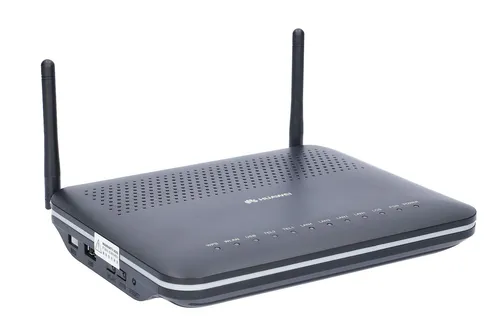

HG8245H is an ONT client terminal made in EPON technology, designed to be used in FTTH.
It is equipped with 2 phone ports, 4 Gigabit Ethernet (LAN) ports, USB and EPON B+ class ports. The device has a built-in wireless network radio module compliant with IEEE 802.11 b/g/n standards and has two antennas with 2 dBi gain each.
It is possible to create multiple SSIDs using WiFi. The terminal is equipped with numerous security features, such as firewall or filtering based on MAC/IP/URL addresses.
The technologies used allow to minimize energy consumption, the maximum power consumption is only 15.5 W.
Numerous Layer 3 functions and bandwidth control (QoS) make HG8245 a very good solution for FTTH networks.
Powered by 12 V, 2 A power supply (included)
Features / filters | |

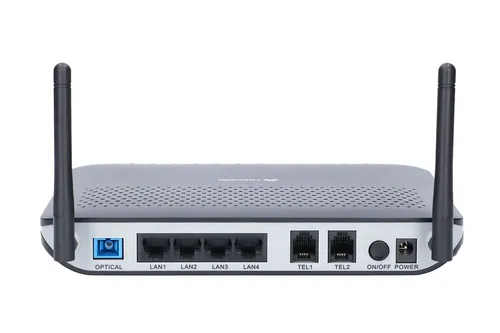

Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
PON standard | EPON |
Wireless network standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, |
USB port | 1x USB |
VoIP ports | 2x POTS |
Interfaces | |
EPC | Class B+ Sensitive reception: -27 dBm Wavelength: US 1310nm, DS 1490nm Secure authentication mode: SN, password or SN + password Upstream/downstream FEC |
Ethernet | 4 ports 10/100/1000BASE-T (RJ45) VLAN filtering Transparent VLAN transmission |
POTS | Two telephone ports SIP and H.248 protocols Media stream and signaling stream separation |

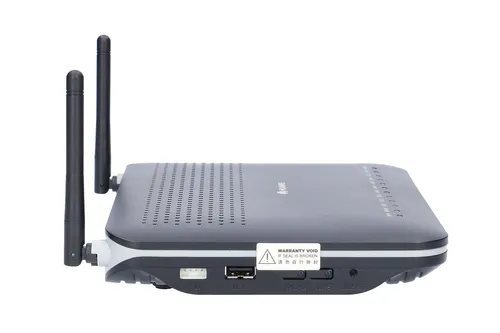

USB | 1 USB 2.0 port Possibility to create a network drive based on FT |
WLAN | 2.4 GHz: IEEE 802.11 b/g/n Antennas Built-in antennas with 2 dBi gain WPS |
Connection type | SC/UPC |
Physical characteristics | |
Dimensions | 195x174x34 mm |
Weight | Approximately 550 g (including power supply) |
Operating temperature | 0 to 40 degrees C |
Operating humidity | 5%-95% RH non-condensing |
Power input | 100 - 240 V AC, 50-60 Hz |
System power supply | 11 - 14 V DC, 2 A |
Static power consumption | 8W |

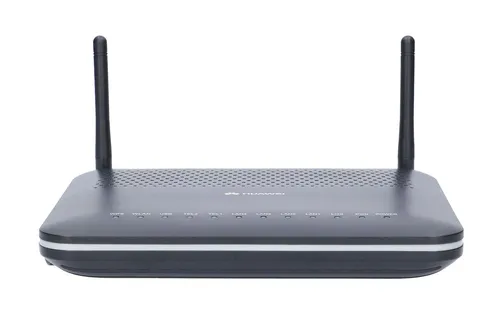

LEDs | WPS/WLAN/USB/TEL/LAN/INTERNET/PON/POW |
Functionality | |
Multicast features | IGMP V2 and V3 snooping IGMP proxy. |
Management functions | Local Web-based and remote management using TR069 and OMCI Monitoring of optical power 802.1ag ethernet OAM Loop-line test of POT ports, PPPoE dialup emulation |
Routing features | NAT function Internet, IPTV and VoIP are automatically assigned to ONT ports Virtual server, triggering port, DMZ and DDNS |
