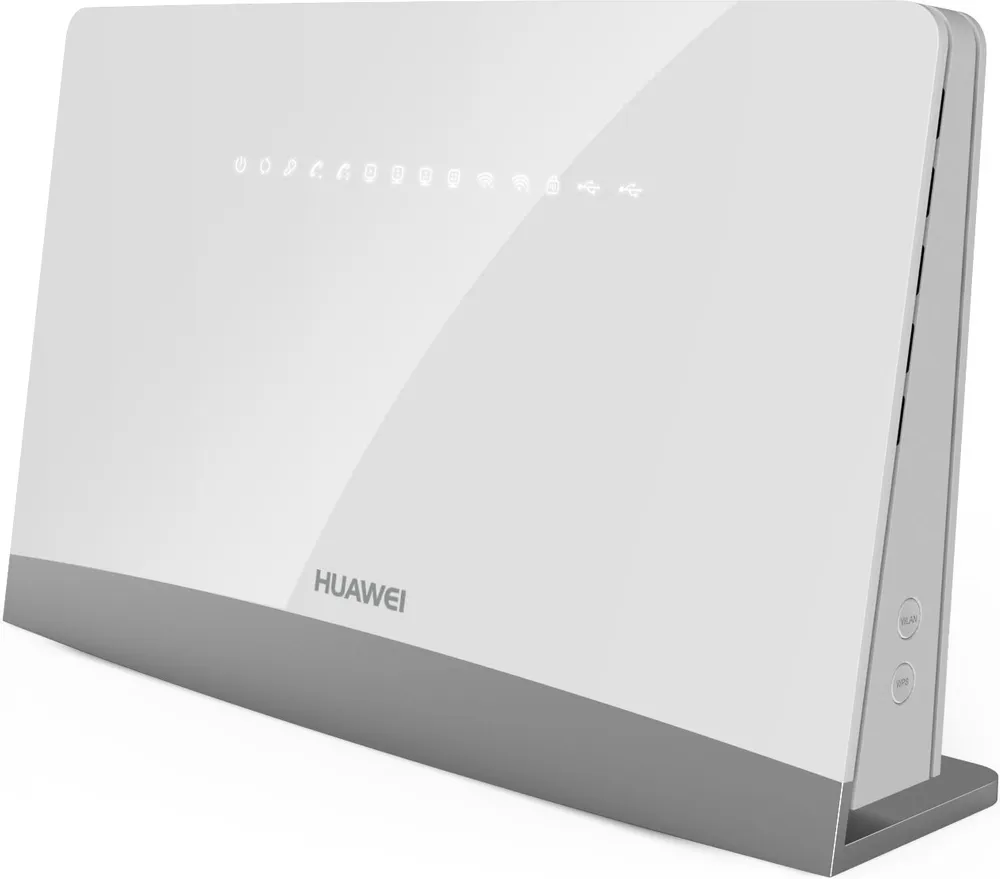

EchoLife HG8245Q, an optical network terminal (ONT), is a high-end residential gateway in the Huawei FTTH solution. With GPON technology, access to the ultra-wideband Internet is provided to home and SOHO users. Huawei ONU HG8245Q provides two POTS ports, gigabit Ethernet ports with automatic GE / FE and Wi-Fi adaptation (dual band 802.11ac). Thanks to the IEEE 802.11ac standard and 3x3 MIMO technology, the device operates at two frequencies - 2.4 Ghz at up to 450 Mbit/s and 5Ghz at up to 1300 Mbit/s. The Huawei ONT HG8245Q offers high performance transmission functions to provide an excellent VoIP, Internet and HD video service experience. The offered product has a GPON type SC/UPC Class B+port. There is a standing tower type enclosure. In the set you will find 12V 3A power supply.
Features / filters | |
Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
PON standard | GPON |
Wireless network standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
USB port | 2x USB |
VoIP ports | 2x POTS |
Interfaces | |
GPON | Class B + The sensitivity of the receiver: -27 dBm Wavelengths : US 1310 nm, DS 1490 nm WBF Flexible mapping between the GEM port and TCONT GPON: compatible with SN authentication or password as defined in G.984.3 Two-way FEC SR-DBA and NSR-DBA |
Ethernet Port | 4 ports 10/100/1000BASE-T (RJ45) |
POTS Port | Maximum REN: 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF |
USB port | USB 2.0 FTP-based network storage SAMBA-based file/print sharing DLNA DMS / UPnP AV (Media Server) |
WLAN | IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 3 × 3 MIMO Antennas with 2 dBi gain WMM Multiple SSIDs WPS 450 Mbit/s (2.4G); 1300 Mbit/s (5G) |
Physical characteristics | |
Dimensions | 285 mm x 174 mm x 70 mm |
Weight | About 1000 g |
Permissible operating temperature | 0°C to +40°C |
Permissible air humidity | 5%-95% RH non-condensing |
Power input | 100-240 V AC, 50/60 Hz |
System power supply | 11-14 V DC, 3 A |
Static power consumption | 6,5W |
Maximum power consumption | 26W |
LEDs | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
Functionality | |
Intelligent connection | Intelligent Wi-Fi coverage Automatic negotiation of SIP / H.248 All port services Parental control L2 / L3 transmission (IPv4): 1G uplink, 2G downlink |
Intelligent handling | Intelligent Wi-Fi sharing Authentication of portal 802.1x Sharing based on SoftGRE Linking one account to two POTS ports |
Smart O&M | IPTV video quality diagnostics OMCI messages of variable length Active / passive ONT detection and isolation Connection emulation and circuit and loop test PPPoE / DHCP simulation ester WLAN emulation |
Layer 3 functions | PPPoE / static IP / DHCP address NAT / NAPT port forwarding ALG, UPnP DDNS server / DNS / DNS client Dual IPv6 / IPv4 and DS-Lite stack static / default routes Multiple services on one WAN port |
Multicast | IGMP v2 / v3 proxy (V300R015C00) / snooping MLD v1 / v2 snooping Multicast services over Wi-Fi |
QoS | Ethernet port speed limit Priority 802.1p SP / WRR / SP + WRR Limitation of packet transmission speed |
Security | Dam SPI Filtering based on MAC / IP / URL |
O&M | OMCI / Web UI / TR069 Dual backup and restore software |
