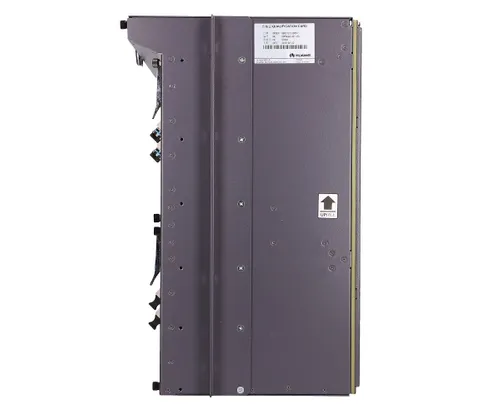

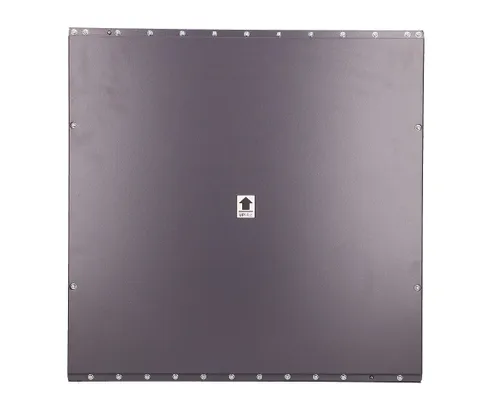

Huawei MA5680T is an OLT terminal designed for GPON networks. The chassis is 10U high and can accommodate up to 14 service boards (GPON). The kit includes one board with 16 ports (model GPFD insert C ).
With MA5680T we can connect up to 28672 subscribers using 16 port boards or 14336 subscribers using 8 port boards. The OLT includes 2 DC power supply boards (PRTE model, 48 V, modules are redundant), 1 X2CS uplink board equipped with 2 SFP slots (10 Gbps), 1 GICF uplink board equipped with 2 SFP slots (combining 2 SFP slots and 2 SFP slots) and 2 SCUN control boards.
