Huawei MA5680T | OLT | GPON C+, 1x X2CS, 1x GICF, 1x GPBD, 2x SCUN, 2x PRTE
CODE: HUAWEI MA5680T OLT GPON GPBD
Contact
Account
Favorite
Cart
The Huawei MA5680T terminal is the first global all-in-one access platform that can provide DSL and optical integrated access. It can provide access to ADSL2+, VDSL2, POTS, ISDN, PON and P2P Ethernet fiber, triple-play service and TDM/ATM/Ethernet leased lines for business customers.
The OLT terminal MA5680T offers a mobile backhaul with high reliability and high density GE/10GE interfaces for cascading remote access devices. Huawei MA5680T helps to simplify the network architecture to enable seamless migration in FTTx networks and substantially reduce TCO.

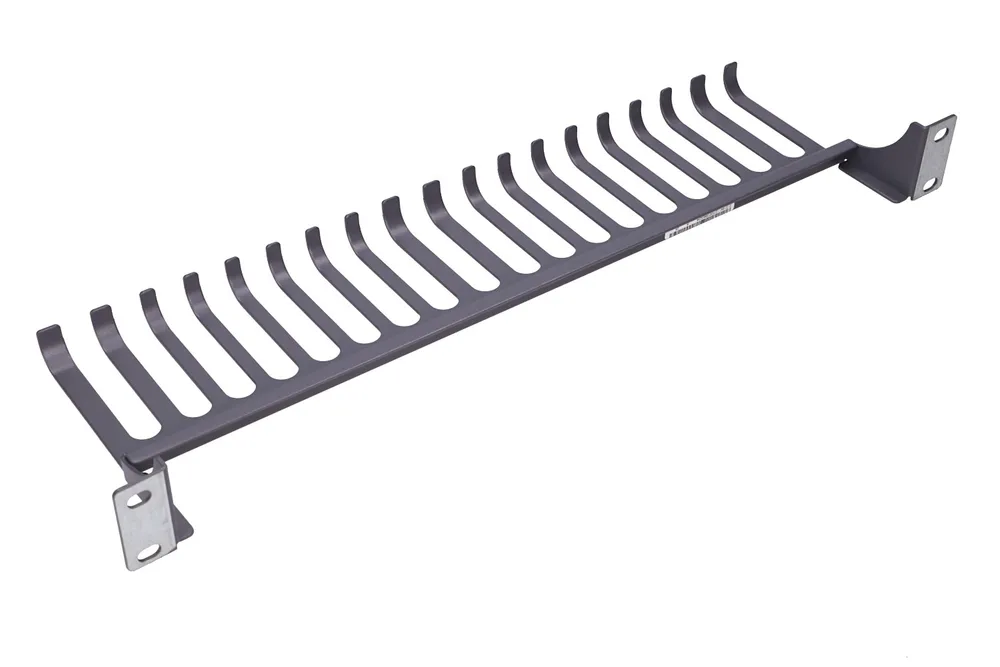

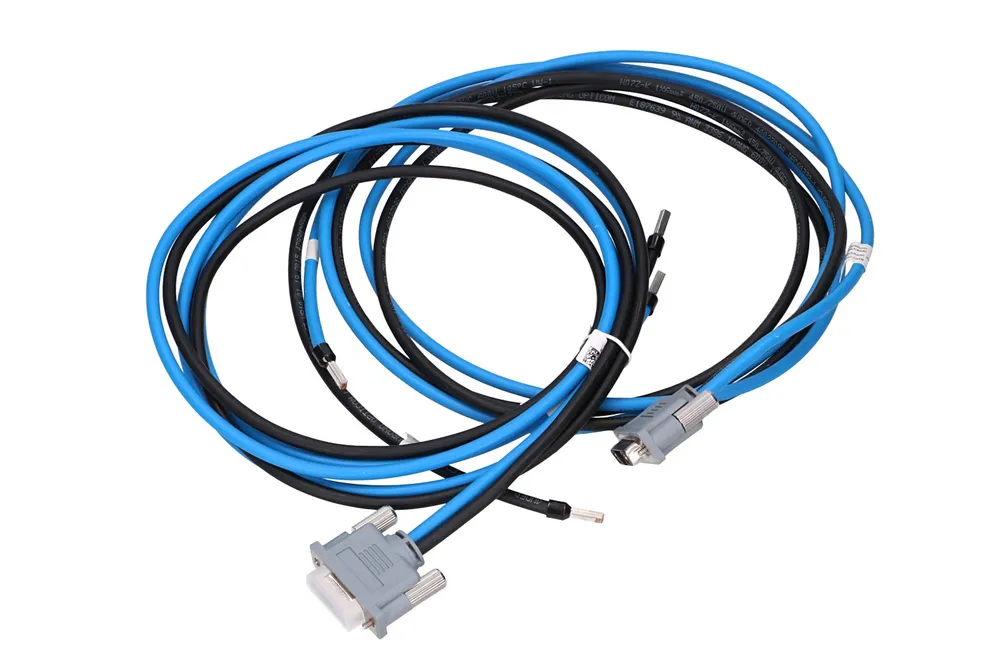

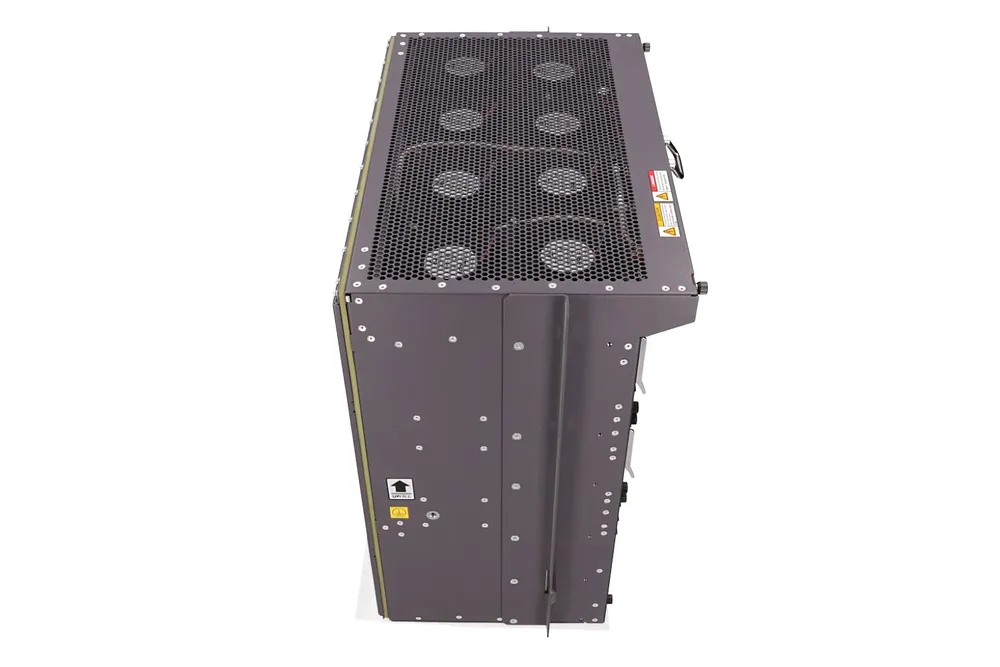

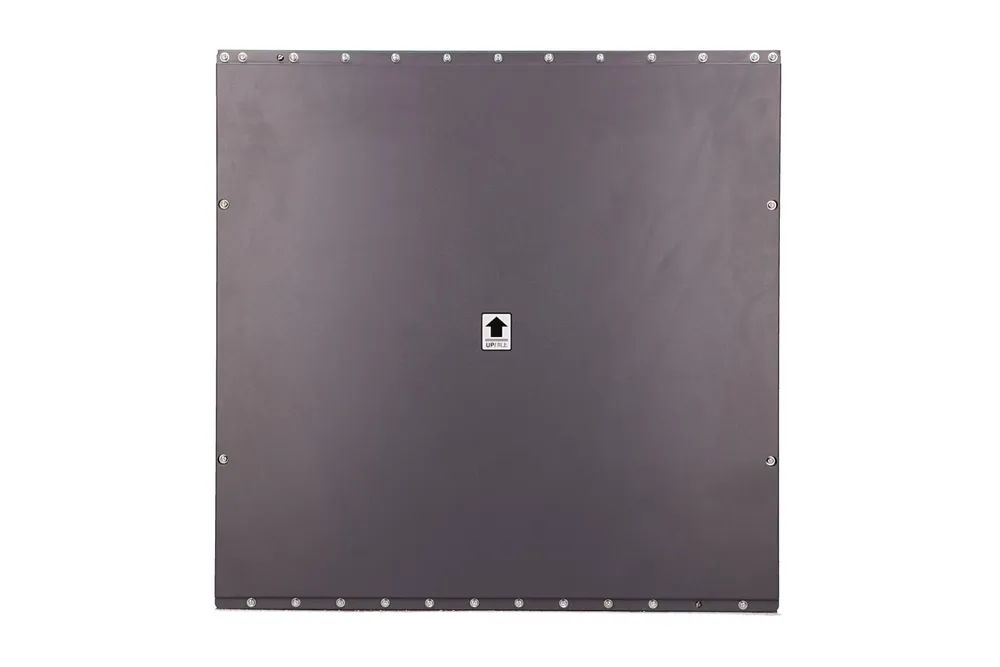

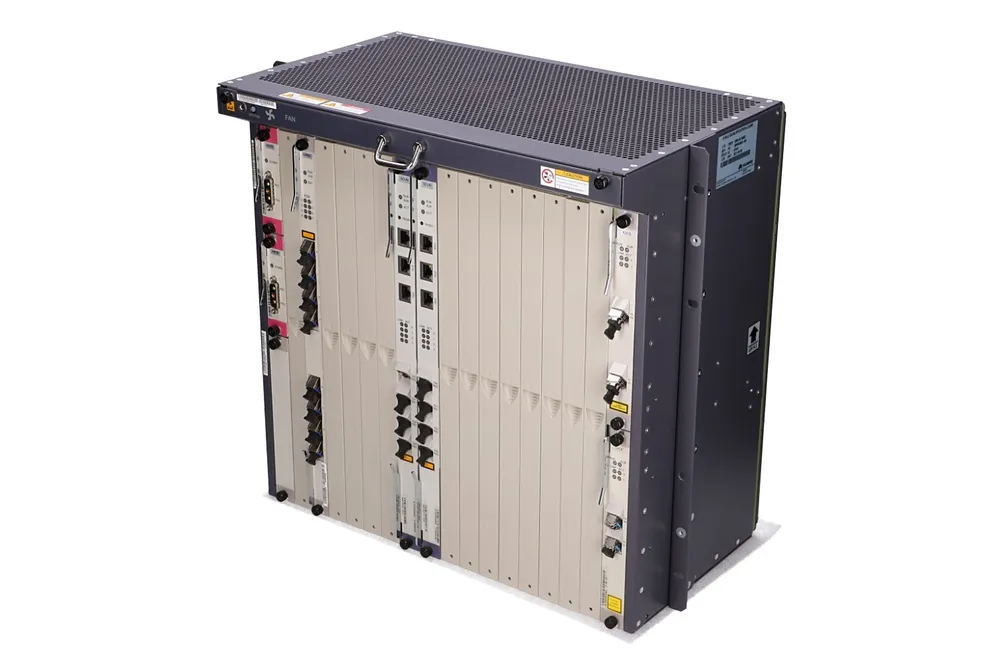

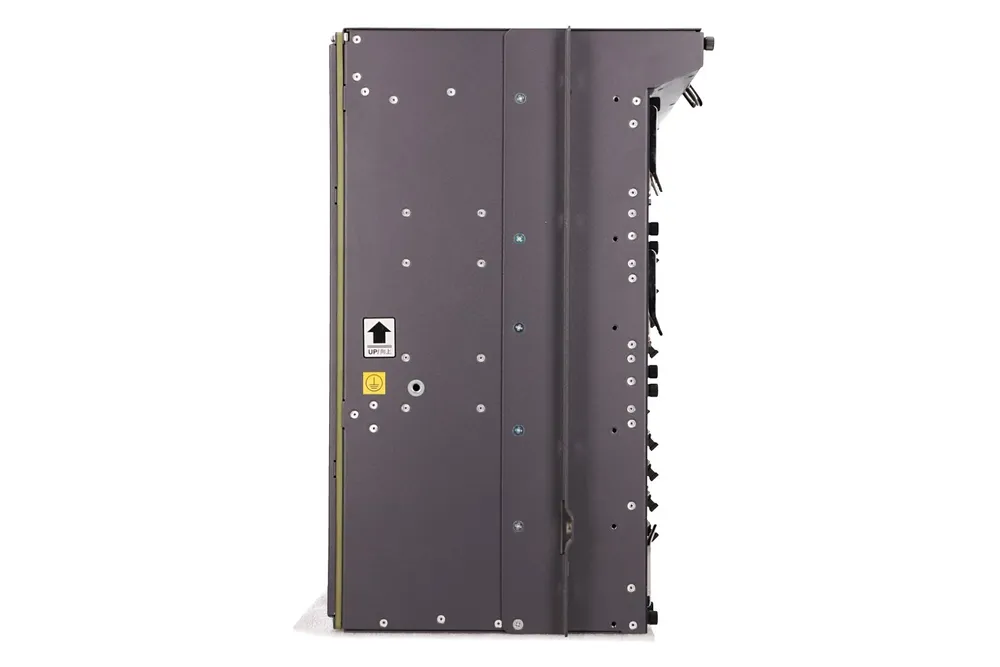

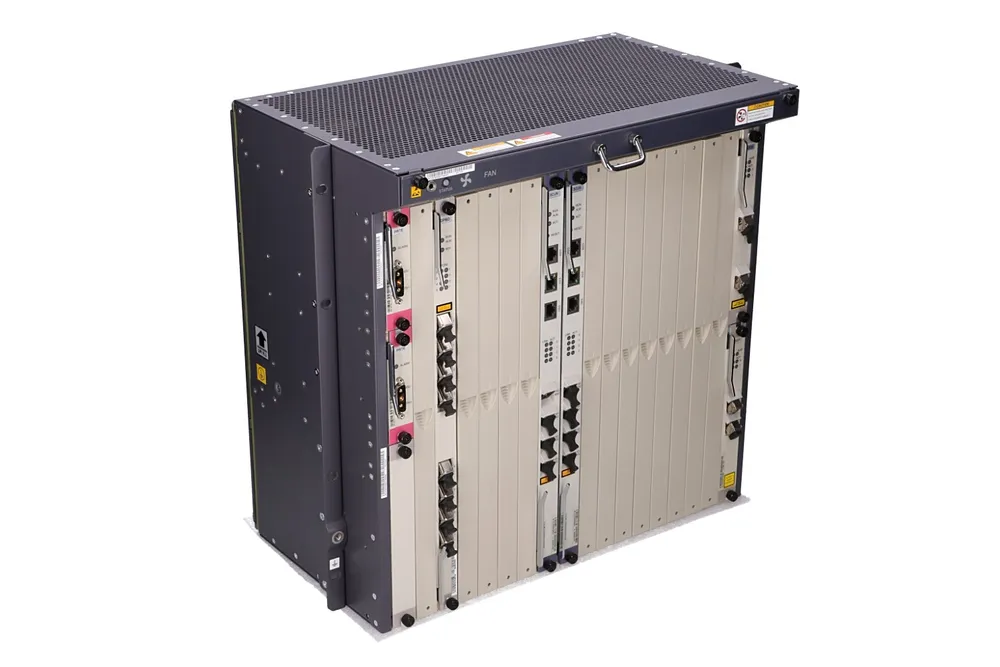

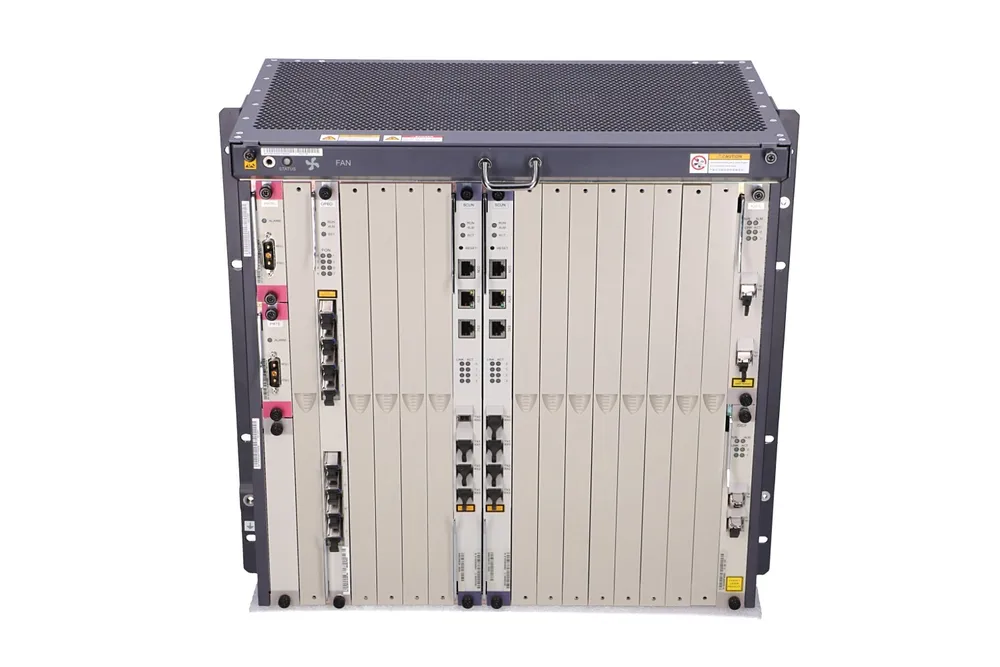

Along with MA5680T terminal, 1 uplink X2CS board equipped with 2 SFP+ slots (10 Gb/s) is included, 1 uplink GICF board equipped with 2 SFP slots (2 SFP and 2 SFP+ in total), 2 SCUN control boards and two PRTE power boards. The whole terminal casing is 10U high, where 14 GPON service boards can be mounted. The maximum number of subscribers to Huawei GPON OLT terminal is 28672 using 16 port boards or 14336 using 8 port boards.
| Technical data | |
| MA5680T GPON OLT | |
| Switching capacity (backplane bus) | 3.2 Tb/s |
| Packet transfer speed L2 | 726 Mp/s in Active / Standby mode 1452 Mp/s in load sharing mode |
| Control board switching capacity | 480 Gb/s in Active / Standby mode 960 Gb/s in Load sharing mode |
| BER at full load | < 10 e-7 |
| MTBF | ~ 45 years |
| Management ports | Out of band RJ45 Console |
| Upstream / uplink ports | 2x SFP+ on X2CS board |
| Power supply | DC |
| Operating temperature | From -25 to 65 degrees C |
| Operating humidity | 5%-95% RH |
| Dimensions | 442 x 275,8 x 441,7 mm (with rack ears) |
| Weight (of the housing itself) | 30.54 kg |
| SCUN | |
| Switching capacity | 480 Gb/s in active / standby mode 960 Gb/s in load sharing mode |
| Total capacity | 10 Gb/s in active / standby mode 20 Gb/s in load sharing mode |
| MAC address plate | 32768 |
| Maximum number of users | 8192 |
| Maximum number of multicast channels | 4096 |
| Maximum number of simultaneous multicast channels | 2000 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| ARP table | 8192 |
| Number of ACL rules | 1024 |
| Maximum frame size | 2052 bytes Using jumbo frame function: 9216 |
| VRF (L3 VPN) | Yes |
| Power consumption | Static: 30 W Maximum: 50 W |
| Dimensions | 25,4 x 237 x 395,4 mm |
| Weight | 0.5 kg |
| X2CS | |
| Ports | 2 SFP+ slots |
| Compatible motherboards | SCUF / SCUN / SCUL / SCUH |
| Power consumption | Static: 17.6 W Maximum: 18 W |
| Maximum frame size | 2052 bytes Using jumbo frame function: 9216 |
| Dimensions | 25,4 x 237 x 197,2 mm |
| Permissible operating temperature | From -25 to 65 degrees Celsius |
| PRTE | |
| The link | 3V3 |
| Voltage | 48 V DC |
| Static power consumption | 1,5 W |
| Dimensions | 25,4 x 237 x 105,1 mm |
The only difference is the capacity, MA5683T supports 6 service slots max, while MA5680T supports 16 service slots max. So the MA5683T has a smaller casing.
No, but you can buy a DC converter from the telecommunications level if you only have an AC power source.
Yes, instead of a GICF uplink disc you can buy a GICG uplink disc, if you are using a GICF, you can buy an electric SFP and then you can have 1000 Base-T as an uplink.
20 hp maximum.
