![MikroTik cAP Lite | Access point | RBcAPL-2nD, 2,4GHz, 1x RJ45 100Mb/s Ilość portów LAN1x [10/100M (RJ45)]](https://www.batna24.com/img2/500/290722_2.webp?20989284221)

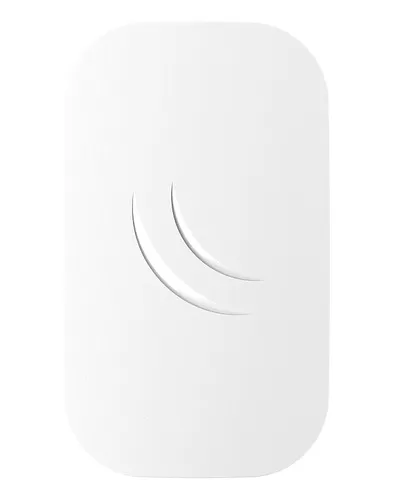

Routerboard AP RBcAPL 2nD cAP Lite is a small device that works as an access point. It is an ideal access point for use in apartments, hotels and places such as airports and shopping centres. It comes with two different housings, which can be easily replaced.

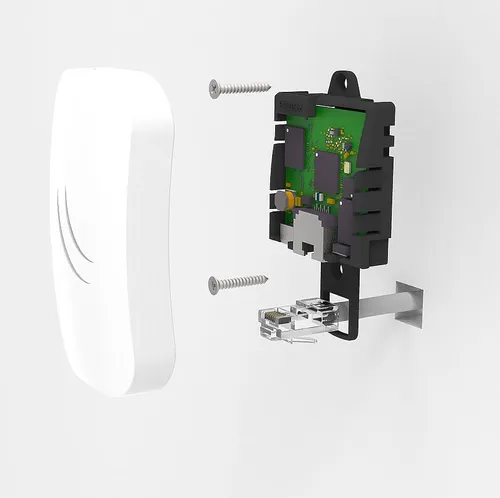

You can design your own access point enclosure and print it on a 3D printer or use the finished designs on the manufacturer's website. Wow!

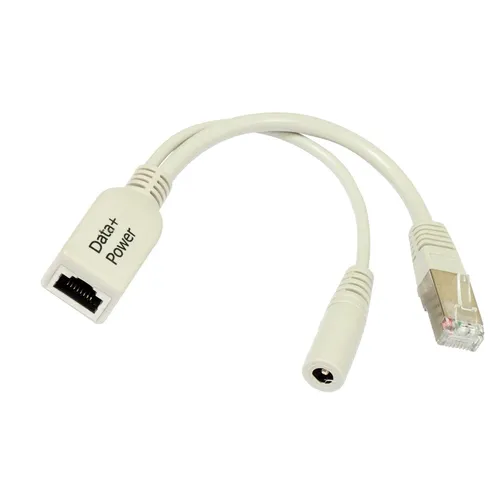

cAP lite supports 802.11b/g/n wireless standards and can be powered via 48V PoE. It can be managed by CAPsMAN (AP System Management System), which provides control of all AP devices from one central location. cAP can also be an autonomous access point with full potential of RouterOS level 4 operating system.
| Features / filters | |
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 1x 10/100BaseTX (RJ45) |
| Operating frequency | 2.4 GHz |
| Wireless network standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, |
| 2.4 GHz | Yes |
| 5 GHz | No |
| AC input voltage | 10 - 60 |
| Antenna gain level (max) | 1.5 |
| Antenna type | Internal |
| Built-in processor | Yes |
| DC-in jack | Yes |
| Depth | 20 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 |
| Flash memory | 16 |
| Harmonized System (HS) code | 85176990 |
| Height | 88 |
| Internal | No |
| Internal memory | 64 |
| Maximum data transfer rate | 54 |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
| Operating system installed | RouterOS |
| Operating temperature (T-T) | -40 - 70 |
| Output voltage | 24 |
| Placement | Ceiling, Wall |
| Power consumption (max) | 4 |
| Power over Ethernet (PoE) | Yes |
| Product colour | White |
| Receiver sensitivity | -96, -89, -93, -74, -71 |
| Reset button | Yes |
| Type of device power supply | PoE 802.3af/at |
| USB connector type | Micro-USB |
| Width | 52 |
| Basic technical parameters: | |
| Product code | RBcAPL-2nD |
| Architecture | MIPSBE |
| CPU | QCA9533 |
| Number of processor cores | 1 x |
| Nominal processor frequency | 650 MHz |
| Dimensions | Wall-mounted housing: 88 x 52 x 20 mm Ceiling housing: ⌀ 88 mm x 20 mm |
| Licence level | 4 |
| Operating system | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Type of storage | FLASH |
| Tested ambient temperature | From -40°C to 70°C |
| MicroUSB input voltage | 5–5 V. |
| PoE in | 802.3af /at |
| PoE at the input, voltage | 10–60 V. |
| Number of DC inputs | 2 (PoE-IN, MicroUSB) |
| Maximum energy consumption | 4 W. |
| Wireless 2.4 GHz maximum transmission speed | 300 Mbit/s |
| Number of 2.4 GHz wireless communication chains | 2 |
| 2.4 GHz wireless standards | 802.11b /g/n |
| dBi antenna gain for 2.4 GHz | 1.5 dBi |
| 2.4 GHz wireless model | QCA9533 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
| 10/100 Ethernet ports | 1x RJ45 |
| Number of USB ports | 1 x |
| Type of USB socket | microUSB type AB |
| Installation Manual of Microtik Routerboard AP RBcAPL 2nD cAP (ENG) | Download |
Access point, or access point, is a device that provides hosts with access to a computer network using a wireless transmission medium such as radio waves. An access point is usually a bridge that connects the wireless local network to the local network.
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
RouterBOARD is a hardware platform from MikroTik, which is a line of routers with RouterOS operating system. Almost all models of RouterBOARD devices can be powered via Ethernet (PoE) and have a connector for external power source.
