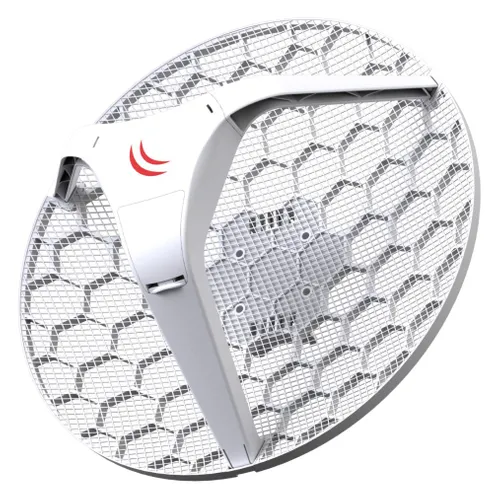

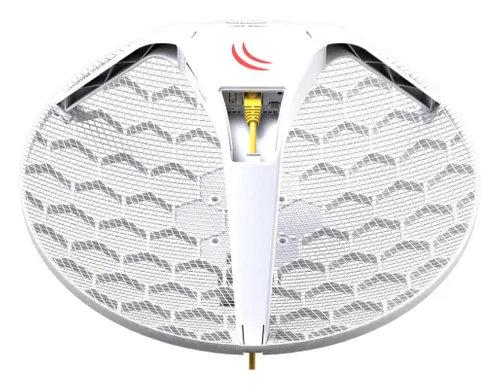

Mikrotik RouterBOARD RBLHG-5N LHG 5 is an antenna with integrated radio module, equipped with an antenna with 24.5dBi gain. The device works in 5GHz band with transmitting power 25dBm. Construction of the device allows for high wind resistance up to 205 km/h. Designed for point-to-point connections or as CPE client device over longer distances.
The grid design provides wind protection and the fact that the antenna element is built into the wireless unit means no loss of cables.

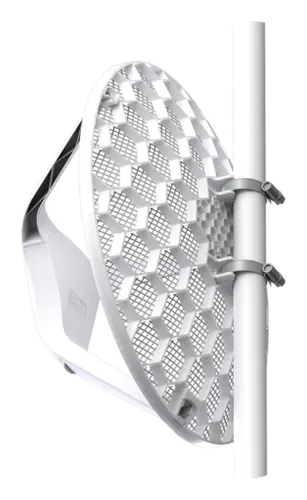

The main beam is 7° wide, the offered product is designed for point-to-point connections or as a customer in point-to-multipoint connections over long distances. An adapter is included in the set, thanks to which the antenna can be tilted at an angle of 5° (from its original position).
Features / filters | |
2.4 GHz | No |
5 GHz | Yes |
AC adapter included | Yes |
AC input voltage | 11 - 30 |
Antenna gain level (max) | 24.5 |
Built-in processor | Yes |
DC-in jack | Yes |
Depth | 222 |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 |
Flash memory | 16 |
Frequency band | 5.15 - 5.875 |
Harmonized System (HS) code | 85176990 |
Height | 391 |
Internal | No |
Internal memory | 64 |
Maximum data transfer rate | 54 |
Mounting kit | Yes |
Networking standards | IEEE 802.11a,IEEE 802.11n |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -40 - 70 |
Package depth | 450 |
Package height | 145 |
Package weight | 1.98 |
Package width | 450 |
Placement | Pole |
PoE adapter included | Yes |
Power consumption (max) | 6 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Receiver sensitivity | -96, -80, -75 |
Transmitting power | 25 |
Weight | 560 |
Wi-Fi data rate (max) | 54 |
Width | 391 |
Product code | RBLHG-5nD |
Architecture | MIPSBE |
Processor | AR9344 |
Number of processor cores | 1 |
Processor Clocking | 600 MHz |
Dimensions | Ø 391 x 222 mm |
Operating system | RouterOS |
Size of RAM | 64 MB |
Built-in memory capacity | 16 MB |
10/100 Ethernet ports | 1x RJ45 |
Tested ambient temperature | From -40 ° C to 70 ° C |
Input voltage range | 11-30 V ( passive PoE ) |
Wind resistance | 205 km/h |
Maximum energy consumption | 6 W |
Weight | 560g |
Width of the main beam | 7° |
Wireless transmission features | Standard 802.11a/n Dual polarity |
Frequency range | THE USA: 5170-5250 / 5725 - 5835 MHz Other regions: 5150 - 5875 MHz |
Antenna gain level (max) | 24.5 dBi |
Number of DC inputs | 1 ( PoE-IN ) |
5 GHz wireless transmission speed Max | 300 Mbit/s |
RouterBOARD is a hardware platform from MikroTik, which is a line of routers with RouterOS operating system. Different RouterBOARD options provide different application scenarios, from running wireless access points and managed network switches to QoS firewalls.
Operating in the 5 GHz band.
Maximum energy consumption: 6 W
