MikroTik RB800 | WiFi Router | 800MHz, 256MB, 3xGE, 4xminiPCI, 1xminiPCI-e, 1xCF, 1xRS232, L6
CODE: RB800 / EAN: 5902560365702
Contact
Account
Favorite
Cart

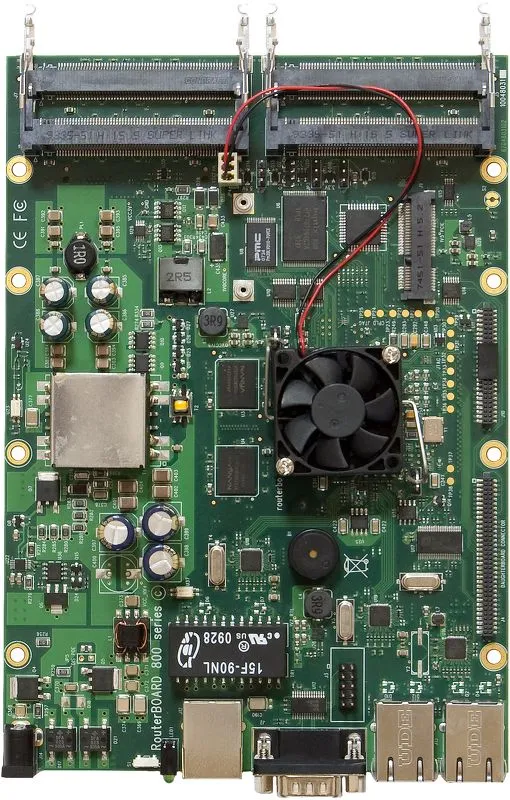

Routerboard RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit Ethernet ports, two expansion card connectors (one PCI and one PCI-e), a miniPCI-e slot and a compact flash slot. Two daughterboard connectors allow you to increase the number of wired and wireless ports, and the new high-powered processor is able to handle them all. The device has 256 MB of RAM and the processor frequency is 800 MHz.

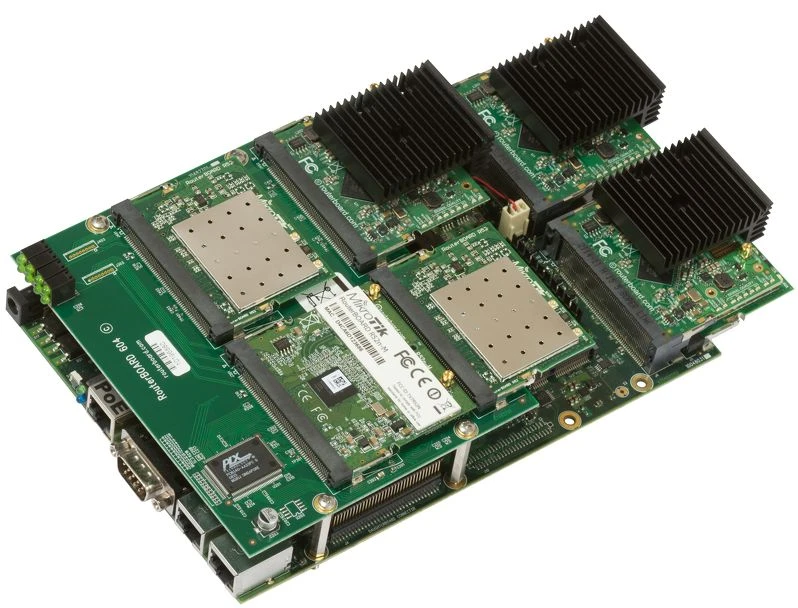

The RB800 wireless platform has a connector on the motherboard, guaranteeing many expansion possibilities. You can buy the RB502 to add two miniPCI slots or the RB604 to add four miniPCI slots and the RB816 will allow you to add 16 Ethernet ports.
This router is a new definition of wireless power. RB800, combined with Mikrotik RouterOS, is the most powerful and advanced wireless router, firewall and bandwidth manager.
| Basic technical parameters | |
| Manufacturer | MicroTik |
| Model | RB800 |
| CPU frequency | 800 MHz |
| Number of CPU cores | 1 |
| Number of RAM | 256 MB |
| Architecture | PPC |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCI | 4 |
| MiniPCI-e | 1 |
| Memory card, type | Yes, CF |
| Socket | 1 |
| 802.3af | Yes |
| PoE in | 802.3af |
| CPU temp monitor | Yes |
| Dimensions | 14 cm x 20 cm |
| Range of working temperature | -40°C to 70°C |
| Licence level | Level6 |
| RS232 port | Yes |
RouterBOARD is a hardware platform from MikroTik, which is a line of routers with RouterOS operating system. Almost all models of RouterBOARD devices can be powered via Ethernet (PoE) and have a connector for external power source.
MikroTik RouterOS is a router's operating system and software that allows a dedicated router to be a PC or Mikrotik RouterBOARD.
Yes, it has PoE power.
