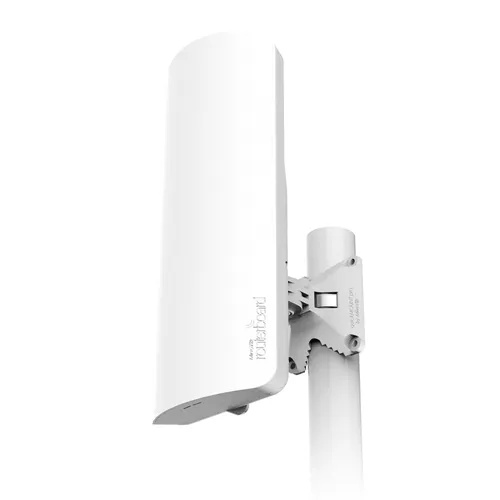

Dual-band (2.4 / 5 GHz) base station with a powerful integrated sector antenna, PoE support, Gigabit Ethernet and SFP ports. One powerfulall-in-one device meets all your outdoor networking needs. Ideal for recreation centers, stadiums and parks!
Managing an outdoor wireless network with multiple access points and client devices? The mANTBox 52 15s base station will get the job done - offering powerful built-in antennas, incredible connectivity and more! PtMP connectivity used to be difficult to achieve efficiently. But that's no longer the case: the mANTBox 52 15s works well in any setup. Dual-band Wi-Fi support allows simultaneous use of 2.4 and 5 GHz devices.
The base station received twice the amount of RAM. A new quad-core processor capable of handling maximum workloads was added. The mANTBox 52 15s easily provides IPsec hardware offload. Depending on the rest of the installation, radio communication up to 20 km is possible using the built-in dual-polarized antenna.
| Features / filters | |
| Antenna gain level (max) | 15 |
| Antenna type | Sector antenna |
| Depth | 140 |
| Frequency band | 2.4/5 |
| Harmonized System (HS) code | 85177100 |
| Height | 82 |

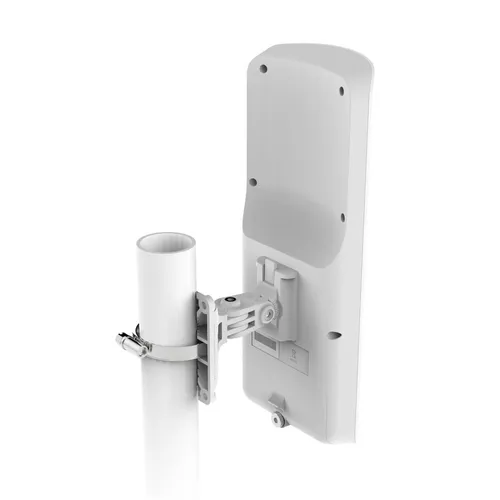

| Mounting | Pole |
| Networking standards | IEEE 802.11b,IEEE 802.11g |
| Operating temperature (T-T) | -30 - 70 |
| Polarization | Dual polarization |
| Power consumption (max) | 21 |
| Quantity per pack | 1 |
| Width | 348 |
| Main technical data | |
| Processor | IPQ-4019 716 MHz, 4 cores |
| RAM | 256 MB |
| ROM | 16 MB Flash |

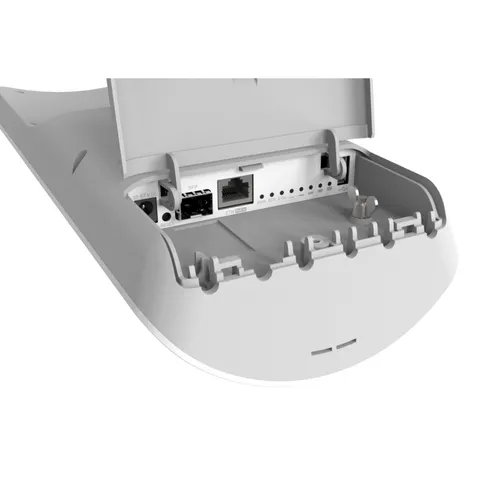

| Network interface | 1x 10/100/1000 Ethernet 1x SFP (1.25 Gbit/s) |
| Additional interface | 1x USB (type A), 1A |
| Output power | Up to 20 dBm for RF (up to 30 dBm for other countries) |
| Wireless communication bands | 2.4 GHz 5 GHz |
| Standards | 802.11b/g/n 802.11a/n/ac |
| MIMO Circuits | 2x2 |
| Maximum data transfer rate | 2.4 GHz - 300 Mbps 5 GHz - 867 Mbps |
| Wireless communication generation | 2.4 GHz - Wi-Fi 4 5 GHz - Wi-Fi 5 |
| Chip for wireless network | IPQ-4019 |
| Antenna gain | 2,4 GHz - 12 dBi 5 GHz - 15 dBi |
| Antenna beamwidth | 2.4 GHz - 90° 5 GHz - 60° |
| Polarity | Vertically and horizontally |
| Power input | 12-57V (DC outlet, passive PoE or 802.3af/at) |
| Number of DC inputs | 2 (DC socket, PoE input) |
| Maximum power consumption | 21W 15W (without connected devices) |
| Cooling | Passive cooling |
| Operating system | MikroTik RouterOS, level 4 |
| Ambient temperature during operation | -40.. 70 °C (tested) |
| Dimensions | 348 mm x 140 mm x 82 mm |
| Brochure | Download |
The device can be powered via:
- PoE in 802.3af/at. PoE in input - voltage 24-57 V - PoE-IN,
DC socket Number of DC inputs - 2, input voltage of DC socket 12-57 V
The operating frequencies of the device are 5 GHz and 2.4 GHz.
