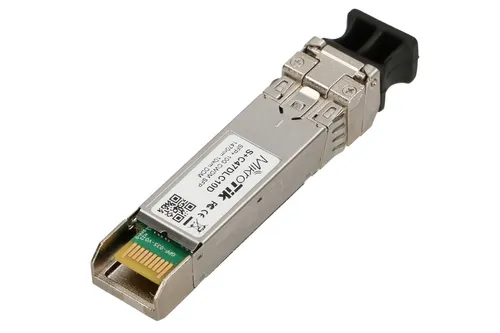

MikroTik S+C47DLC10D is a fiber optic SFP+ insert offering a data transfer rate of 10 Gbps over a distance of up to 10 km. Transmission takes place on 1470 nm wavelengths through a single-mode optical fiber. SFP+ S+C47DLC10D module supports CWDM technology and DDM functions. The S+C47DLC10D insert is equipped with 2 LC output connectors.
| Features / filters | |
| Output connector | LC |
| SFP module - port speed | 10 Gbps |
| Transmission distance | 4-20km |
| Fiber type | SM (Single-Mode) |
| Numbers of pieces in the package | 1-pack |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1470 nm |
| Basic technical parameters | |
| Type of module | SFP+ |
| Transmission speed | 10 Gbps |
| Reach | 10 km |
| Wavelength | 1470 nm |
| Type of transmission | Single-Mode |
| Kind of asshole | CWDM |
The SFP RJ45 module allows you to connect Ethernet cables to the SFP sockets of your network devices via a special insert, which is equipped with an RJ45 port.
Check if the ports on the device are SFP or SFP+ ports. The latter can operate at 10 Gbps. Then we select the fiber optic cable. Single mode fiber is usually used for longer distances, while multimode fiber is used for shorter distances.
SFP+ is an extension of the SFP standard adapted to a transmission rate of 10 Gbit/s.
