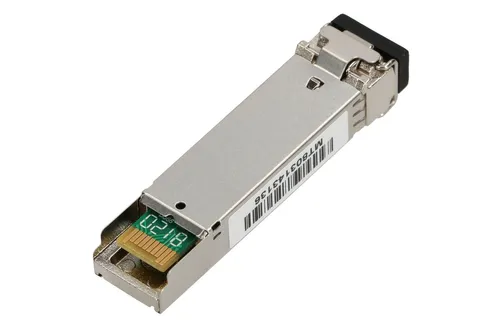

MikroTik S-C55DLC40D is a single-mode SFP module designed for data transmission at 1550 nm using single-mode optical fiber. It enables data transmission at a speed of 1.25 Gbps over a distance to 40 km. This SFP optical module supports CWDM and is equipped with 2 LC connectors.
| Features / filters | |
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Over 20km |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 40000 |
| SFP transceiver standard | CWDM |
| SFP transceiver type | Fiber optic |
| Type of SFP duplex | Physical (two fibers) |
| Wavelength | 1550 nm, 1550, |
| Basic technical parameters | |
| Type of module | SFP |
| Transmission speed | 1.25 Gbps |
| Distance | 40 km |
| Type of transmission | Single-Mode |
| Wavelength | 1550 nm |
| Output connectors | 2 x LC |
| Duplex type | CWDM |
The SFP RJ45 module allows you to connect Ethernet cables to the SFP sockets of your network devices via a special module, which is equipped with an RJ45 port.
Check if the ports on the device are SFP or SFP+ ports. The latter can operate at 10 Gbps. Then we select the fiber optic cable. Single mode fiber is usually used over longer distances, while multimode fiber is used over shorter distances.
SFP+ is an extension of the SFP standard adapted to a transmission rate of 10 Gbit/s.
