MikroTik SXT LTE kit UK | LTE Router | RBSXTR&R11e-LTE, LTE 150Mb/s, 2x RJ45 100Mb/s, 1x miniPCI-e, 2x SIM
CODE: RBSXTR&R11E-LTE UK VERSION
Contact
Account
Favorite
Cart

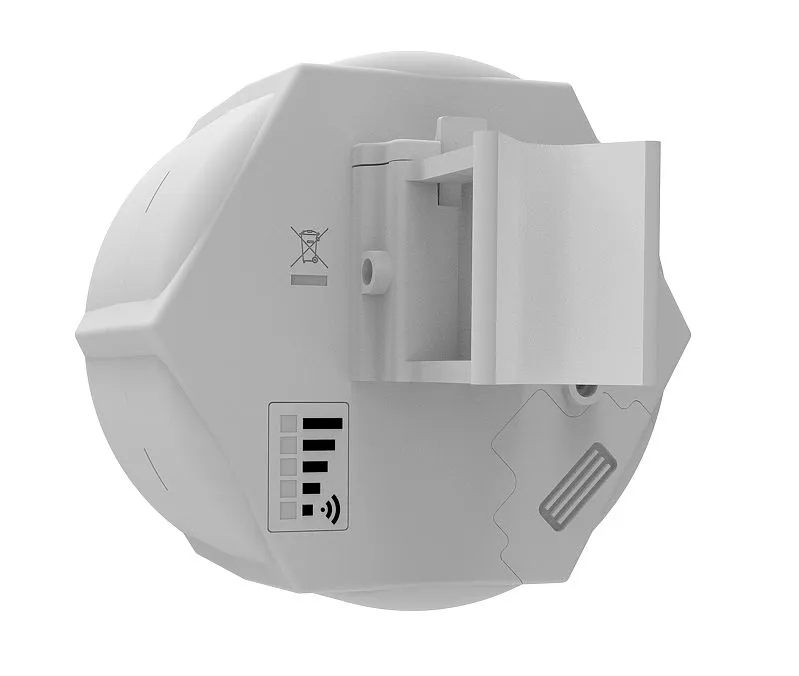

Mikrotik SXT LTE is a device designed for remote locations in cellular network coverage, which can provide connectivity in your building thanks to its professional LTE chip and high-gain antenna design.
Mikrotik SXT LTE comes with two Ethernet ports, so you can use it to power another device. It features 24V power supply but can support full range of 12-57V and 18-57V with PoE output function and is 802.3af/at compliant. The device has a built-in high-quality 2G/3G/4G/LTE Category 4 modem, with speeds up to 150 Mbit/s download and 50 Mbit/s upload.
It also offers two micro-SIM slots for a backup connection.
| Basic technical parameters | |
| CPU | QCA9531 650 MHz |
| RAM size | 64 MB |
| Flash storage | 16 MB |
| 10/100 Ethernet Ports | 2 |
| LTE antenna amplification | 9 dBi |
| Antenna beamwidth | 60° |
| LTE category | 4 (150 Mbps download, 50 Mbps upload) |
| Category 2G | Grade 12 |
| 3G category | R7 (Upload 21 Mbps, Download 5.76 Mbps) |
| SIM slot | 2 (micro-SIM) |
| PoE input | Yeah, on Ether1 |
| PoE output | Yes, on Ether2, max output per port ( <30 V): 600 mA, maks. wyjście na port (wejście >30 Vinput <30 V): 600 mA, maks. wyjście na port (wejście >): 400 mA max. total (A): 600 mA |
| Input voltage supported | 18-57 V (Passive PoE, 802.3af/at on Ether2) |
| Dimensions | 140 mm × 140 mm × 103 mm |
| Operating temperature range | From -40°C to 60°C |
| Licence level | 3 |
| Operating system | RouterOS |
| Maximum power consumption | 6 W |
Each router is pre-configured with IP address 192.168.88.1/24 on ether1 port. The default user name is admin, no password. When you log in for the first time, please create a new user with password in the "full" group, log in again, and delete the default admin user.
Of course it is. Access to the router is protected by username and password. Additional users can be added if necessary. Each user group can be assigned specific permissions. Remote access to the router can be restricted by user, IP address. Filtering firewall is the simplest way to protect the router and network.
RouterOS features include firewall, routing, MPLS, VPN, wireless, DHCP, hotspot, QoS, Proxy and more.
