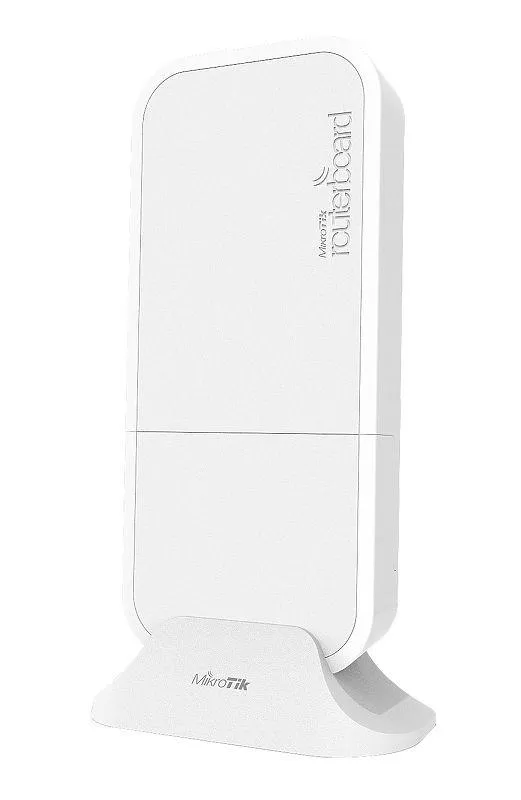

Mikrotik The RBWAPR-2ND&R11E-LTE wAP LTE routerboard is a small, weather-resistant wireless access point and router with a built-in mobile modem that supports 2G 3G and 4G (LTE) connections. Connect to the built-in 802.11b/g/n wAP wireless interface and access the LTE network from your phone or any other wireless device. WAP LTE also has one Ethernet LAN 10/100 port for your wired devices. WAP LTE has a RouterOS level 4 system installed.

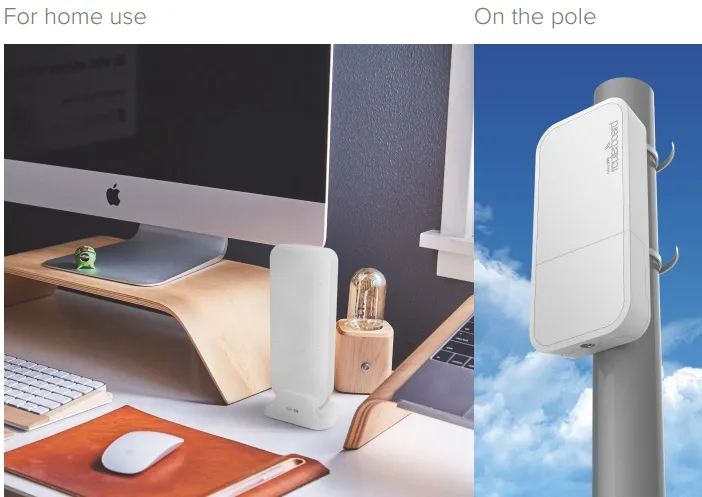

Routerboard wAP LTE devices are waterproof access points for installation outdoors, in a vehicle, on a veranda or anywhere where wireless access from a phone or computer is required. Together with Mikrotik WAP LTE Routerboard kit you also get a desk stand, so you can place the device inside the building near the window. The Fast Ethernet port allows direct wired connection.

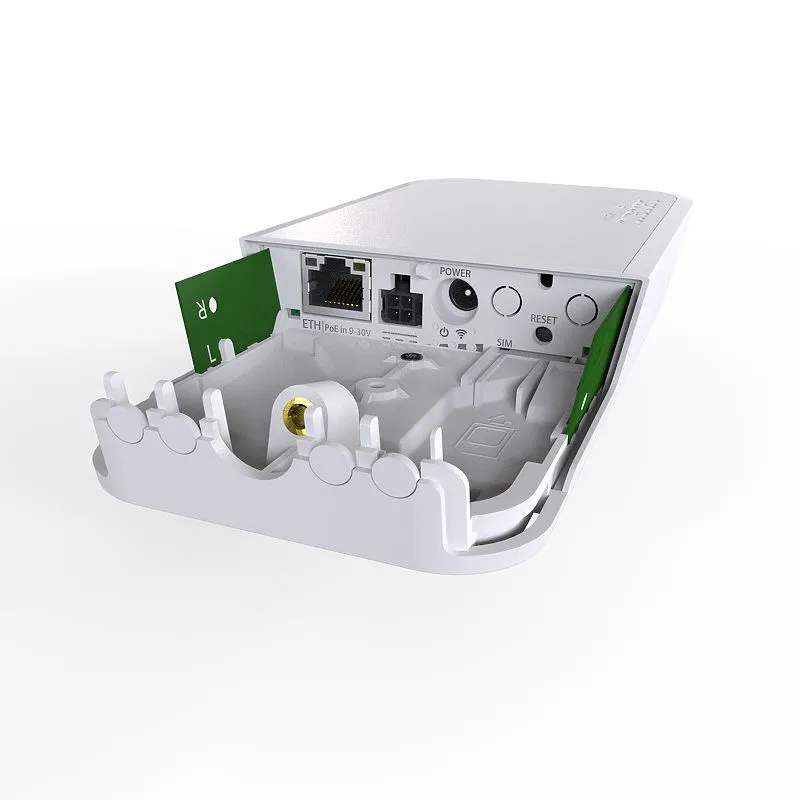

The LTE module is connected to two internal antennas with u.FL connectors, so if you want, you can disconnect the connectors and add your own external LTE antenna for longer range. The unit has several power options - PoE 9-30V power supply via Ethernet port, DC socket and Automotive connector, very useful in vehicles like car, bus or train.
RBwAPR-2nD and R11e-LTE includes an LTE modem that supports international LTE bands 1,2,3,7,8,20,38 and 40.
RBwAPr 2nD comes without an installed LTE card (empty miniPCIe slot), so you can use your own LTE card.
|Features / filters|
|Communication type||4G/LTE, Wi-Fi,|
|LTE category||Cat.4 (150Mb/s Download, 50Mb/s Upload)|
|Maximum wireless transmission speed||300 Mb/s|
|Number of LAN ports||1x 10/100BaseTX (RJ45)|
|Operating frequency||2.4 GHz|
|Wireless network standards||IEEE 802.11n, IEEE 802.11g, IEEE 802.11b,|
|Additional connectors / interfaces||1x miniPCI-e|
|LTE bands||B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B20 (800MHz), B7 (2600MHz), B8 (900MHz), B38 (2600MHz), B40 (2300MHz),|
|Type of device power supply||Power supply, Passive PoE,|
|Basic technical data|
|Nominal processor frequency||650 MHz|
|Number of processor cores||1|
|10/100 Ethernet ports||1|
|Wireless function||Built-in 2.4 GHz 802.11b/g/n, dual-chain|
|Wireless antenna gain||2 dBi|
|LTE antenna gain||2 - 4.5 dBi (with uFL connector)|
|Antenna beam width||360°|
|Wireless IC model||QCA9531|
|LTE category||4 (150Mbps Downlink, 50Mbps Uplink)|
|Category 3G||R7 (21Mbps Downlinks, 5.76Mbps Uplink)|
|Supported input voltage||9 V - 30 V (Passive PoE)|
|Dimensions||185 x 85 x 30 mm|
|Working at temperature||-40°C .. +60°C tested|
|Operating system||RouterOS system|
|Maximum energy consumption||8W|
|Wireless network specification|
|1MBit/s||22 Tx (dBm), -96 Rx (dBm)|
|11MBit/s||22 Tx (dBm), -89 Rx (dBm)|
|6MBit/s||20 Tx (dBm), -93 Rx (dBm)|
|54MBit/s||18 Tx (dBm), -74 Rx (dBm)|
|MCS0||20 Tx (dBm), -93 Rx (dBm)|
|MCS7||16 Tx (dBm), -71 Rx (dBm)|
|LTE bands (FDD)||1(2100)/2(1900)/3(1800)/7(2600)/8(900)/20(800)|
|LTE bands (TDD)||38(2600)/40(2300)|
User name is 'admin' and there is no password (press 'Enter'). To change password use '/password' command.
MikroTik RouterOS is the operating system of the router and software that allows the PC or Mikrotik RouterBoard to be a dedicated router.
PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.
