Mikrotik The RBwsAP-5Hac2nD WsAP ac Lite routerboard is an excellent access point (AP) and router for networks with a large number of guests (hotels, shopping centers, hospitals, airports, etc.). It is equipped with an unobtrusive housing that fits into standard wall sockets. The device works under control of Mikrotik firmware. It works on routers level 4. Mikrotik routerboard wsap ac lite wsap5hac2nd dual band has LEDs, appropriate frame memory, 3 RJ45 100Mbps ethernet ports. If you want your wireless networks to work perfectly, select the access point of the routerboard wsap ac lite with 650mhz cpu. We will be happy to help you choose your network equipment and provide technical support. We offer wifi routers and other network devices. Ask a question - we are at your disposal.
WsAP has three Ethernet ports: one on the back for easy PoE-in and two LAN ports behind the front flap. The device provides two simultaneous transmissions in 2.4 GHz and 5 GHz bands, supports 802.11ac and slightly older standards. It also has USB 2.0 port for charging mobile devices or for storage. The device is also equipped with a telephone socket (RJ11) to connect a landline phone in the hotel room for easy cable management. As a separate accessory you can order a special set of screws (product code K50), so that only the owner can open the bottom flap.
Features / filters | |
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 2x 10/100BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, |
2.4 GHz | Yes |
5 GHz | Yes |
Antenna features | Integrated antenna |
Antenna gain | Under 10dbi |
Antenna gain level (max) | 1.5 |
Antenna type | Integrated |
Application | Indoor |
Built-in processor | Yes |
Depth | 126 |
Ethernet LAN (RJ-45) ports | 3 |
Ethernet LAN data rates | 10,100 |
Flash memory | 16 |
Harmonized System (HS) code | 85176990 |
Height | 30 |
Internal | Yes |
Internal memory | 64 |
LED indicators | Yes |
Maximum data transfer rate | 100 |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Operating relative humidity (H-H) | -40 - 60 |
Placement | Wall |
Power consumption (typical) | 10 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Type of device power supply | Passive PoE |
USB 2.0 ports quantity | 1 |
WAN connection | Ethernet (RJ-45) |
Width | 112 |
Basic technical parameters | |
Product code | RBwsAP-5Hac2nD |
Processor | QCA9531 |
Processor frequency | 650 MHz cpu |
Memory RAM | 64 mb of frame memory |
Type of memory | Flash |
Size of memory | 16 MB |
10/100 Ethernet ports | 3 |
Wireless network | 2.4 GHz and 5 GHz |
Wireless regulation | The frequency of operation of the device may be limited by national regulations. |
Frequency of operation | 2.4 GHz: 2412 - 2484 MHz 5 GHz: 5150 - 5875 MHz |
Wireless network standards | 802.11b/g/n/ac |
Number of channels | 2.4 GHz: 2 5 GHz: 1 |
Antenna gain | 2.4 GHz: 1.5 dBi 5 GHz: 3 dBi |
Power options | PoE-in 802.3af/at, PoE-out passthrough (Ethernet 3), 18-57 V |
Power consumption | 10 W |
Dimensions | 112 x 126 x 30 mm |
Operating temperature | -40°C .. +60°C tested |
LEDs | 7x LED |
System | RouterOS |
Licence level | 4 |
USB | 1 USB 2.0, max. output voltage for external devices-500 mA |

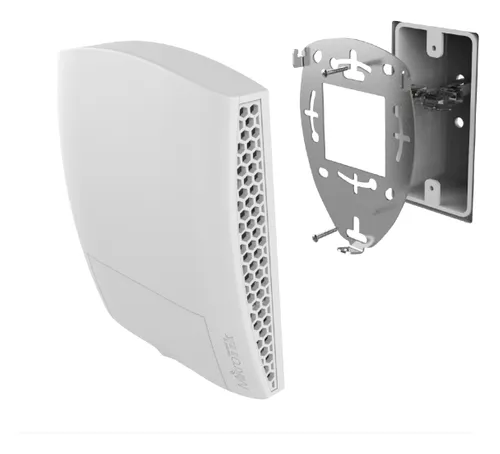

wsAP ac lite is a two-band access point adapted to wall mounting. It has a mounting bracket to fit most wall sockets and a casing that blends in well.
MikroTik wsAP ac lite Access Point is ideal for hotels, hospitals or airports.
Excellent specification compared to the price of the device. It blends well into the surroundings. An additional advantage of MikroTik wsAP ac lite is the USB port, which allows you to charge your phone for example.
