Optix | universal fiber optic cable Z-XOTKtcdD 24F | single-mode, G.652D, 4km, 5,2 mm, 1,2 KN, aramid

CODE: 24F OPTIX ARAMID Z-XOTKTCDD

Optix | universal fiber optic cable Z-XOTKtcdD 24F | single-mode, G.652D, 4km, 5,2 mm, 1,2 KN, aramid

CODE: 24F OPTIX ARAMID Z-XOTKTCDD
0,40 GBP without VAT (net)
Out of stock
Fiber standard: G.652.D
Number of fibers: 24F
Show more parameters

About product

Optix Aramid Z-XOTKtcdD 24J is a lightweight cable with a single-tube construction characterized by high flexibility and resistance despite its small diameter. The cable is filled with hydrophobic gel to protect against moisture and vibration. Aramid fibers were used for additional structural reinforcement. Two ARP or FRP rods were embedded in the outer HDPE layer. Ripcords allow for easy shell removal.

Features

  • For overhead/sewer installation
  • Installation on spans (NESC Heavy) up to 80 meters
  • Fully dielectric design
  • Resistance to low and high temperatures
  • Reinforcement with high-quality aramid fibers
  • Robust HDPE shell
12F OPTIX ARAMID Z-XOTKTCDD UNIVERSAL FIBER OPTIC CABLE 12J 652D batna24

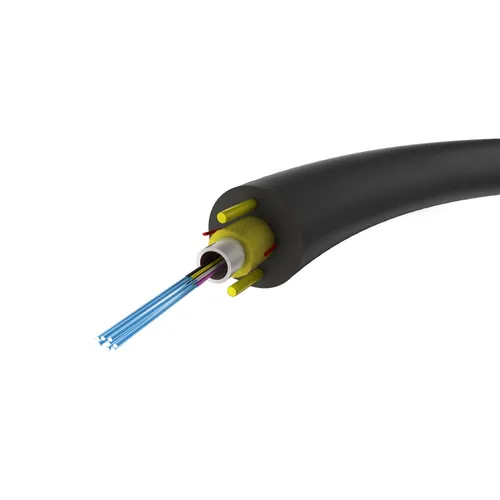

Elements of cable construction

  • 1. fiber optics in 0.25mm color coating
  • 2. hydrophobic gel
  • 3. loose tube
  • 4. aramid fibers
  • 5 ARP/FRP bars
  • 6. pipcords for tearing the outer shell
  • 7. outer shell HDPE (black), UV resistant

Specification

Features / filters
Fiber standard G.652.D
Number of fibers 24F

Technical data
Cable version 1T24J
Total number of fibers 24
Weight 25 kg/km (±10%)
Cable diameter 5.8mm (±0.4mm)
Tube diameter 1.6/2.4mm (±0.15)
Load-bearing element / perimeter reinforcement aramid fibers
Reinforcing element ARP (2x0.5)/FRP (2x0.5) (±0.1mm)
Type and thickness of coating HDPE (1.5mm) (±0.2mm)
Temperature during installation -10°C to 50°C
Operating temperature -10°C to 70°C
Minimum temporary/permanent bending radius 20D/10D
Maximum cable tension force (installation) 1200N
Maximum cable tension force (operational) 600N
Crush resistance 500N (100x100mm) for 60 seconds
Resistance to repeated bending 30 cycles [(20xD), 1Kg].
0,40 GBP without VAT (net)
Out of stock
