TheOrvaldi 750SP is an uninterruptible power supply for home and office. The power supply has circular outlets that are located on the top of the unit like a typical power strip. This model has 6 output outlets, of which:
| Features / filters | |
| Battery voltage in UPS | 12V |
| UPS power (VA) | 750 |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery capacity | 7 |
| Battery voltage | 12 |
| Cable length | 1.5 |
| Cold start | Yes |
| Depth | 260 |
| Form factor | Compact |
| Height | 80 |
| Input frequency | 50 |
| Input operation voltage (max) | 240 |
| Input operation voltage (min) | 220 |
| LED indicators | Activity |
| Noise level | 40 |
| Number of batteries supported | 1 |
| Output power | 450 |
| Output power capacity | 750 |
| Product colour | Black |
| Surge protection | Yes |
| UPS topology | Line-Interactive |
| USB port | Yes |
| Waveform | Pseudo sine |
| Weight | 6 |
| Width | 170 |
| Permissible voltage range | 220/230/240 V AC |
| Frequency | 50Hz |
| Voltage shape | PWM - approximated sine wave |
| UPS Power | 750 VA / 450 W |
| Voltage stabilization | /- 3% |
| Switchover time | 2ms - 5ms |
| DC Bus | 12V/7Ah |
| Charging time | 8 hours to 90% charge |
| Hold time | 6-20 minutes depending on load power |
| Voltage too high/low | Switching to battery operation |
| Overload/short-circuit | Fuse and current limitation for both mains and battery operation |
| Low battery | Two-stage deep discharge protection |
| Noise filtering | EMI/RFI filter |
| Type of sockets | German or French |
| Number of sockets (pcs) | German/French (6): 3 with battery backup and 3 with surge protection |
| Dimensions (Length, Width, Height) | 260mm x 170mm x 80mm |
| Weight (kg) | 6 |
| Signaling | Green - mains operation, Flashing yellow - battery operation |

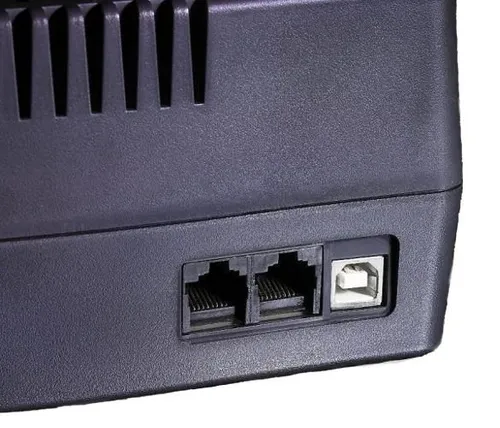

| Fax/Modem/Internet Protection | RJ45 |
| Communication | USB |
| Cold start | Allows the UPS to run without line voltage |
| Operating Instructions | Download |
This is an uninterruptible power supply that is great for home and office use.
We recommend Orvaldi 750SP, which has 6 sockets directed upwards, which will ensure comfort of use for everyone. We also offer its successor, with slightly better power supply - Orvaldi 900SP.
It takes ~8 hoursfor the power adapter to charge 90% of the battery .
