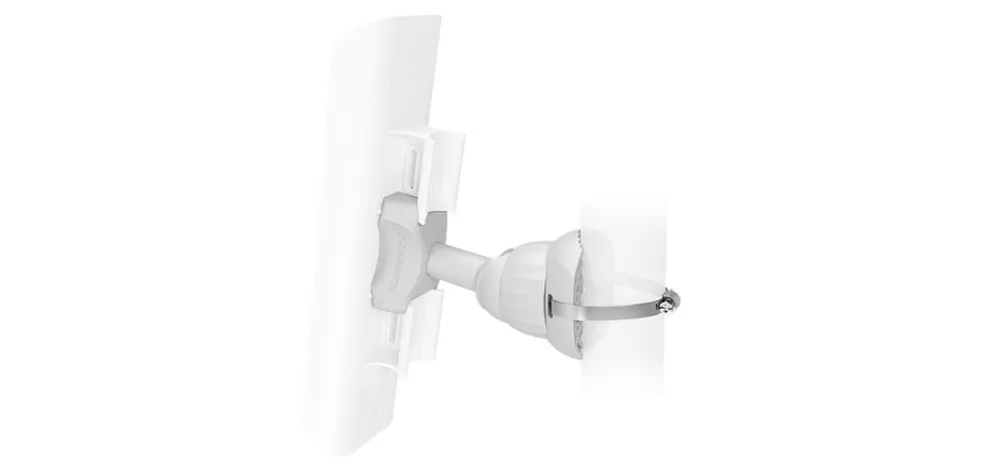

Nano Bracket NSM from RF Elements is a wall and mast mounting bracket designed for Ubiquiti NanoStation M and mounting the most popular CPE devices on the market. It allows for three-axis positioning on a ball hinge and easy and quick assembly of the device. The bracket is made of durable UV-resistant ABS plastic and the mounting elements are made of stainless steel.

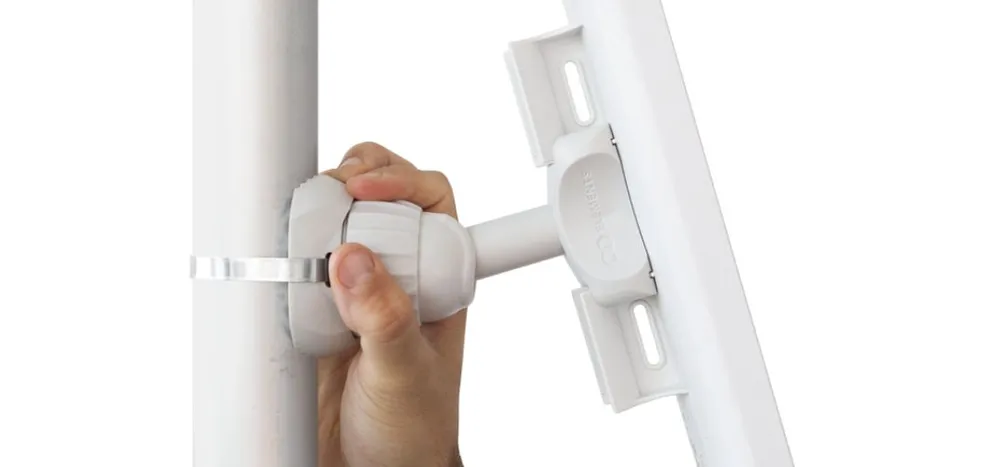

NanoBracket designed for NanoStation M series by Ubiquiti Networks is a fourth generation bracket project from RF Elements. It is characterized by a stable handle made of UV-resistant ABS plastic. Precise adjustment of double polarized antennas is an important factor in achieving the best performance in radio waves. The ball hinge implemented in NanoBrackets allows smooth and precise adjustment of 70° inclination.
Technical data | |
Materials | Bracket, handle - UV and weather resistant ABS plastic Fittings, mounting elements - stainless steel |
Degree of combustibility | UL 94 HB |
Pole mounting diameter | 40 - 60 mm |
Wall-mounting | Yes |
Resistance to temperature | -30°C to 60°C (-22°F to 140°F) |
Wind resistance | 120 km/h |
Weight | 0.23 kg / 0.5 lbs - single unit per package 12.6 kg / 27.8 lbs - carton (50 pieces) |
Dimensions | Single retail box: 8.4 × 7 × 17 cm 50 units of Carton Box: 45 × 38 × 38 cm |
Compatibility | |
Ubiquiti Networks | Ubiquiti NanoStation M Series |
Datasheet RF Elements NanoBracket for NSM - ENG | Download |
