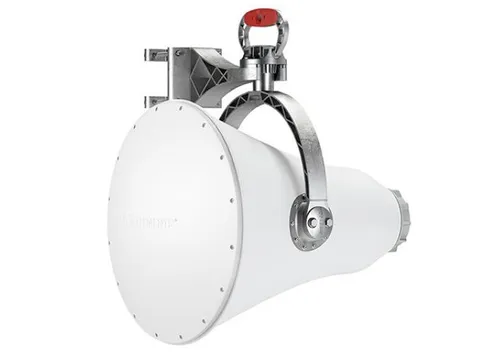

RF Elements UH-TP-5-24 | Directional antenna | UltraHorn, 5,18 - 6,4GHz, 24dBi, TwistPort




UltraHorn TP series are high quality, scalar horn antennas. RF Elements products have all the advantages of scalar antennas, providing ultrasonic noise attenuation, lossless radio connection and symmetrical beam without side loss. Unique radiation properties make these perfect antennas for long-range links in high noise environments.
UltraHorn™ TP antennas are directional antennas, the signal without any side loss is focused on the main beam only. The precise radiation patterns of UltraHorn TP antennas allow you to create long-range links in noisy environments with unprecedented performance. The optimal beam width makes focusing very easy compared to other point-to-point antennas. UltraHorn™ TP antennas are equipped with our proprietary TwistPort connector, a patented waveguide port with a quick-lock function. The absence of coaxial RF connectors or RF cables makes the TwistPort virtually lossless. The radio connection is brilliantly simple - "turn and lock". - you do everything with one hand.
UltraHorn TP antennas have a surprisingly high gain: 24 dBi for UH-TP-5-24. Combined with narrow beam widths and no side loss UltraHorn TP antennas deliver amazing performance, even compared to competitor products with higher gain.
Features / filters | |
Antenna frequency | 5 GHz |
Energy gain | 21dBi - 30dBi |
Application | Outdoor |
Connector type | TwistPort |
Front-to-back ratio | 40 dB |
Horizontal beamwidth | 16° |
IP Rating | IP55 |
Polarization | Double linear |
Vertical beamwidth | 15° |
Technical data | |
Antenna connection | TwistPort - fast blocking waveguide port |
Antenna type | Horn |
Materials | UV-resistant ABS plastic, polycarbonate, polypropylene, aluminium, stainless steel |
Pole mounting diameter | 30 - 80 mm |
Resistance to temperature | -30°C to 55°C (-22°F to +131°F) |
Wind resistance | 160 km/h |
Mechanical adjustment | ± 25° |
Weight | 8.2 kg / 18 lbs - single unit 9,2 kg / 20 lbs - single unit per package |
Dimensions | Single retail box: 550 x 550 x 660 mm (21.6 x 21.6 x 26 inches) |
Performance | |
Frequency range | 5180 - 6400 MHz |
Antenna gain | 24 dBi |
Polarisation | Double, linear H + V |
Signal ratio front to back | 40 dB |
