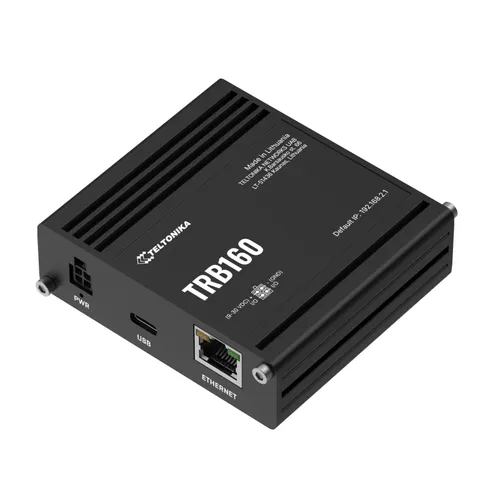

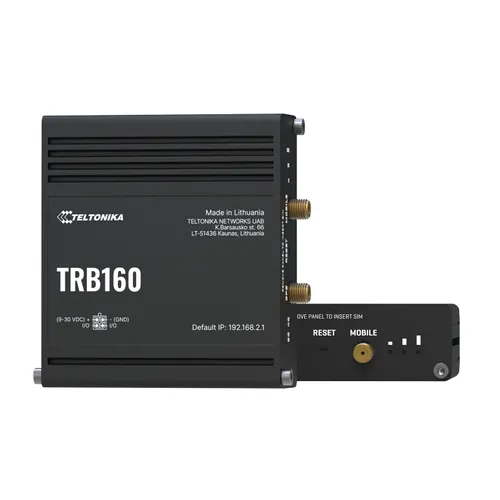

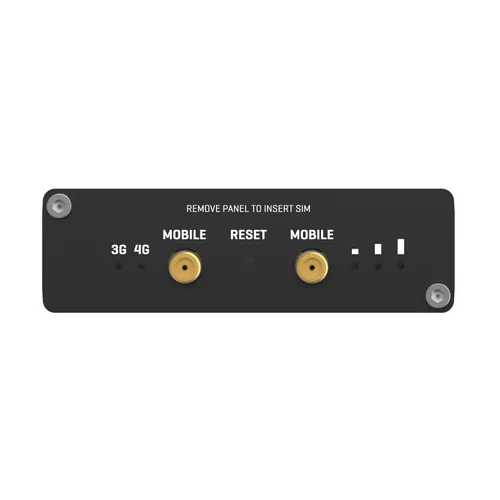

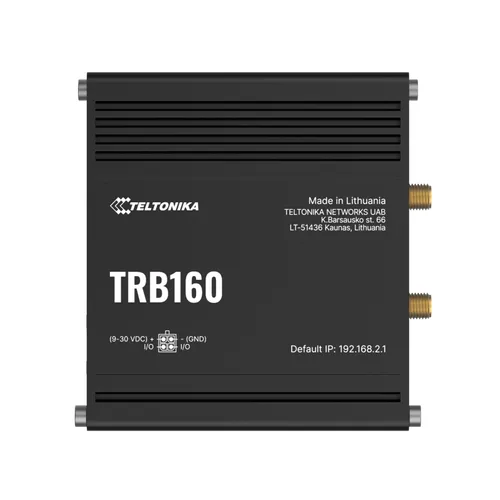

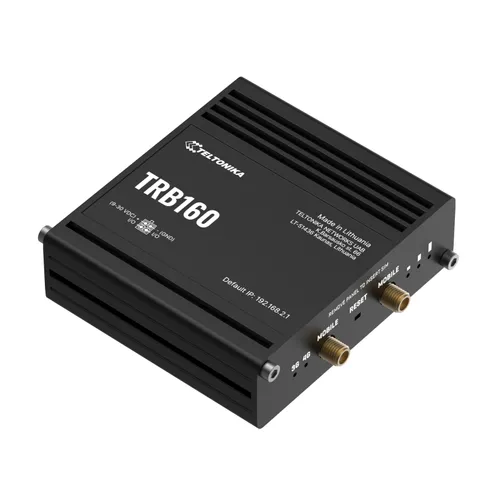

The Teltonika TRB160 is an industrial 4G (LTE) network gateway that combines advanced features with a compact size. Equipped with a Gigabit Ethernet port, USB Type-C port, powerful processor and RutOS software, the TRB160 is an ideal solution for advanced network applications.
The TRB160 is an ultra-small, lightweight and energy-efficient IoT gateway equipped with LTE Cat 6. With Gigabit Ethernet and a virtual network interface via a USB Type-C port, the TRB160 enables simultaneous power and network data delivery. The device achieves cellular speeds of up to 300 Mbps with carrier aggregation, making it ideal for a wide range of applications.

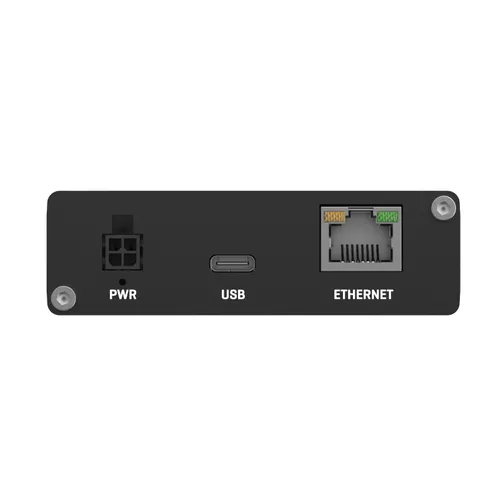

The TRB160 is distinguished by its ability to be powered by three different connectors: 4-pin, RJ45 and USB 3.0. This allows the system to provide reliable operation even in the event of a power failure. The USB 3.0 port allows for gateway charging and data communication support, which increases the functionality of the device.
The TRB160 Cat6 is equipped with extensive VPN service support, access control and a firewall to provide a high level of security. These features make the device ideal for industrial applications that require reliable and secure communications.
| Features / filters | |
| 4G LTE category | 4 |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 1 |
| Built-in processor | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Control display unit | No |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| Data network | 3G, 4G |
| DC input voltage | 9 - 30 |
| Depth | 83 |
| DMZ support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Enclosure International Protection (IP) code | IP30 |
| Enclosure material | Aluminium |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Firewall security | Yes |
| Flash memory | 256 |
| Height | 25 |
| Input voltage | 5 |
| Internal memory | 128 |
| International Protection (IP) code | IP30 |
| Mobile network generation | 4G |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Power consumption (max) | 3.3 |
| Power over Ethernet (PoE) | Yes |
| Processor family | ARM Cortex |
| Processor frequency | 1200 |
| Processor manufacturer | ARM |
| Processor model | Cortex-A7 |
| Product colour | Steel |
| Quality of Service (QoS) support | Yes |
| Short Message Service (SMS) | Yes |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VLAN support | Yes |
| WAN connection | Ethernet (RJ-45) |
| Weight | 172 |
| Width | 74.2 |
