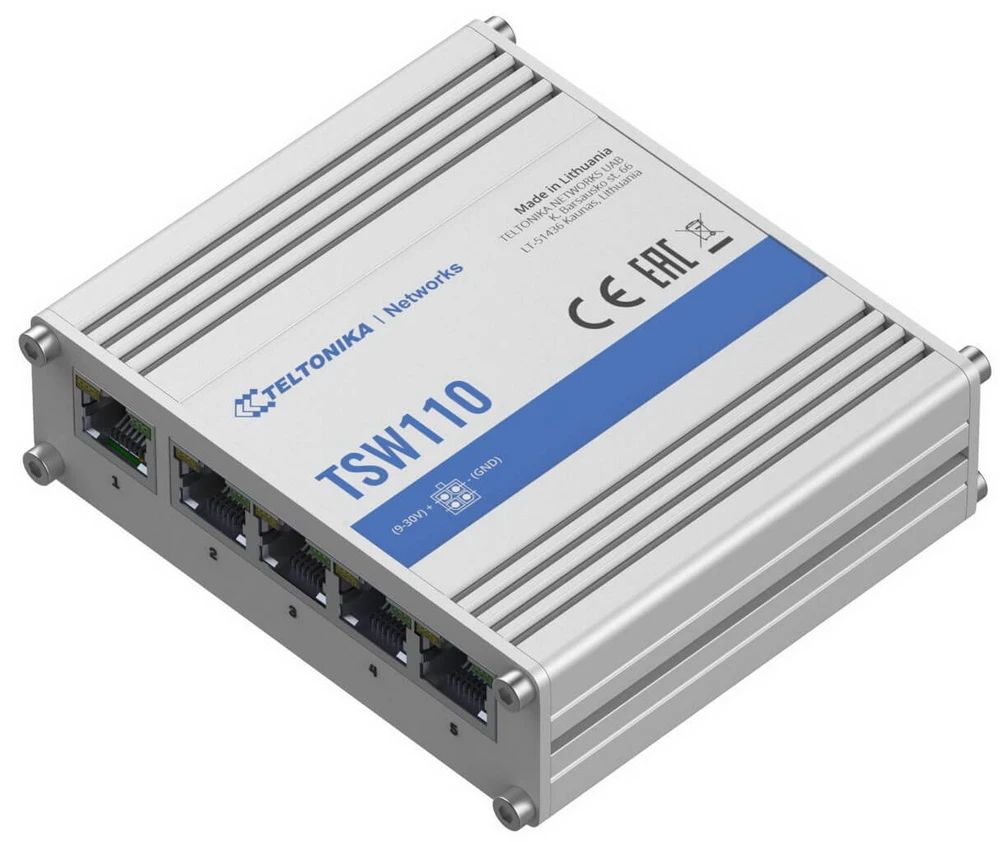

The Teltonika TSW110 switch is an industrial unmanaged switch with 5 RJ45 Gigabit Ethernet ports, one of which is compatible with passive PoE. This model is a very robust network device, suitable for professional applications where reliable and fast data transmission is required.
TheTeltonika TSW110 is built in a rugged aluminum housing that provides protection from the elements and efficient heat dissipation at maximum load. The unit is small and lightweight and supports various mounting options (desktop, wall or DIN rail) with grounding.
Teltonika TSW110 is quick to set up, easy to maintain and can operate in a temperature range from -40 to 75 degrees Celsius. The switch's versatility is also strengthened by its support for supply voltages ranging from 9 to 30 volts.
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 5x 10/100/1000BaseTX (RJ45) |
| 10G support | No |
| AC input voltage | 100 - 240 |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| DC input voltage | 30 |
| Depth | 85 |
| DIN rail mounting | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Height | 30 |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 2000 |
| Networking standards | IEEE 802.3,IEEE 802.3az,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -40 - 75 |
| Package type | Box |
| Packet buffer memory | 0.128 |
| Power consumption (typical) | 1.8 |
| Power over Ethernet (PoE) | Yes |
| Power supply included | Yes |
| Product colour | Blue, Grey |
| Quick start guide | Yes |
| Switch type | Unmanaged |
| Switching capacity | 10 |
| Switching layer | 2 |
| Type of case | Metal |
| Weight | 227 |
| Width | 100 |
| Basic general data | |
| Manufacturer | Teltonika |
| Model | TSW110 |
| Type | Switch |
| Ethernet | |
| LAN | 5 x LAN ports, 10/100/1000 Mbps, IEEE 802.3, IEEE 802.3u, 802.3az compliant, supports automatic MDI/MDIX crossover |
| Performance specifications | |
| Bandwidth (non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Connector | 4-pin industrial DC power connector |
| Input voltage range | 9 - 30 VDC, reverse polarity protection, overvoltage/overvoltage protection |
| PoE (passive) | Passive PoE. Power over LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Power consumption (idle/max) | < 0.4 W/ <1.8 W |
| Physical interfaces (ports, LEDs) | |

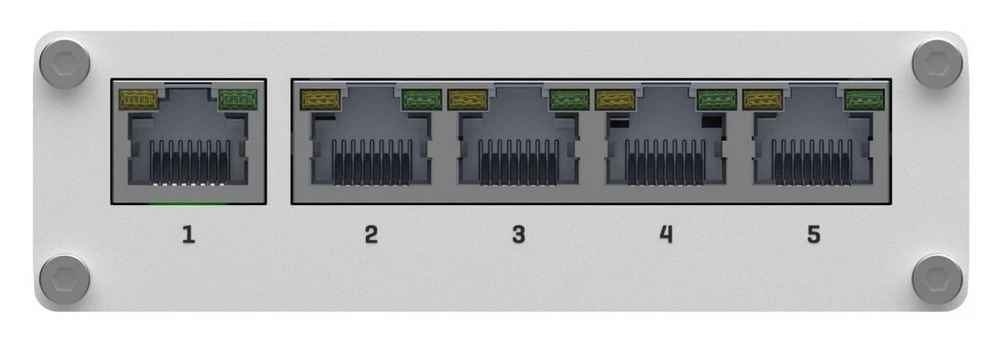

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x LAN status LED |
| Power supply | 1 x 4-pin DC connector |
| Grounding | 1 x grounding screw |
| Physical specification | |
| Housing material | All-aluminium housing |
| Dimensions (W x H x D) | 100 mm x 30 mm x 85 mm |
| Weight | 227 g |
| Mounting possibilities | DIN rail or wall mounting (additional kit required), placement on flat surface |
| Work environment | |
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % without condensation |
Teltonika TSW110 supports PoE power supply.
