tinyESP - WiFi Controller

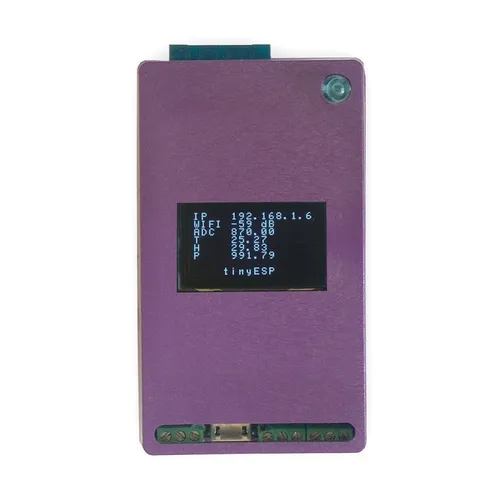

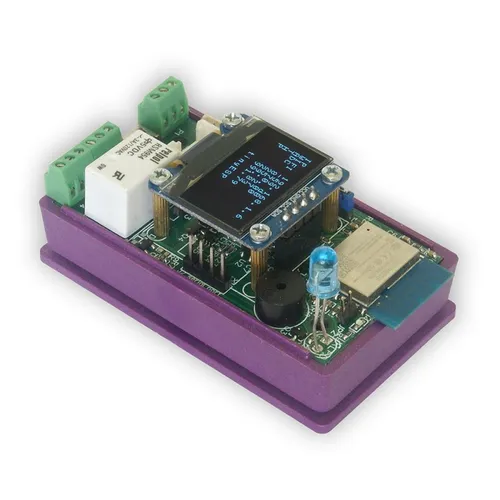

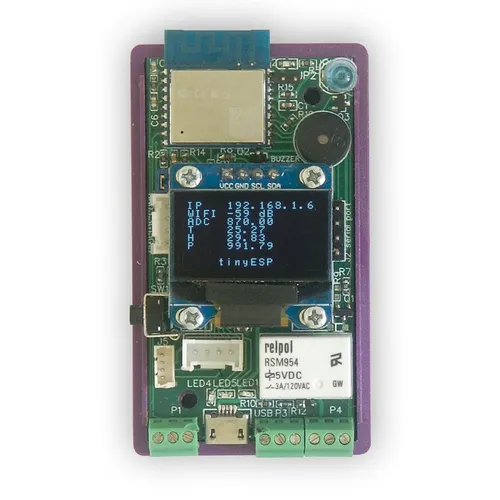

TinyESP is a universal WiFi controller with ESPEasy open-source software. The use of popular ESP8266 module makes the controller inexpensive despite its rich hardware. After initial configuration, the device can be conveniently managed via a website. An optional extension is a 0.96" OLED display that can be mounted on the controller board.

The software has very rich possibilities of cooperation with servers such as Domoticz or OpenHAB, it supports MQTT protocol (you can connect with it at mqtt.ats.pl) and enables remote control of other devices. It also enables realization of simple automatics, which triggers after exceeding set value (Regulator - level control).

Examples of application

• Environmental measurements (temperature, humidity, smog, CO2, lighting)
• Voltage measurements 0-5V
• Monitoring of the logic state 0-1
• Sending measurements periodically to own server (Domoticz, OpenHAB and others) or to mqtt.ats.pl
• Control of devices by relay or IR transmitting diode
• Switching on buzzer or relay via http command from another device, e.g. Lan Controller
• Simple automatics e.g. switching relay on after exceeding setpoint from sensor
• Sending notification by e-mail
• Viewing the current data on the display
• Simple distance measurement
• RFID reader support
