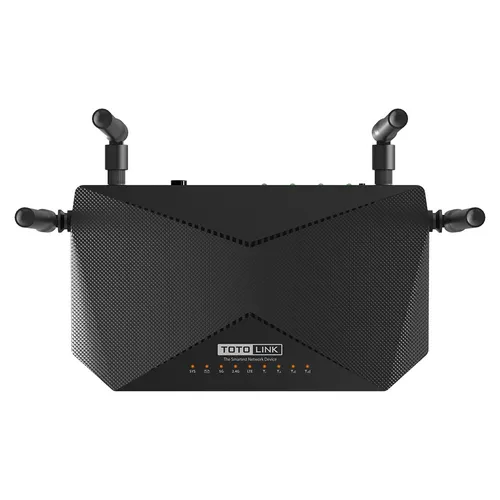

Totolink LR1200GB is a 4G LTE wireless dual-band router that is compatible with the most advanced 802.11ac standards and offers WiFi speeds of up to 1200Mbps. Have convenient 4G network access while sharing your 4G LT E network with multiple Wi-Fi devices. All your Wi-Fi devices will instantly enter the 4G era with WiFi connectivity.
It supports 4G Cat6, with Carrier Aggregation technology, download speed up to 300Mbps and upload speed up to 50Mbps. With the Totolink router, you will watch video without stuttering, outdoor live streaming will be smoother, and you can enjoy a high-quality 4G network in your home.
Advanced LTE antennas ensure efficient and stable connections to any device. A power amplifier and low-noise booster enhance sending and receiving capabilities, creating a Wi-Fi network with wide coverage in your home.
Get Internet access the easy way. Insert your SIM card into the Totolink router and connect to the Internet wirelessly or use an RJ45 cable and connect to the Internet via a cable connection.

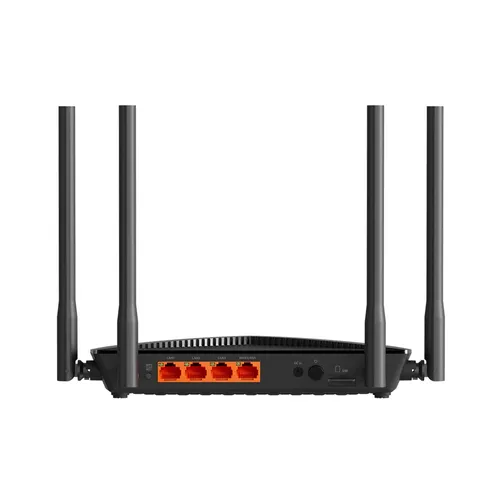

Equipped with full gigabit ports, the LR1200B offers greater data streaming capabilities over a wired connection, It takes full advantage of Internet bandwidth and is compatible with 100M/1000M network cards. Connect your computers, smart TVs and gaming consoles for a fast and reliable connection.

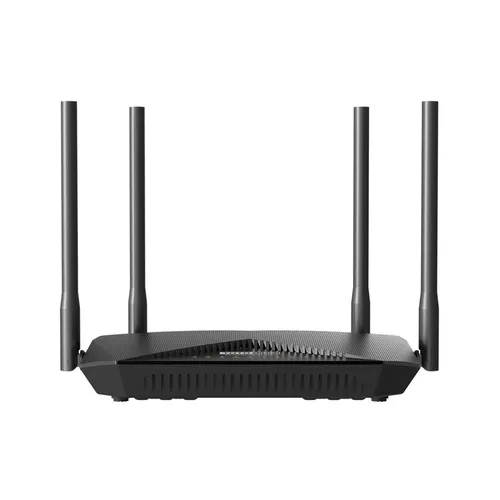

The Totolink LR1200GB is not only equipped with two Wi-Fi antennas, but also two external 4G antennas. The 4G signal is stronger and more stable.
| Technical data | |
| Interface | -1 * WAN/LAN port 10/100/1000 M -3 * LAN port 10/100/1000 M -1 * standard SIM card slot |
| Power supply | 12 V DC / 1 A |
| Buttons | 1 * reset button |
| LED indicators | -1* LTE，1* WIFI，1* WAN，3* LAN，1* Power. -1* WAN/LAN, 3* LAN |
| Antennas | - 2* 5dBi internal antennas (2.4G), - 2* detachable 5dBi antennas (4G) |
| Dimensions | 195.5 * 126.9 * 28.6 mm. |
| Wireless network | |
| Standards | - IEEE 802.11ac - IEEE 802.11a - IEEE 802.11b - IEEE 802.11g - IEEE 802.11n |
| RF frequency | 2.4GHz/5GHz |
| Data transmission speed | - 2.4GHz: Up to 300Mbps - 5GHz: Up to 867Mbps |
| EIRP | 2.4GHz < 20dBm |
| Wireless network security | 64/128-bit WEP, WPA and WPA2 |
| Reception sensitivity | - 2.4G: 11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER - 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER |
| LTE | |
| LTE chip (miniPCIE, optional, customizable) | Qualcomm |
| LTE network type and bandwidth | - FDD: B1/B3/B5/B7/B8/B20/B28/B32 - TDD: B38/B40/B41 - WCDMA: B1/B3/B5/B8 |
| Software | |
| Home page | WAN information, LAN information, system information |
| WAN type | Static IP, DHCP, PPPoE, 4G |
| Wireless features | Multiple SSIDs, MAC authentication, WPS |
| Firewall | MAC filtering, IP/port filtering, URL filtering, DMZ |
| Management | Password, System configuration, Time setting, Firmware update, System log |
| Capacity of the device | - 2.4G: Max 64 users - 5G: Max 64 users |
| Other | |
| Package contents | - LR1200GB 4G Cat6 router* 1 - Power adapter * 1 - Ethernet cable * 1 (optional) - SIM adapter (Nano, Micro) - Quick installation guide * 1 |
| Environment | - Operating temperature: 0°C~50°C (32°F~122°F) - Storage temperature: -40°C~70°C (-40°F~158°F) - Operating humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
