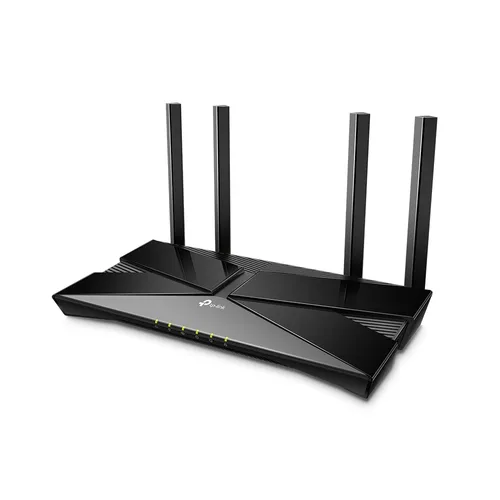

TP-Link Archer AX10 | WiFi Router | WiFi6, AX1500, MU-MIMO, Dual Band, 5x RJ45 1000Mb/s


![TP-Link Archer AX10 | WiFi Router | WiFi6, AX1500, MU-MIMO, Dual Band, 5x RJ45 1000Mb/s Ilość portów LAN4x [10/100/1000M (RJ45)]](https://www.batna24.com/img2/200/330159_2.webp?20989284121)


TP-Link Archer AX10 is a new router supporting modern wireless standard Wi-FI 6 (802.11x). Wi-FI 6 standard ensures support for higher data rates and throughput. TP-Link Archer AX10 can simultaneously operate in two frequency bands - 2.4 and 5 GHz. The maximum supported data rate can reach 300 and 1201 Mbps respectively. In addition, the router has been equipped with a 1.5 GHz tri-core processor. To ensure a wide coverage area and stable signal, the manufacturer has used 4 external antennas with high gain.
The Wi-FI 6 standard will provide a significant increase in the speed and bandwidth of your network. Switch to the next generation of Wi-FI to enjoy the faster internet of the future with the ability to connect more devices.
OFDMA allows multiple devices to share the same bandwidth, enabling more devices to connect to a Wi-FI 6 router than to a standard Wi-FI 5 router.
Wi-FI 6 optimizes data transfer by allowing data packets from different applications to share a single stream, thereby reducing latency. Enjoy impeccable audio and video quality while communicating, playing fast online games, and instantly downloading video on multiple devices at once.
A powerful 1.5GHz tri-core processor delivers big data with minimal network latency. Enjoy instant feedback when playing online video and high quality video when communicating.
Beam shaping technology and 4 high-gain antennas deliver a strong, stable Wi-FI signal throughout your home, providing seamless connectivity for any device.
The intuitive Tether app and user-friendly web interface will help you set up the Archer AX10 in just minutes. Additionally, the Tether app allows you to manage your network settings from any Android or iOS device.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 1500 Mb/s |
Number of LAN ports | 4x 10/100/1000BaseTX (RJ45) |
Number of WAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11ax, |
3G | No |
3G/4G USB modem compatibility | No |
4G | No |
5G | No |
AC adapter included | Yes |
Antenna gain | Under 10dbi |
Antenna type | Outside, External, |
Antennas quantity | 4 |
Application | Indoor |
Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
Built-in modem | None |
Built-in processor | Yes |
Cables included | LAN (RJ-45) |
Certification | FCC, CE, RoHS |
DC-in jack | Yes |
Depth | 126 |
Detachable antennas | No |
DHCP client | Yes |
DHCP server | Yes |
DMZ support | Yes |
DSL WAN | No |
Dynamic DNS (DDNS) | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet WAN | Yes |
Firewall | Yes |
Firewall security | SPI |
Flash memory | 16 |
Guest access | Yes |
Harmonized System (HS) code | 85176990 |
Height | 33 |
Internal memory | 256 |
Linux operating systems supported | Yes |
Mac compatibility | Yes |
Mac operating systems supported | Yes |
Management | Dedicated application, By web browser, |
Memory card slot(s) | No |
MIMO Type | MU-MIMO 2x2 |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Number of products included | 1 |
On/off switch | Yes |
Output current | 1 |
Output voltage | 12 |
Package depth | 240 |
Package height | 73 |
Package weight | 780 |
Package width | 330 |
Port forwarding | Yes |
Power source type | AC |
Processor cores | 3 |
Processor frequency | 1500 |
Product colour | Black |
Product type | Tabletop router |
Quick installation guide | Yes |
Receiver sensitivity | 5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE |
Reset button | Yes |
Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
SIM card slot | No |
Supported network protocols | IPv4, IPv6 |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz); FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
Type of case | Plastic |
Type of device power supply | Power supply |
Universal Plug and Play (UPnP) | Yes |
USB port | None, No, |
WAN connection type | RJ-45 |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Width | 260 |
WiFi encryption | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, |
Windows operating systems supported | Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows XP |
WLAN data transfer rate (first band) | 300 |
WLAN data transfer rate (max) | 1500 |
WLAN data transfer rate (second band) | 1201 |
WPS push button | Yes |
Technical data: | |
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi network coverage | Antennas The antennas provide enough power to strengthen the network signal and cover a large area Beamforming Delivers Wi-Fi coverage by directing the network signal to the client |
Operating modes | Router mode Access point mode |
WiFi network speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
WiFi performance | Two Bands Distributes devices between available bands for optimal performance OFDMA Provides the ability to communicate with multiple Wi-Fi clients 6 Airtime Fairness Improves network performance by reducing inefficient use of bandwidth 4 Data Streams More bandwidth is available to devices |
Hardware features | |
Processor | Triple-core processor clocked at 1.5 GHz |
Ethernet Ports | 1 Gigabit WAN port 4 Gigabit LAN ports |
Buttons | WPS/Wi-Fi Power supply LED On/Off Reset |
Transmission security | |
Power | 12 V ⎓ 1 A |
WiFi network encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
Network security | SPI firewall Access control IP and MAC address binding Application Layer Gateway |
Guest Network function | 5 GHz guest network 2.4 GHz guest network |
VPN server | OpenVPN PPTP |
Software | |
Protocols | IPv4 IPv6 |
Parental controls | URL Filtering Temporary access restrictions |
WAN types | Dynamic IP Address Allocation Static IP address assignment PPPoE PPTP L2TP |
Quality of Service | QoS priorities for devices |
Cloud service | Automatic firmware updates OTA firmware updates TP-Link ID DDNS |
NAT forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge VLAN tagged |
DHCP | Address Reservation List of DHCP clients Server |
DDNS | TP-Link NO-IP DynDNS |
Support (ENG) | Download |
TP-Link Archer AX10 operates in Dual Band frequency (2.4GHZ, 5GHz).
TP-Link Archer AX10 supports maximum transmission speed of up to 1500 Mbps.
The LAN standard is Gigabit Ethernet 10/100/1000 Mbps.
