The dual-band Archer C64 allows you to connect more devices: the 2.4 GHz band provides reliable connectivity for email, web browsing and other simple tasks, while the 5 GHz band is better suited for multimedia tasks such as video streaming or online gaming
WPA3 is the latest protocol to enhance the security of personal Wi-Fi networks. Stronger encryption of Wi-Fi passwords and protection against brute-force attacks will ensure complete security of your home Wi-Fi network.

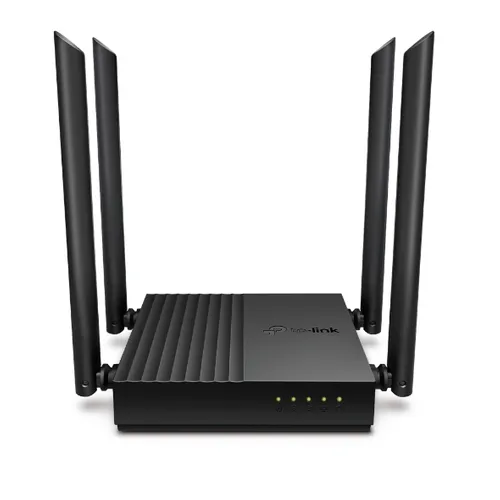

With four powerful external antennas, the Archer C64 will provide Wi-Fi signals throughout the home, while Beamforming technology will improve signal quality for distant devices by identifying their location and focusing the signal in their direction.
Wi-Fi speeds of up to 1,200 Mbps with 802.11ac combined with MU-MIMO technology provide reliable, high-speed connectivity to multiple devices and eliminate latency.

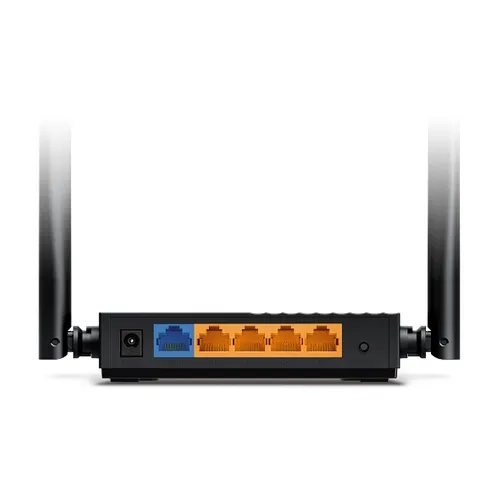

Gigabit Ethernet ports (1 WAN port 4 LAN ports) offer up to ten times the speed of the Fast Ethernet standard, providing fast and reliable connections to computers, Smart TVs and gaming consoles.
Switch the Archer C64 to access point mode to convert an existing wired network into a wireless network.
Set up your Archer C64 device in minutes using a clear web interface and the handy Tether app, which also lets you manage network settings from any Android or iOS device.
| Features / filters | |
| 3G/4G USB modem compatibility | No |
| AC adapter included | Yes |
| Antenna type | External |
| Antennas quantity | 4 |
| Built-in processor | Yes |
| Cables included | LAN (RJ-45) |
| Certification | CE, RoHS |
| Depth | 120 |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet WAN | Yes |
| Filtering | Yes |
| Firewall | Yes |
| Firewall security | SPI |
| Firmware upgradeable | Yes |
| Guest access | Yes |
| Height | 27.9 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| MU-MIMO technology | Yes |
| Networking standards | IEEE 802.1x |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Output current | 1 |
| Output voltage | 12 |
| Parental control | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Processor frequency | 1200 |
| Product colour | Black |
| Product type | Tabletop router |
| Quality of Service (QoS) support | Yes |
| Quick installation guide | Yes |
| Receiver sensitivity | 5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:- |
| Reset button | Yes |
| Security algorithms | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3 |
| SIM card slot | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Supported network protocols | IPv4, IPv6 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Transmit power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5 GHz) |
| Universal Plug and Play (UPnP) | Yes |
| URL filtering | Yes |
| USB port | No |
| Web-based management | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Width | 120 |
| Windows operating systems supported | Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| WLAN data transfer rate (first band) | 400 |
| WLAN data transfer rate (max) | 1200 |
| WLAN data transfer rate (second band) | 867 |
| WPS push button | Yes |
| Wireless devices | |
| Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi network speeds | 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| WiFi network coverage | 4 powerful integrated antennas Beamforming |
| WiFi network performance | Two bands MU-MIMO Airtime Fairness |
| Operating modes | Router mode Access point mode |
| Hardware features | |
| Processor | 1.2 GHz processor |
| Ethernet Ports | 1 Gigabit WAN port 4 Gigabit LAN ports |
| Buttons | WPS/Reset |
| Power | 12 V = 1 A |
| Transmission security | |
| WiFi network encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network protection | SPI firewall Access control IP and MAC address binding |
| Guest Network function | 5 GHz guest network 2.4 GHz guest network |
| Software | |
| Protocols | IPv4 IPv6 |
| Parental controls | URL Filtering Temporary access restrictions |
| Types of WANs | Dynamic IP address assignment Static IP address assignment PPPoE (Dual Access) PPTP (Dual Access) L2TP (Dual Access) |
| Quality of Service | QoS priorities for devices |
| Cloud service | Firmware OTA updates TP-Link ID DDNS |
| NAT redirection | Port Forwarding Port Triggering UPnP DMZ |
| IPTV | IGMP Proxy IGMP Snooping Bridge VLAN tagged |
| DHCP | Address Reservation List of DHCP clients Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether application Management page |
| Appearance and contents of the package | |
| Dimensions (S×G×W) | 120 × 120 × 27.9 mm |
| Package contents | Archer C64 Wi-Fi Router Power adapter RJ45 Ethernet cable Quick installation guide |
| Other | |
| System requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other browser with JavaScript enabled Cable Modem or DSL (if required) Contract with an internet service provider (internet access) |
| Certificates | CE, RoHS |
| Work environment | Permissible operating temperature: 0℃~40℃ (32℉ ~104℉) Permissible humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
| Data obtained during tests | |
| WiFi transmission power | CE: <20 dBm (2.4 GHz) <23 dBm (5.15 GHz~5.25 GHz) FCC: <30 dBm (2.4 GHz and 5 GHz) |
| WiFi signal reception sensitivity | 5 GHz: 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -77 dBm 11ac VHT20 MCS8: -71 dBm 11ac VHT40 MCS9: -67 dBm 11ac VHT80 MCS9: -63 dBm 2.4 GHz: 11g 6 Mbps: -96 dBm 11a 54 Mbps: -78 dBm 11n HT20 MCS7: -77 dBm 11n HT40 MCS7: -74 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS9: -68 dBm |
