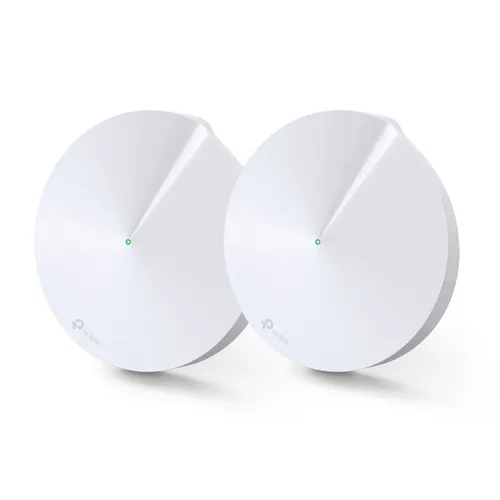

The best connection at any time and in any room? Deco M5 is the complete WiFi solution you have been waiting for. This system provides uninterrupted WiFi throughout the house, so you can enjoy a fast and stable network connection on any device in any room. In addition to the AC1300 speed and WiFi coverage of a set of two devices up to 300 m2, Deco M5 is equipped with the latest security system.
This new type of WLAN product overshadows everything that was before. It doesn't matter what your home is. Enjoy uninterrupted connections whether you're in the kitchen on the ground floor or in the upstairs bedroom. Connect two Deco M5 devices and network your home up to 300m2. If you need more range, you can connect more Deco routers.
You don't have to worry about configuring Deco M5 on your own. Just unpack the box with your device and install the app on your smartphone, then follow the instructions on screen in a few simple steps. The Deco app will give you access to your network in minutes. It's easier than you think.
The device's operating characteristics are based on the innovative DECO MESH technology used by the manufacturer. The devices connect with each other creating at the same time an integrated WIFI network under one name. The ART (Adaptive Routing Technology) function automatically connects your terminal devices to the Deco router, which at any given time sends the best WIFI signal. This ensures that no matter where you are at home, you will always enjoy an uninterrupted high speed Internet connection. Whether you're operating in the 2.4 GHz or 5 GHz band, ART always automatically selects the correct frequency on your device. So you can move from room to room while streaming, downloading or surfing without interruption.
You're tired of the constant caching? Thanks to the manufacturer's 802.11ac Deco M5 technology, it offers a stable connection speed of up to 1267Mbps and is compatible with all cable modems. Moreover, the Deco system can handle up to 100 wireless devices on the network.
| Features / filters | |
| AC adapter included | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Certification | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| DC-in jack | Yes |
| Depth | 120 |
| DHCP client | Yes |
| DHCP server | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Harmonized System (HS) code | 85171800 |
| Height | 38 |
| Housing colour | White |
| LED indicators | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Package depth | 241 |
| Package height | 101 |
| Package weight | 950 |
| Package width | 247 |
| Quality of Service (QoS) support | Yes |
| Security algorithms | WPA-PSK,WPA2-PSK |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Width | 120 |
| Power supply | |
| Input voltage of the power supply | 100-240V ~ 50/60Hz 0.4A |
| Power supply output voltage | 12V ⎓ 1.2A |
| Equipment features | |
| Processor | Four-core processor |
| Ports | 2 Gigabit Ethernet LAN/WAN ports |
| Buttons | Reset button |
| Power supply | 12 V/1,2 A |
| Flash Memory | 32 MB |
| SDRAM | 256 MB |
| Dimensions | Φ120 mm x 38 mm |
| Antenna | 4 internal antennas in each Deco unit |
| Bluetooth version | 4.2 or newer |
| Wireless transmission characteristics | |
| Wireless standards | IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz |
| Frequency of operation | 2.4GHz and 5GHz |
| Transmission speed | 400 Mb/s in the 2.4 GHz band 867 Mb/s in the 5 GHz band |
| EIRP | FCC: <30 dBm CE: <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Wireless transmission security | WPA-PSK/WPA2-PSK |
| Advanced features | TP-Link Mesh technology: MU-MIMO Automatic route selection AP control Band control Beamforming |
| Software functions | |
| Quality of Service function | WMM |
| IPv6 | Yes |
| WAN | Dynamic IP/Static IP/PPPoE |
| Management | Local and remote management |
| DHCP | Server, client |
| Port forwarding | Yes |
| Access control | Black list |
| Firewall protections | Firewall SPI |
| Protocols | IPv4 and IPv6 |
| Advanced features | Homecare: Antivirus Parental control Capacity control |
| Advanced features | Speed test Monthly statistics Automatic software update Possibility of extending the network with additional units |
| Guest Network function | 2.4GHz guest network 5GHz guest network |
| Beamforming | Yes |
| APP | Deco application |
| Other | |
| Certificates | THAT, FCC, IC, NCC, BSMI, GO, |
| Package contents | ● Deco M5 (Two-pack): 2 Deco units 1 RJ45 Ethernet cable 2 power supplies |
| System requirements | iOS 9.0 or later Android 4.4 or later Bluetooth 4.0 or later |
| Working environment | Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
Step 1 Check that the modem works
Disconnect the main Deco from the modem, then connect the computer to the same Ethernet port on the modem with the same Ethernet cable. Then check that the Internet is available on your computer.
If your computer does not have Internet access, contact your Internet service provider or modem support.
Step 2 Check the status of the LED on the main Deco
1.) The LED lights up continuously in green - Please refer to the link to update the main Deco software.
2.) LED flashes or lights up red - Disconnect the main Deco and modem, turn off the modem and the main Deco, then turn it on again, wait 2 minutes when the lights on the modem are on, connect the main Deco back to the modem, then test the internet connection.
If the LED still lights red, go to Deco APP -> More -> Advanced -> IPv4 to check Deco's WAN IP address if it is an IP address, but Deco has no Internet access are located in the link to change the DNS server to 8.8.8.8 and 8.8.4.4 to try.
3.) LED flashes blue - Use the link to reconfigure your main Deco.
4.) LED lights yellow or is off - Please replace another power supply unit or power outlet.
Step 1: Check if the client has obtained an IP address. If not, restart or reset the client.
Step 2: Check if the client has a static IP address configured. If so, change the client to automatically obtain an IP address.
Step 3: Update the wireless client card driver.
Step 4: Check that the client is included in the Parental Control profile that is on hold or asleep.
If the problem persists, we suggest that you contact customer service.
Deco can be used with an existing router. Here are two typical connection structures.
Topology 1:
Note: When Deco is in router mode, it is not recommended to directly connect more than 1 deco unit to an existing router as this may cause a network loop.
When Deco is in Access Point mode, there is no problem to connect more than 1 deco unit directly to an existing router.
Topology 2:
Here are some frequently asked questions.
1.) Can I set Deco Wi-Fi name and password to be the same as in my existing router?
When Deco works with your existing router, it is suggested to disable the router's Wi-Fi network and use Deco Wi-Fi instead to minimize wireless interference.
2.) Can I connect Deco wirelessly to an existing router to expand my existing Wi-Fi network?
Deco does not support Repeater mode, only Router and Access Point modes are available.
In a Deco network, the master Deco must be connected to a modem, router or Internet cable to access the Internet. In other words, Deco cannot be configured to connect wirelessly to an existing router. However, a Deco satellite can connect wirelessly to your existing Deco network.
3.) Do I have to set up an existing router in bridge mode if my router is a combination of modem and router?
Deco works well with a router with a modem, but it is recommended to configure your router with a modem in bridge mode to avoid some technical problems, such as double NAT.
