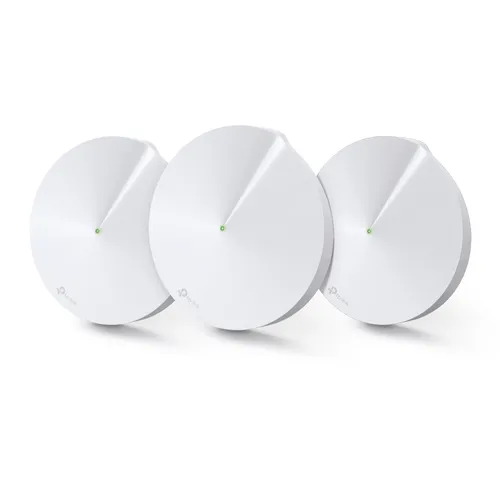

TP-Link Deco M5 3-Pack | WiFi Router | MU-MIMO, AC1300, Dual Band, Mesh, 2x RJ45 1000Mb/s



TP-Link Deco M5 is the easiest way to get a strong wireless signal in every corner of your home. The presented set includes three devices. Enjoy a fast and stable connection for all devices over an area as big as 500 m². The device operates at two frequencies: 2.4 GHz and 5 GHz. It offers a stable connection with a speed up to 1267 Mbps. Eliminate the Wi-Fi dead zones in your home with Deco system and you will never have to look for network coverage again. Need more coverage? Just add another Deco unit. This is the perfect choice for anyone looking for the answer to the question: how to cover a large home with WiFi?
You're tired of loading all the time? With 802.11ac technology and speeds up to three times faster than older generations of routers, Deco M5 can guarantee a fast connection, without delays, even for a 100 devices.
Eliminate dead zones throughout your home with Wi-Fi with smooth roaming, adaptive routing and automatic call repair. Never again will you have to look for a wireless signal, no matter where you are - in the basement, garage or backyard. TP-Link Mesh technology dynamically selects the best route and bandwidth for your data, ensuring a fast connection in every corner of the house.
Features / filters | |
AC adapter frequency | 50 - 60 |
AC adapter included | Yes |
AC adapter input current | 0.4 |
AC adapter input voltage | 100 - 240 |
AC adapter output current | 1.2 |
AC adapter output voltage | 12 |
Antenna type | Internal |
Antennas quantity | 4 |
BeamForming | Yes |
Bluetooth | Yes |
Bluetooth version | 4.2 |
Certification | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
DC-in jack | Yes |
Depth | 120 |
DHCP client | Yes |
DHCP server | Yes |
Ethernet cable | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Firewall security | SPI |
Height | 38 |
Housing colour | White |
LED indicators | Yes |
Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
Number of guest networks (2.4 GHz) | 1 |
Number of guest networks (5 GHz) | 1 |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Package depth | 241 |
Package height | 105 |
Package width | 319 |
Port forwarding | Yes |
Processor cores | 4 |
Quality of Service (QoS) support | Yes |
Reset button | Yes |
Security algorithms | WPA-PSK,WPA2-PSK |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
Width | 120 |
Power supply | |
Input voltage of the power supply | 100-240V ~ 50/60Hz 0.4A |
Power supply output voltage | 12V ⎓ 1.2A |
Equipment features | |
Processor | Four-core processor |
Ports | 2 Gigabit Ethernet LAN/WAN ports |
Buttons | Reset button |
Power supply | 12 V/1,2 A |
Flash Memory | 32 MB |
SDRAM | 256 MB |
Dimensions | Φ120 mm x 38 mm |
Antenna | 4 internal antennas in each Deco unit |
Bluetooth version | 4.2 or newer |
Wireless transmission characteristics | |
Wireless standards | IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz |
Frequency of operation | 2.4 GHz and 5 GHz |
Transmission speed | 400 Mb/s in the 2.4 GHz band 867 Mb/s in the 5 GHz band |
EIRP | FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
Wireless transmission security | WPA-PSK/WPA2-PSK |
Advanced features | TP-Link Mesh technology: MU-MIMO Automatic route selection AP control Band control Beamforming |
Software functions | |
Quality of Service function | WMM |
IPv6 | Yes |
WAN | Dynamic IP/Static IP/PPPoE |
Management | Local and remote management |
DHCP | Server, client |
Port forwarding | Yes |
Access control | Black list |
Firewall protections | Firewall SPI |
Protocols | IPv4 and IPv6 |
Advanced features | Homecare: Antivirus Parental control Capacity control |
Advanced features | Speed test Monthly statistics Automatic software update Possibility of extending the network with additional units |
Guest Network function | 2.4 GHz guest network 5G Hz guest network |
Beamforming | Yes |
APP | Deco application |
Other | |
Certificates | THAT, FCC, IC, NCC, BSMI, GO, |
Package contents | Deco M5: 3 Deco units 1 RJ45 Ethernet cable 3 power supplies ● Deco M5 (Single): 1 Deco unit 1 RJ45 Ethernet cable 1 power supply |
System requirements | iOS 8.0 or newer Android 4.3 or newer Bluetooth 4.0 or higher |
Working environment | Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
Operating instructions | Download |
