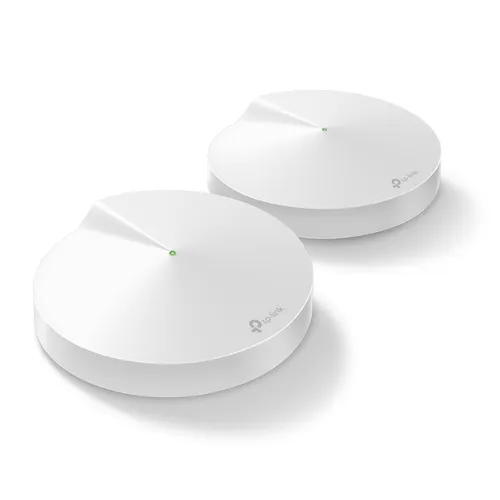

With the brilliant TP-Link Deco M9 Plus Smart Home WiFi mesh system, you can have a strong WiFi signal throughout the house - you won't have to look for a place with an optimal signal anymore. The package includes two Deco M9 units which, thanks to the advanced Deco Mesh technology, create one complete network with one name in your home or apartment. Your device always connects to the one that provides the best and strongest signal. This basic version with two modules covers an area of up to 600 m2. If necessary, you can buy additional Deco units.
.webp)
Deco M9 Plus Smart Home operates on three separate bands, providing a fast and stable connection with a total speed of up to 2134 Mbps. In general, this system acts as a hub to connect all the devices in your smart home, plus it allows you to customize settings and create mutual interactions. Deco M9 system from TP-Link ensures stable connection of up to 100 devices simultaneously.
.webp)
The Wi-Fi signal range with Deco M9 Plus eliminates weak spots throughout the house. You won't have to run around looking for a place where the signal will be stable. You can enjoy the benefits of a wireless connection not only in the living room, but throughout the house.
.webp)
Unpack the Deco units, install the applications, and then follow the on-screen instructions. Deco will take care of everything else, and your network will be set up and functional in no time.
.webp)
| Features / filters | |
| AC adapter frequency | 50/60 |
| AC adapter included | Yes |
| AC adapter input current | 0.8 |
| AC adapter input voltage | 100 - 240 |
| AC adapter output current | 2 |
| AC adapter output voltage | 12 |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Band steering | Yes |
| BeamForming | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Certification | FCC CE |
| DC-in jack | Yes |
| Depth | 144 |
| DHCP client | Yes |
| DHCP server | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Firewall security | SPI Firewall |
| Height | 64 |
| Housing colour | White |
| LED indicators | Power |
| Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Package depth | 238 |
| Package height | 110 |
| Package weight | 1.4 |
| Package width | 319 |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Security algorithms | WPA-PSK,WPA2-PSK |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 46 |
| Power supply | |
| Input voltage of the power supply | 100-240V ~ 50/60Hz 0.8A |
| Power supply output voltage | 12V ⎓ 2A |
| Equipment features | |
| Ports | 2 Gigabit Ethernet LAN/WAN ports 1 USB 2.0 port (reserved) 1 power port |
| Buttons | Reset button on the bottom of the unit |
| Power supply | 12 V/2 A |
| Dimensions | Φ144 mm × 46 mm (Φ5,7 x 1,8 inches) |
| Antenna type | 8 internal antennas per Deco unit |
| Wireless transmission characteristics | |
| Wireless standards | IEEE 802.11 ac/n/a 5 GHz IEEE 802.11 b/g/n 2,4 GHz Bluetooth 4.2 ZigBee HA1.2 |
| Frequency of operation | 2.4 GHz and 5 GHz |
| Transmission speed | 867 Mb/s in the 5 GHz band (1) 867 Mb/s in the 5 GHz band (2) 400 Mb/s in the 2.4 GHz band |
| EIRP | FCC: <30 dBm CE: <20 dBm (2,4 GHz) <23 dBm (5 GHz) |
| Wireless transmission security | WPA-PSK/WPA2-PSK |
| Advanced features | ● Router/access point mode Optional Ethernet backup link ● TP-Link Mesh technology: MU-MIMO Automatic route selection Automatic repair AP control Band control Beamforming |
| Software functions | |
| Quality of Service function | WMM |
| WAN | Dynamic IP/Static IP/PPPoE |
| Management | Local and remote management |
| DHCP | Server, client |
| Firewall protections | Firewall SPI |
| Protocols | IPv4 and IPv6 |
| Advanced features | 3-year access to antivirus software Parental control QoS function Reports Configuration assistant Compatibility with Amazon Alexa and IFTTT Interactions (for smart devices) |
| Guest Network function | 2.4 GHz guest network 5 GHz guest network |
| Other | |
| Package contents | ●Deco M9 Plus (Two devices): 2 Deco units 1 RJ45 Ethernet cable 2 power supplies |
| System requirements | iOS 9.0 or later Android 4.4 or later Bluetooth 4.0 or later |
| Working environment | Permissible operating temperature: 0℃~40℃ (32℉~104℉) Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
Ideal for homes looking for maximum Wi-Fi coverage with speed and simplicity for every user, Deco replaces the collection of routers and extenders with a smart Wi-Fi system consisting of multiple units working seamlessly together. Deco maintains one network throughout the home, so you only see one network name and need only one network password. It provides the best connection to all your devices, even when you move from room to room, whether you're playing, streaming or browsing. In a few minutes, the intuitive Deco app guides you through an easy setup process that makes every device ready to use and all your devices connected and online. Deco delivers the best possible quality of home Wi-Fi.
The Deco application allows you to switch on both at the same time. However, please note that in case of a conflict, QoS takes precedence over individual devices.
Note: Some Deco models only support QoS devices such as Deco M4 and E4 etc.
If you want to use Deco with your existing router, do the following:
Define a different network name (SSID) and password than in the current network. Running Deco with the same SSID can lead to technical problems.
If possible, disable the Wi-Fi of your existing router. You will then have one SSID for the entire network, with minimal wireless interference. This will ensure a reliable internet connection and trouble-free roaming.
If your router is a combination of a modem and a router from your ISP, contact your ISP for instructions on how to disable its wireless features.
Your ISP may also receive instructions on how to set your device in bridge mode. If so, it is suggested that you configure your router in bridge mode to avoid some technical problems, such as double NAT.
