TP-Link EAP 110 is a business-class access point. It is based on Omada software. It operates in the 802.11 b/g/n standard, at 2.4 GHz. Thanks to innovative design, the EAP110 fits perfectly into any interior, and passive PoE power supply enables fast and convenient installation of the device without using additional cables. It is a perfect proposal for an access point for business or hotel applications.
Manage hundreds of access points simultaneously using Omada Controller software. This is an ideal network solution for small and medium sized businesses. Network management will become convenient and efficient. Thanks to this software you can easily build a network of access points on your company premises.
Logging in the wireless clients via the welcome page is extremely convenient. Support for authentication with Facebook and SMS makes it even easier for consumers to access the network and creates additional opportunities for your business.
Created for EAP110 business applications, thanks to its ease of installation, PoE power supply, a convenient management software, welcome page authentication, security and business-class components, it is ideal for the most demanding environments, such as schools, hotels and large companies.
Features / filters | |
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 1x 10/100BaseTX (RJ45) |
Operating frequency | 2.4 GHz |
Wireless network standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, |
2.4 GHz | Yes |
5 GHz | No |
AC input voltage | 24 |
Access Control List (ACL) | Yes |
Antenna direction type | Omni-directional |
Antenna gain level (max) | 4 |
Antenna type | Internal |
Antennas quantity | 2 |
Cables included | AC |
Cabling technology | 10/100Base-T(X) |
Certification | CE, FCC, RoHS |
Depth | 172.3 |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 |
Frequency band | 2.4 - 2.4835 |
Height | 29.5 |
LED indicators | Power |
MAC address filtering | Yes |
Maximum data transfer rate | 300 |
Maximum data transfer rate (2.4 GHz) | 300 |
Mounting kit | Yes |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x |
Number of products included | 1 |
Number of SSID supported | 8 |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Package depth | 246 |
Package height | 69 |
Package type | Box |
Package weight | 720 |
Package width | 268 |
Placement | Ceiling, Wall |
PoE adapter included | Yes |
Power consumption (typical) | 2.8 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Quality of Service (QoS) support | Yes |
Quick start guide | Yes |
Rate limiting | Yes |
Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
Reset button | Yes |
Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SNMPv2,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
Service Set Identifier (SSID) features | Multiple SSIDs |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Syslog | Yes |
Type of device power supply | Passive PoE |
VLAN support | Yes |
Web-based management | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Width | 189.4 |
Wireless isolation | Yes |
Equipment features | |

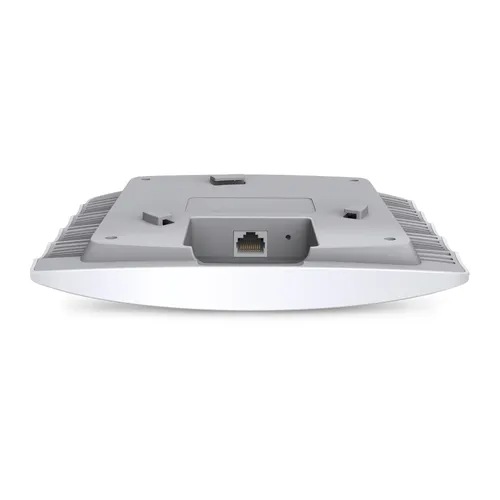

Ports | 1 Fast Ethernet port (RJ-45), supports passive PoE |
Buttons | Reset |
Power supply | Passive PoE 24 V |
Power consumption | 2,8 W |
Dimensions | 189,4 × 172,3 × 29,5 mm |
Antenna type | 2 indoor omnidirectional antennas 4 dBi |
Installation | Wall/ceiling mounting (included mounting kit) |
Wireless transmission characteristics | |
Wireless standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency of operation | 2.4 - 2.4835 GHz |
Transmission speed | 11n: up to 300 Mbps (dynamic) 11g: up to 54 Mbps (dynamic) 11b: up to 11 Mbps (dynamic) |
Receiver sensitivity | 300 M: -71 dBm@10% PER 150 M: -75 dBm@10% PER 54 M: -78 dBm@10% PER 11 M: -93 dBm@8% PER 6 M: -92 dBm@10% PER 1 M: -96 dBm@8% PER |
Wireless transmission functions | Multi-SSID(do 8 SSID) Wireless Switch Automatic channel selection Control of transmission power QoS (WMM) Capacity control Band balancing Wireless network schedule Wireless network statistics based on SSID/AP/ Client |
Wireless transmission security | Authentication by means of the welcome page Access control Filtering of MAC addresses Wireless client isolation SSID to VLAN mapping Detection of unauthorised APs Support 802.1X 64/128/152-bit WEP/WPA/WPA2-Enterprise,WPA-PSK/WPA2-PSK encryption |
Transmission power | CE: <19 dBm FCC: <21 dBm |
Management | |
Omada Cloud Access | Yes |
Omada application | Yes |
Omada Cloud Controller | Yes |
Omada Controller software | Yes |
E-mail notifications | Yes |
Diode breaker | Yes |
Access control at MAC addresses | Yes |
SNMP | v1, v2c |
System Log | Local and remote |
Telnet | Yes |
SSH | Yes |
Browser management | HTTP/ HTTPS |
Management VLAN | Yes |
Other | |
Certificates | CE, FCC, RoHS |
Package contents | EAP110 Adapter for passive PoE Power Cable Mounting kit Installation instructions |
System requirements | Microsoft Windows 10/8/7/Vista/XP |
Working environment | Permissible operating temperature: 0℃~40℃ (32℉~104℉); Permissible storage temperature: -40℃~70℃ (-40℉~158℉) Permissible air humidity: 10%~90% non-condensing; Permissible storage humidity: 5%~90% non-condensable |
