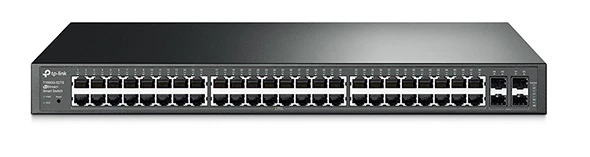

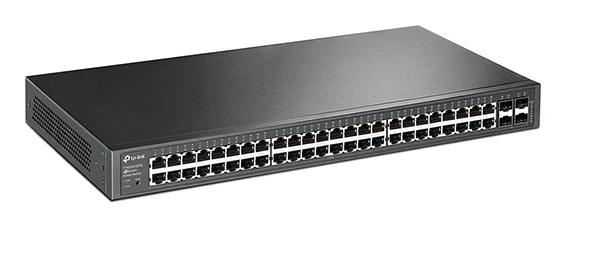

TP-LINK Gigabit Smart JetStream T1600G-52TS switch is equipped with 48 Gigabit RJ45 ports and 4 SFP slots. It provides high data transfer performance, advanced security features, QoS and powerful L2 traffic management functions. The T1600G-52TS is a cost-effective solution for small and medium businesses. The Storm Control function protects against the occurrence of a broadcast storm in Broadcast, Multicast and Unicast packets, while the QoS (Quality of Service) function for layers 2 to 4 optimizes data transmission. The device offers easy management via web browser, command line and SNMP and RMON protocols for quick configuration and reduced downtime. This switch is the ideal solution for users looking for fast and economical edge switches.
The extensive QoS functions enable simultaneous and smooth voice, video and data transmissions. The network administrator can set transmission priorities based on port priority, 802.1P and DSCP protocols, which guarantees smooth data transmission.
T1500G-8T switches are equipped with a number of second layer traffic management functions such as VLAN 802.1Q port isolation, port mirroring, STP/RSTP/MSTP, port aggregation and 802.3x flow control, which increases the number of possible applications. Maintenance functions such as loop back connection detection, cable diagnostics and IGMP snooping are also available. IGMP snooping allows intelligent multicast streaming to specific clients only, and the IGMP throttling and IGMP filtering functions effectively restrict access to multicast streaming for unauthorized users.
The T1600G-52TS is capable of supporting many IPv6 features such as dual IPv4/IPv6 stack, MLD snooping, PMTU Discovery and IPv6 Neighbor Discovery.
The T1600G-52TS Network Switch is easy to use and manage. It offers many user-friendly management options such as an intuitive graphical user interface (GUI) operated via a web browser. Support for SNMP (v1/2/3) and RMON protocols allows sending messages about unforeseen events and monitoring device status. The T1600G-52TS also supports Dual Image.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Number of LAN ports | 48x [10/100/1000M (RJ45)] , 4x [1G (SFP)] , |
Number of PoE ports | No PoE ports |
10G support | No |
AC input frequency | 50 - 60 |
AC input voltage | 100 - 240 |
ARP inspection | Yes |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Broadcast storm control | Yes |
Cables included | AC |
Certification | CE, FCC, RoHS |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,100BASE-T,1000BASE-T |
Depth | 220 |
Form factor | 1U |
Height | 44 |
Installed SFP modules quantity | 4 |
IP-MAC-Port binding | Yes |
Jumbo frames | 9216 |
Jumbo frames support | Yes |
MAC address filtering | Yes |
MAC address table | 16000 |
Management | CLI - Command Line Interface, By web browser, |
Mounting brackets included | Yes |
Multicast support | Yes |
Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Power connector | DC-in jack |
Power consumption (typical) | 32.8 |
Product colour | Black |
Quick start guide | Yes |
Rack mount kit | Yes |
Rack mounting | Yes |
Resource CD | Yes |
Rubber feet | Yes |
Security algorithms | SSH,SSL/TLS |
SSH/SSL support | Yes |
Static port security | Yes |
Storage relative humidity (H-H) | 5 - 90 |
Storage temperature (T-T) | -40 - 70 |
Switch layer | L2+ |
Switch type | Managed |
Switching capacity | 104 |
Switching layer | 2, 2+, |
Throughput | 77.4 |
Type of case | Rack (1U) |
User guide | Yes |
Width | 440 |
Equipment features | |
Standards and protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE802.3z,IEEE 802.3x,IEEE 802.1d, IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p |
Ports | 48 RJ45 ports 10/100/1000 Mb/s Autonegotiation/Auto MDI/MDIX 4 Gigabit SFP slots |
Network cabling | 10 BASE-T: Cat 3, 4 or 5 UTP cable (up to 100 m) 100 BASE-TX/1000 Base-T: UTP cable cat 5, 5e or higher (up to 100 m) 1000 BASE-X: MMF, SMF |
Fanless | Yes |
Physical security | Yes |

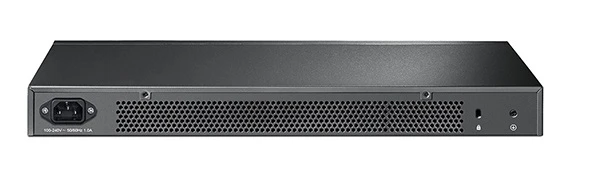

Power supply | 100~240 V AC, 50/60 Hz |
Dimensions (S x G x W) | 440 mm x 220 mm x 44 mm (17,3″ x 8,7″ x 1,7″) |
Installation | For mounting in a rack |
Max. energy consumption | 32.8 W (220 V/50 Hz) |
Amount of heat generated | 111.91 BTU/h |
Performance | |
Switching capacity | 104 Gb/s |
Packet forwarding rate | 77.4 Mp/s |
MAC address table | 16K |
Package buffer | 1.5 MB |
Jumbo frames | 9216 bytes |
Software functions | |
Quality of Service | 802.1p CoS/DSCP priority support Support for 8 priority queues The schedule of the queues: SP, WRR, SP+WRR Port/ data flow based transfer rate limitation IPv6 QoS Voice VLAN |
L2 and L2+ functions | Static Routing DHCP relay IGMP snooping V1/V2/V3 802.3ad LACP (up to 8 aggregation groups covering up to 8 ports each) Spanning Tree STP/RSTP/MSTP BPDU filtering/protection TC/Root protection Loopback call detection Flow control 802.3x LLDP, LLDP-MED |
VLANs | Support up to 4K VLAN at the same time (from among 4K VLAN identifiers) MAC VLAN/Protocol VLAN |
Access control lists | Packet filtering (L2~L4) based on source and destination MAC addresses, IP addresses, TCP/UDP ports IPv6 ACL |
Transmission security | SSH v1/v2 SSL v3/TLS v1 AAA Port Security DHCP snooping Broadcast/Multicast/Unknown-unicast Storm Control Authentication 802.1x and Radius IP-MAC-port bindings Protection against DoS attacks ARP Inspection |
IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
IPv6 applications | DHCPv6 customer Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
Management | GUI browser interface SNMP v1/v2c/v3, compatible with MIB public and TP-LINK private MIB databases RMON (groups 1, 2, 3, 9) CPU monitoring Port Mirroring Firmware update via web browser and TFTP Diagnostics: VCT test System logs, public MIB databases Dual Image |
Other | |
Certificates | CE, FCC, RoHS |
Package contents | T1600G-52TS Power Cable Installation instructions CD Assembly kit Rubber feet |
System requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux |
Working environment | Operating temperature: 0℃~40℃ (32℉~104℉); Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
Installation instructions | Download |
