The airFiber X device together with the airFiber X antenna can be used as a high quality end point, point-to-point bridge or network backhaul. AirFiber X supports slant polarization ± 45° to increase noise immunity and use SNR. The compact design allows airFiber X to be mounted on Ubiquiti antenna without the need for special tools. Compact design allows airFiber X antennas to be used in various applications, from connections between towers to PtP bridges between buildings.
Thanks to the use of simple but effective and reliable solutions, installation of the Ubiquiti AIRFIBER antenna is very easy. The product can be integrated with dedicated AirFiber X devices.

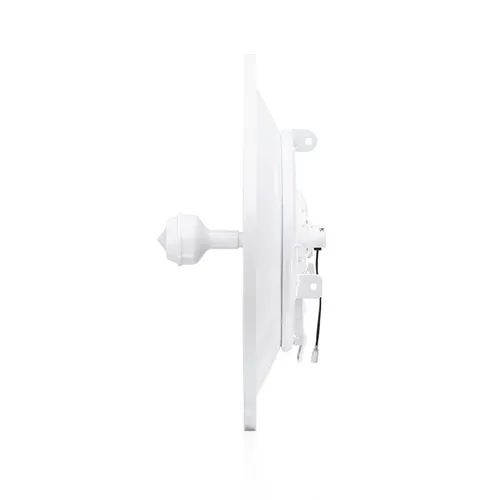

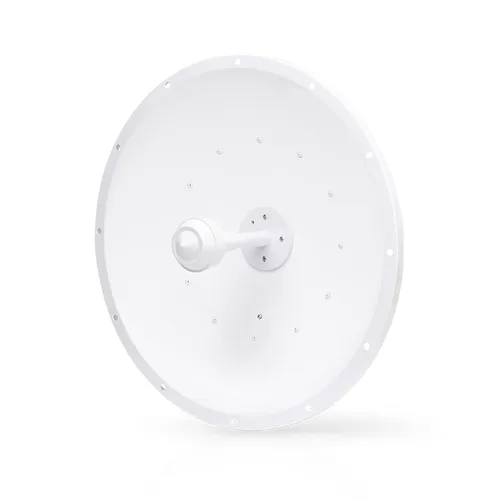

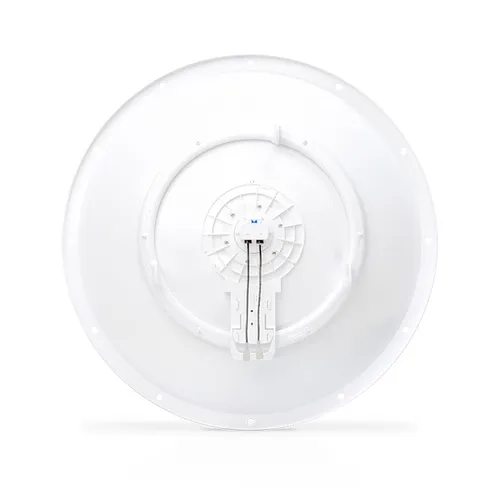

Ubiquiti AIRFIBER SLANT 45 AF-2G24-S45 is a special directional antenna in the form of a dish, operating in the 2GHz frequency band and with 24dBi gain. The radiation characteristics guarantee the highest possible signal-to-noise ratio (SNR) and high resistance to interference from other devices. The ubiquiti antenna is designed to provide users with reliable connections and high performance.
Features / filters | |
Antenna frequency | 2.4 GHz |
Antenna type | Directional |
Energy gain | 21dBi - 30dBi |
Antenna gain level (max) | 24 |
Application | Outdoor |
Compatible with brand | Ubiquiti |
Cross polarization isolation | >35 dB |
Diameter | 65 |
Frequency band | 2.3 - 2.7 |
Front-to-back ratio | 28 dB |
Horizontal beamwidth | 6.8° |
Polarization | Double linear, Dual polarization, |
Product colour | White |
Purpose | Outdoor |
Quantity per pack | 1 |
Survival wind speed | 200 |
Sustainability certificates | RoHS |
Vertical beamwidth | 6.6° |
VSWR | 1.6:1 |
Weight | 9.8 |
Basic technical parameters | |
Dimensions | 650 × 650 × 295 mm |
Weight | 9.8 kg |
Frequency band | 2.3 - 2.7 GHz |
Gain | 24 dBi |
+45° beamwidth | 6.6° (3 dB) |
-45° beamwidth | 6.8° (3 dB) |
Front-to-back ratio | 28 dB |
Maximum VSWR | 1.6:1 |
Wind load | 787 N @ 200 km/h |
Wind resistance | 200 km/h |
Polarisation | Horizontal and vertical (Dual-Linear) |
Insulation between the polarization | 35 dB Min. |
ETSI | EN 302 326 DN2 |
Installation equipment | Universal pole bracket, mounting brackets for airFiber X radio and waterproof coaxial cable for connecting the radio |
Locate a mounting point that has a clear view to the sky, and is above and as far away as possible from the antenna.
1. Attach the GPS antenna mount to the pole using the metal strap, or attach it to a wall using the appropriate fasteners.
2. Place the GPS antenna on the mount.
3. Secure the cable of the GPS antenna to the mount with a zip tie.
2.3 - 2.7 GHz frequency band
Polarization: Double line
