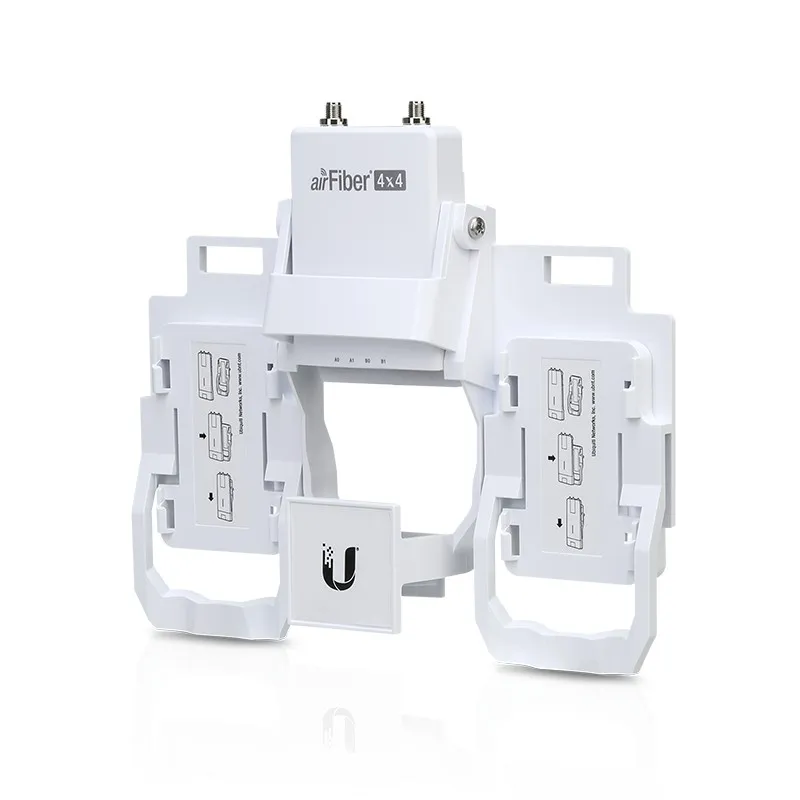

Ubiquiti AF-MPX4 | Multiplexer | airFiber 4x4 MIMO NxN
CODE: AF-MPX4 / EAN: 0810354024504
Contact
Account
Favorite
Cart
Using a common GPS synchronization reference point, airFiber X radios work consistently to provide powerful multi-gigabit bridge performance for PtP links.
Quick installation of many airFiber X radio devices on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes even adjacent channels without protective band and place them anywhere in the radio band.
The airFiber NxN multiplexer can be connected to most airFiber X or RocketDish 5 GHz antenna models. In case of any other antenna configuration you can mount the airFiber NxN multiplexer on a mast.
Mounting multiple airFiber X radio transmitters on a single antenna maximizes throughput and capacity in a compact tower housing, minimizing construction costs.
Many airFiber X devices with multiple media on multiple frequency bands provide the highest interference immunity and link redundancy.
EdgePoint offers advanced configuration features, including radio link load balancing and advanced fiber network implementation functionality.
| Basic technical parameters | |
| Dimensions | 197,5 × 240,9 × 103,2 mm |
| Weight | 0.4 kg |
| RF connectors | (2) RP-SMA Weather resistant (CH0, CH1) (4) RP-SMA Weather resistant (A0, A1, B0, B1) |
| Linear losses | 5 GHz 4.1 dB 4.7 GHz 4.5 dB |
| Supported equipment | AF-5X and AF-4X |
| Multiplex MIMO | 2 x (2x2) |
| Installation | Compatible with airFiber X/Rocket |
Enable airFiber NxN support on each radio:
1. Log into the airOS F Configuration Interface.
2. Click the Wireless tab.
3. Enter the additional Cable Loss value (dB):
- 4 (5 GHz) lub 5 (4,7 GHz) for AF-MPx4, or
- 7 (5 GHz) lub 8 (4,7 GHz) dla AF-MPx8
4. For the NxN Radio setting, select Enable.
5. Click Change, and then click Apply.
Supported devices: AF-5X and AF-4X
